Why Carbon Steel Elbows Are Still the Preferred Choice in Industrial Projects?

Industrial piping systems need fittings that can handle pressure, temperature changes, mechanical loads, and continuous operation without making the overall project unnecessarily expensive. Among the many fitting materials available today, carbon steel elbows remain a practical choice for a wide range of process, utility, energy, and general industrial piping applications. They are not used solely on a single benefit. Instead, it derives from a combination of mechanical robustness, proven production techniques, widespread availability, and compatibility with a range of standard pipe systems. But the right elbow can't be picked out of material alone. The applicability of carbon steel to a given installation is based on pipe size, wall thickness, bend radius, operating temperature, pressure, process media, connection technique, and relevant standards. For this reason, understanding the advantages and limits of the material offers engineers and buying teams a stronger foundation for making a sound selection.

Why Carbon Steel Remains a Practical Material for Industrial Elbows？

Strength That Supports Demanding Piping Systems

Carbon steel has a long history of usage in industrial plumbing since it offers a suitable blend of strength, toughness, manufacturability, and affordability. An elbow is not only a simple change of direction fitting but also a complex joint. It is a part of the pressure boundary of a piping system and should operate with straight pipe, flanges, valves, supports, and other components under the same operating circumstances.

Therefore, carbon steel elbows are often selected when the pipe system needs a strong metallic fitting with predictable mechanical qualities. As long as the material grade, wall thickness, and pressure requirements are properly suited to the service circumstances, the elbow will operate dependably in normal operation. Where a pipe may be subject to vibration, heat movement, or occasional mechanical stresses, its mechanical strength is also helpful.

Not all carbon steel elbows are created equal in terms of durability. Actual performance is very dependent on the environment and on the design of the overall pipe system. The key factors for long-term service are proper material selection, fabrication, installation, inspection, and corrosion control.

A Cost Structure That Works for Large Projects

Material cost is especially essential for an industrial project that needs hundreds or thousands of fittings. Carbon steel is manufactured on a much larger scale and has a well-established production and distribution network. Generally this makes carbon steel fittings simpler to find than many specialized alloy goods.

There are economic benefits beyond the purchasing price as well. Many projects may take advantage of existing fabrication and installation methods for carbon steel, a well-known material for fabricators, installers, maintenance teams, and distributors, rather than creating a whole new process for a less prevalent material. This familiarity may ease procurement and maintenance, especially for sites with significant existing carbon steel pipe networks.

But you still need to factor in the operational environment as well as cost. A cheaper purchase price isn’t usually greater value when the fitting needs replacing often or needs a lot of corrosion prevention. The most important comparison for industrial procurement is not the fitting price alone; it is the overall cost throughout the estimated service term.

Flexible Options for Different Piping Layouts

Industrial pipe seldom follows a straight line. Piping often has to go around machinery, structural elements, tanks, vessels, pumps, and other systems. Elbows provide the directional adjustments necessary to form these layouts while keeping a continuous pipe path.

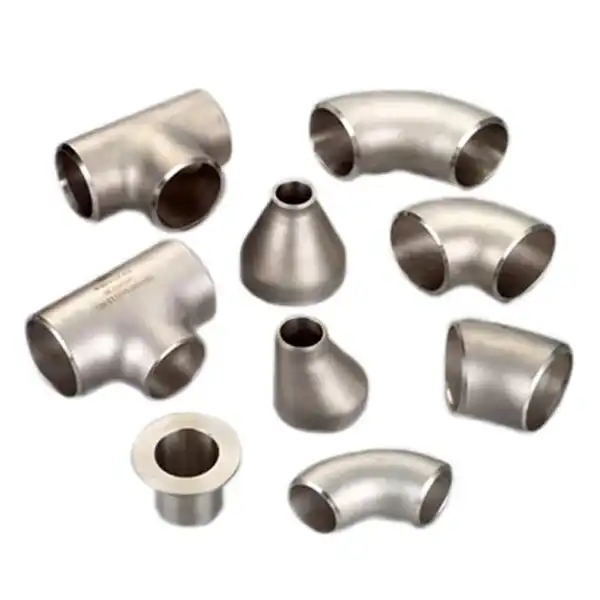

Typical configurations include 45-degree and 90-degree elbows. Long radius and short radius are used according to layout and flow needs. The choice of layout will influence the pressure drop, the area required for installation, and the overall shape of the pipe system. Engineers should approach the elbow as part of the whole pipe design, not as an isolated component, in systems where flow characteristics matter.

Several typical connecting techniques, depending on the fitting design and system specification, also work with carbon steel, such as butt welding and flanged connections. This adaptability makes the material useful for new construction as well as replacement work in existing industrial installations.

Where Do Carbon Steel Elbows Perform Well?

Process and Utility Piping Applications

A carbon steel elbow is generally used in industrial pipelines when the process medium and operating circumstances are compatible with carbon steel. Common applications include water, air, steam, hydrocarbons, and a range of utility or process services, although the precise applicability must always be checked against the fluid parameters and design circumstances.

For example, in a manufacturing facility, elbows are used to route utility lines around equipment or to link various areas of a process system. In energy-related facilities they may be part of pipe networks that are subject to pressure and temperature variations. The widespread usage of carbon steel in such circumstances highlights its well-known importance in industrial infrastructure.

The key is that application appropriateness is the mix of material grade and service circumstances. Carbon steel elbows that are acceptable for one system may not be suited for another system transporting a more aggressive fluid or operating at significantly different temperature and pressure conditions.

Performance Under Temperature and Pressure Changes

Industrial pipe is often subject to varying temperatures, not a single, constant temperature. Thermal expansion and contraction may be caused by starting and stopping equipment, changes in process loads, and seasonal operating conditions. Therefore, the elbow must be suitable for the movement and forces predicted in the pipe system.

When the carbon steel is properly chosen for the material grade and design requirements, it may operate well throughout many typical industrial temperature ranges. But, strictly speaking, there is no one universal maximum temperature that can be applied to all carbon steel elbows. The allowable pressure and temperature are a function of the material grade, wall thickness, design code, and the specification of the fitting.

This is why engineers must consider the pipe system as a whole and its pressure-temperature needs, rather than just picking an elbow based upon a generic statement about the temperature capabilities of carbon steel. A correctly described fitting form is a significantly more solid foundation for system design.

Resistance to Mechanical Wear and Impact

Piping in industrial facilities might be subject to vibration, inadvertent contact during maintenance, machine movement, and other mechanical forces. Carbon steel has mechanical qualities that make it a good choice when a strong metallic fitting is needed in an environment.

Also interesting is its behavior in applications involving fluids with suspended solids or other abrasive particles. However, the resistance of an elbow to erosion or abrasion relies on the velocity and nature of the medium as well as wall thickness, elbow shape, and operating circumstances. In the case of extreme erosion, engineers may need to consider unique materials, thicker sections, or other preventative measures.

Carbon steel is not, however, considered to be uniformly wear-resistant in the more pragmatic perspective. Rather, it recognizes that the choice of the material should be representative of the real process of deterioration in the pipe system.

How Does Carbon Steel Compare With Other Elbow Materials?

Carbon Steel and Stainless Steel Serve Different Priorities

Where corrosion resistance is the primary need, stainless steel elbows offer a certain advantage. Some types of stainless steel may give superior corrosion resistance to traditional carbon steel and therefore are desirable for use in harsh settings, sanitary applications, and services where surface quality is of specific importance.

But when the industrial environment doesn’t need the increased corrosion resistance benefits of stainless steel, carbon steel is sometimes a more inexpensive choice. For big pipe projects this material cost differential might become rather considerable. Carbon steel, then, might be a logical choice when mechanical performance and project costs are more essential than maximal resistance to corrosive conditions.

It is not right to simply state that one substance is superior to the other. Stainless steel is not inherently required for all industrial systems, and carbon steel should not be chosen for corrosive service just because it is cheaper. The selection should be based on the process medium, temperature, pressure, maintenance plan, and the estimated lifetime.

Carbon Steel Compared With Alloy Steel

Alloy steel elbows are designed for uses where the addition of alloying elements is necessary to provide superior qualities, such as strength at elevated temperatures or resistance to certain operating conditions. For example, certain grades of chrome-moly are utilized in demanding temperature and pressure applications where standard carbon steel may not deliver the performance needed.

Carbon steel is nevertheless desirable for many less specialized applications because of its well-established supply chain and relatively cheaper production cost. It can provide satisfactory service if the working circumstances are within the capability of the chosen grade of carbon steel.

The issue for engineering teams is thus not whether alloy steel is more technically advanced, The most relevant issue to ask is whether an alloy steel elbow's enhanced performance is indeed necessary for the application. If the service circumstances do not warrant the added cost of material, carbon steel may be a more inexpensive choice.

Carbon Steel and Non-Metallic Alternatives

Where low weight or resistance to certain corrosive conditions is necessary, PVC, HDPE, fiberglass-reinforced plastics, and other non-metallic materials may be useful. Some grades of them are more resistant to specific chemicals. They are lighter in weight, and this might make them easier to handle and install.

Metallic fittings are still necessary for greater mechanical loads, higher temperatures, pressure, or impact resistance. Carbon steel might consequently still be the preferred option in instances where a stiff metallic pipe system is required.

Again, there is no single winner. Carbon steel elbows may be more suited for a heavy-load industrial utility system, whereas non-metallic materials may be the best choice for a specific chemical service. Comparing materials with the actual operational needs, rather than relying on the reputation of a material per se, gives more dependable results.

What Should Engineers Check Before Ordering Carbon Steel Elbows?

Material Grade and Applicable Specification

Before purchasing an elbow, the material designation should be confirmed against the project specification and applicable piping requirements. “Carbon steel” describes a broad material category rather than one single grade with identical properties.

The selected grade should match the design temperature, pressure, fluid service, and relevant engineering requirements. Depending on the project, documentation such as a material certificate or certificate of compliance may also be required to verify that the supplied fitting corresponds to the specified material.

This step is especially important for safety-critical or pressure-containing piping because material traceability can be part of the project's quality documentation.

Size, Wall Thickness, Radius, and Connection

Dimensional compatibility is equally important. The elbow must match the pipe outside diameter and wall thickness requirements, while the bend radius must suit the piping layout. A 90-degree elbow may fit the directional requirement but still be unsuitable if the available installation space or flow considerations require a different radius.

The connection design also needs to match the rest of the system. Butt-welded elbows, for example, are commonly used in fabricated piping systems, while flanged arrangements may be selected when easier disassembly is required.

For replacement projects, engineers should also compare the existing fitting dimensions and connection details rather than relying only on the nominal pipe size. Small differences in specifications can create installation problems even when the nominal size appears correct.

Corrosion Protection and Surface Requirements

Carbon steel does not have the inherent corrosion resistance associated with stainless steel, so environmental exposure needs to be considered during specification. Depending on the application, corrosion control may involve coatings, painting systems, insulation management, material allowances, or other protective measures.

A coating should be regarded as part of the corrosion-control strategy rather than as a way to make carbon steel identical to stainless steel. Its effectiveness depends on the coating system, surface preparation, application quality, operating environment, and maintenance condition.

For outdoor piping, buried systems, marine environments, or chemical services, the corrosion-control requirements should therefore be defined before the elbow is ordered.

When Might Another Material Be a Better Choice?

Carbon steel is widely useful, but it is not automatically suitable for every industrial project. If the process medium is highly corrosive, if exceptionally high-temperature strength is required, or if the system has strict hygienic or contamination-control requirements, another material may provide a better technical solution.

The same principle applies to specialized services involving unusual chemical exposure, severe erosion, extreme temperatures, or demanding pressure conditions. In these cases, engineers may consider stainless steel, alloy steel, lined fittings, or non-metallic alternatives depending on the service.

Recognizing these limitations does not weaken the case for carbon steel. In fact, it makes the selection process more credible. Carbon steel elbows remain popular because they provide a practical balance for many conventional industrial systems, not because they are the right answer to every piping challenge.

Conclusion

Carbon steel elbows remain a preferred option for many industrial piping projects because they combine dependable mechanical performance with practical availability and competitive cost. Their established use across process, utility, energy, and manufacturing systems also means that engineers, fabricators, and maintenance teams are familiar with their installation and service requirements.

Their advantages should nevertheless be considered within the context of the application. Carbon steel is not inherently corrosion-proof, and its allowable temperature and pressure performance depends on the selected grade and design conditions. When these factors are properly evaluated, carbon steel elbows can provide a durable and economical solution for a wide range of industrial piping requirements.

For a new installation or replacement project, the best approach is to select the elbow according to the actual service conditions and applicable specifications. By checking material grade, dimensions, bend radius, wall thickness, connection type, corrosion protection, and required documentation before purchasing, project teams can make better use of the strengths of carbon steel while avoiding applications where another material would be more suitable.
