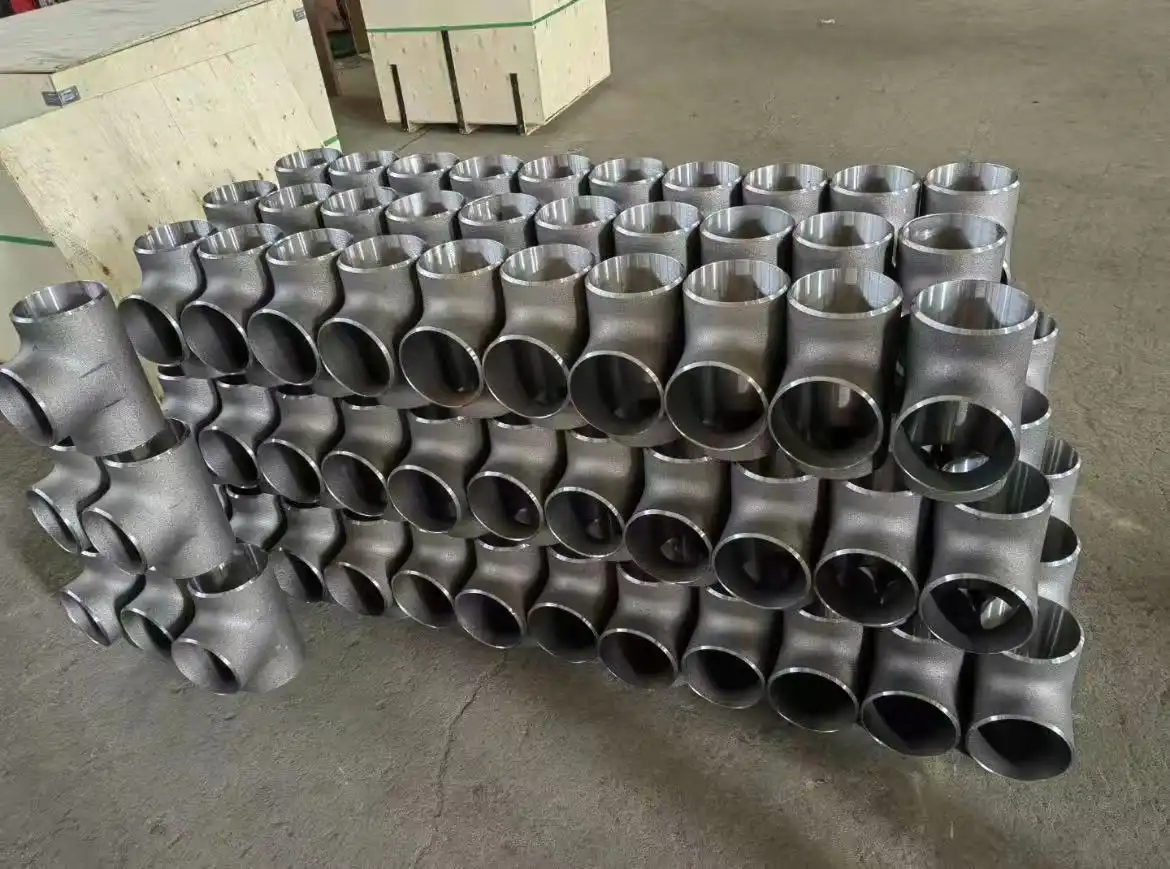

Why International Standards Ensure Reliable Pipe Tee Connections?

In a modern piping system, a tee is not simply a fitting that creates a branch connection. It becomes part of a pressure boundary that must accommodate fluid flow, mechanical loads, temperature changes, and the requirements of the surrounding piping system. For this reason, selecting reliable pipe tees requires more than checking whether a fitting appears to have the correct shape or nominal size. All relevant product standards, material specifications, dimensions, tolerances, inspection requirements, and service conditions should be viewed together. International and generally accepted industrial norms offer a single technical reference for manufacturers, engineers, contractors and buyers. Standards like ASME B16.9, MSS SP-75 and ISO 3419 handle several elements of butt welding fittings such as dimensions, tolerances, materials, testing and quality criteria. For example, ASME B16.9 is for factory-made wrought butt-welding fittings. MSS SP-75-2025 is for high-strength wrought butt-welding fittings for severe oil and gas transmission and distribution applications. ISO 3419 defines the dimensions, tolerances, common steel grades and quality standards for non-alloy and alloy steel butt-welding fittings. So the significance of these standards is not that they instantly make every connection secure in every situation. Their larger importance is that they provide stated standards that can be verified, recorded, and compared. If manufacturers build tees to an adequate standard, and customers check the applicable paperwork, the uncertainty associated in obtaining and integrating fittings may be greatly eliminated.

How Standardized Dimensions Support Consistent Pipe Tee Connections?

Controlling Geometry Across Different Manufacturers

One of the biggest practical benefits of standardised fittings is dimensional uniformity. A tee has numerous significant geometric characteristics, including outer diameter, wall thickness, center-to-end proportions, branch measurements, and end preparation. Where these features vary widely across manufacturers, it might lead to a more difficult installation and a fitting that does not line with the bordering pipe or fittings.

Recognised product standards provide dimensional specifications and tolerances so producers have a known foundation for manufacturing and inspection. For instance, ASME B16.9 is primarily related to factory-made wrought butt-welding fittings and offers a standardised structure for these items. ISO 3419 also gives dimensions and tolerances for steel butt-welding fittings such as equal and reducing tees.

This standardisation is especially important for big projects when fittings might be from several manufacturing batches or vendors. A project engineer need not depend exclusively on a manufacturer’s internal dimensions practice when judging the acceptability of a tee. Rather, the appropriate standard offers a consistent basis for technical evaluation, inspection, and acceptance.

Improving Alignment and Weld Preparation

Dimensional control also determines what occurs once the fitting arrives at the construction site. Tees for butt-welding must be aligned to the pipe to which they are to be welded before welding, and discrepancies in end size or preparation might mean extra fitting work. Consistent geometry assists fabricators in producing more predictable joint preparation and lowers the likelihood that a fitting must be modified unexpectedly before installation.

This does not mean that a standards-compliant tee may be placed without engineering evaluation. Pipe wall thickness, material grade, welding technique, pipe schedule, and project parameters still need to be in compliance. Standardised dimensions, however, provide a dependable starting point from which those technical assessments may be undertaken.

Making International Sourcing More Predictable

Standardisation is especially useful when pipe fittings are bought across national boundaries. A manufacturer in a different nation may produce the tees for a consumer in one country. The project itself may be created according to the engineering procedure of a third location. In the absence of a recognised technical reference, the purchaser would need to assess a vast variety of manufacturer specific measurements and manufacturing requirements.

A recognised standard helps decrease such ambiguity by providing both parties a common technical language. Rather than using a broad description such as “carbon steel tee” when sourcing pipe tees, the purchaser may specify the appropriate standard, material grade, nominal size, wall thickness, and desired inspection documents. This gives technical communication precision and may add significance to supplier comparison.

Why Material Specifications Matter to Pipe Tee Reliability?

Matching Material Requirements to Service Conditions

A tee may have the correct dimensions and still be unsuitable if its material does not match the service conditions. Piping systems can operate under different temperatures, pressures, fluid compositions, and environmental conditions, so material selection must be considered as part of the overall engineering design.

International and industry standards help define material requirements rather than leaving material selection entirely to individual manufacturers. ISO 3419, for instance, identifies commonly used grades of non-alloy, low-alloy, and alloy steels for the covered fittings and establishes associated quality requirements. EN 10253-2 also addresses steel grades, chemical composition, mechanical properties, dimensions, inspection, testing, and documentation for carbon and alloy steel butt-welding fittings.

For a purchaser, this distinction is important. The phrase “steel tee” provides very little technical information by itself. A complete procurement specification may need to identify the material standard, grade, nominal size, wall thickness, manufacturing requirements, and inspection requirements. Standards make these specifications more precise and easier to verify.

Controlling Manufacturing and Mechanical Properties

Material integrity is also connected with manufacturing processes and heat treatment. Depending on the applicable product standard, requirements may address chemical composition, tensile properties, toughness, heat treatment, inspection, or other production controls. MSS SP-75-2025, for example, includes requirements covering dimensions, tolerances, ratings, testing, materials, chemical and tensile properties, heat treatment, notch toughness, manufacture, inspection, certification, and marking.

These requirements are particularly relevant for fittings used in demanding pipeline applications. A tee is subjected to more than internal pressure alone. Its branch geometry can influence local stress distribution, while temperature changes, external loads, vibration, and operating cycles can place additional demands on the component. Material and manufacturing requirements therefore provide an important part of the technical basis for evaluating the fitting.

At the same time, compliance with a fitting standard should not be confused with complete system qualification. The design engineer must still confirm that the selected tee is appropriate for the pressure, temperature, fluid, pipe material, and applicable piping code of the project.

How Testing and Inspection Reduce Uncertainty?

Using Defined Testing Requirements

Testing becomes much more useful for pipe tees when the test method and acceptance requirements are clearly defined. If every manufacturer uses completely different inspection practices, buyers may have difficulty comparing results or determining whether a product satisfies the same technical expectations.

Product standards can establish requirements for inspection and testing so that manufacturers have a defined basis for demonstrating conformity. EN 10253-2, for example, specifies inspection and testing requirements as well as inspection documents for the fittings within its scope. MSS SP-75 also includes testing, inspection, certification, and marking requirements.

For procurement teams, this creates a more practical quality-control process. Instead of judging a tee only from its appearance, the purchaser can review the applicable inspection records and documentation against the purchase specification. This approach provides stronger evidence that the supplied product corresponds to the specified requirements.

Traceability Through Marking and Documentation

Traceability is another important part of standardized manufacturing. When a tee carries appropriate markings and is accompanied by relevant inspection documentation, the purchaser has more information available for identifying the product, verifying its specification, and maintaining project records.

This is particularly useful for large industrial projects where hundreds or thousands of fittings may be purchased over an extended period. If a question later arises about a particular batch, material grade, or inspection result, traceable records can make it easier to determine which products were supplied and what documentation was associated with them.

Standardized documentation also improves communication between manufacturers, distributors, contractors, and end users. A purchasing department can review documents against a known standard, while a quality team can check whether required information has been provided before the fittings are released for installation.

Why Pressure Ratings Need to Be Considered With the Full System?

Avoiding Oversimplified Pressure Claims

Pressure rating is one of the areas where technical articles about tees can easily become misleading. It is not enough to say that a tee “meets a pressure standard” and therefore can safely handle any pressure below a particular number. The actual allowable operating condition depends on the applicable standard, material, dimensions, temperature, design code, and system configuration.

Some standards distinguish different categories or requirements according to the intended service. EN 10253-2, for example, distinguishes between fittings with a reduced pressure factor and fittings intended for use at full service pressure. The same standard also notes that the selection of the appropriate fitting and thickness remains the responsibility of the relevant equipment or system designer.

This is why responsible procurement should focus on whether the tee is suitable for the specific design conditions rather than relying on a generic pressure number. A component that is appropriate for one piping system may not automatically be appropriate for another system operating at a different temperature, fluid condition, or design pressure.

Considering Temperature and Operating Conditions

Temperature can also influence material performance and allowable pressure conditions. A piping system operating at elevated temperature has different design considerations from one operating close to ambient temperature. Low-temperature service can introduce additional toughness requirements, while cyclic operation can place repeated stresses on the fitting and surrounding welds.

For this reason, standards and project specifications for pipe tees should be considered together. The fitting standard establishes product requirements, while the applicable piping design code and engineering calculations determine how the component is used within the overall system. This distinction makes the discussion of standards more technically accurate and helps purchasers avoid treating product certification as a substitute for engineering design.

How Standards Improve Procurement and Supplier Evaluation?

Creating a Common Technical Specification

For international buyers, one of the strongest advantages of standards is the ability to create a clear purchasing specification. Rather than requesting a “high-quality tee,” a purchaser can identify the fitting type, applicable standard, nominal size, material grade, wall thickness, end configuration, inspection requirements, marking requirements, and documentation requirements.

This gives the manufacturer a clearer production target and gives the purchaser a more objective basis for evaluating the quotation. It also reduces the possibility that two suppliers interpret the same product description differently.

Comparing Manufacturers on More Than Price

Standardization can also change the way buyers evaluate suppliers. Price is important, but a low initial quotation may not represent the lowest overall procurement cost if the supplier cannot provide consistent dimensions, complete inspection records, traceability, or reliable delivery documentation.

A manufacturer with established production and inspection procedures can provide more than the fitting itself. The manufacturer can support the purchasing process with material documentation, inspection records, product marking, packaging information, and other technical records required by the project.

This is especially important for international projects because the purchaser may not be able to inspect every manufacturing step personally. A clear standard and complete documentation create a stronger bridge between the factory's production process and the buyer's quality-control requirements.

What Buyers Should Verify Before Ordering Pipe Tees？

The most effective use of international standards begins before the purchase order is issued. Buyers should first identify which product standard applies to the required fitting and confirm that the standard is appropriate for the intended service. The material specification, dimensions, wall thickness, pressure and temperature conditions, inspection requirements, and documentation should then be aligned with the project specification.

It is also important to confirm the revision or edition of the standard required by the project. Standards can be revised, and the applicable edition may depend on the contract, engineering specification, or regulatory requirements. For example, MSS currently lists SP-75-2025 as its active standard for high-strength wrought butt-welding fittings, while ISO lists ISO 3419:1981 as a current confirmed standard for its defined scope.

The buyer should also make sure that the manufacturer's claim of compliance is supported by appropriate documentation. A product label alone is not a substitute for reviewing the applicable material and inspection records. When the project has specific requirements for testing, certification, marking, or traceability, those requirements should be agreed upon before production begins.

This approach is more reliable than treating an international standard as a general quality label. The real benefit comes from connecting the standard to the actual purchase specification and then verifying that the delivered fittings conform to that specification.

Conclusion

International standards play an important role in making pipe tees connections more consistent, verifiable, and predictable across different manufacturers and markets. By establishing requirements for dimensions, tolerances, materials, testing, inspection, documentation, and marking, standards provide a common technical framework for manufacturers and purchasers. ASME B16.9, MSS SP-75, ISO 3419, and EN 10253-2 demonstrate how different standards address specific categories of butt-welding fittings and define requirements appropriate to their respective scopes.

However, standards should be viewed as part of the engineering and quality-control process rather than as an automatic guarantee of system performance. Reliable pipe tee connections depend on selecting the correct product standard, matching material and dimensions to the application, reviewing inspection documentation, and ensuring that the fitting is compatible with the applicable piping design requirements. For manufacturers such as Cangzhou Oudi Pipe Manufacture Co., Ltd., applying recognized standards throughout production and quality control can provide customers with a clearer basis for evaluating product consistency and technical suitability. When manufacturers, engineers, contractors, and purchasers work from the same technical requirements, international sourcing becomes easier to manage and the reliability of the resulting piping system can be better controlled. For more information about our products and how we adhere to international standards, please contact us at oudi-04@oudiguandao.com.

FAQ

1. What are the main benefits of international standards for pipe tees?

International standards ensure dimensional compatibility, material integrity, and consistent pressure ratings, leading to more reliable and safer piping systems.

2. How do international standards facilitate global trade in pipe tees?

By creating a common language and specifications, these standards allow for easier integration of components from different manufacturers worldwide.

3. Why is material integrity important in pipe tees?

Material integrity ensures that pipe tees can withstand intended operating conditions, enhancing the longevity and reliability of piping systems.

4. How do standardized pressure ratings prevent system failures?

They provide consistent testing methodologies, incorporate safety factors, and offer application-specific ratings to ensure pipe tees can reliably handle required pressures.

References

1. International Organization for Standardization. (2021). "ISO 5251:2021 - Pipe fittings - Tees of unalloyed and alloyed steel for butt welding."

2. American Society of Mechanical Engineers. (2019). "ASME B16.9-2018 Factory-Made Wrought Buttwelding Fittings."

3. European Committee for Standardization. (2020). "EN 10253-2:2020 Butt-welding pipe fittings - Part 2: Non alloy and ferritic alloy steels with specific inspection requirements."

4. American Petroleum Institute. (2018). "API Specification 5L - Specification for Line Pipe."

5. British Standards Institution. (2017). "BS EN 10216-2:2013+A1:2019 - Seamless steel tubes for pressure purposes. Technical delivery conditions."

6. International Association of Plumbing and Mechanical Officials. (2021). "Uniform Plumbing Code (UPC)."
