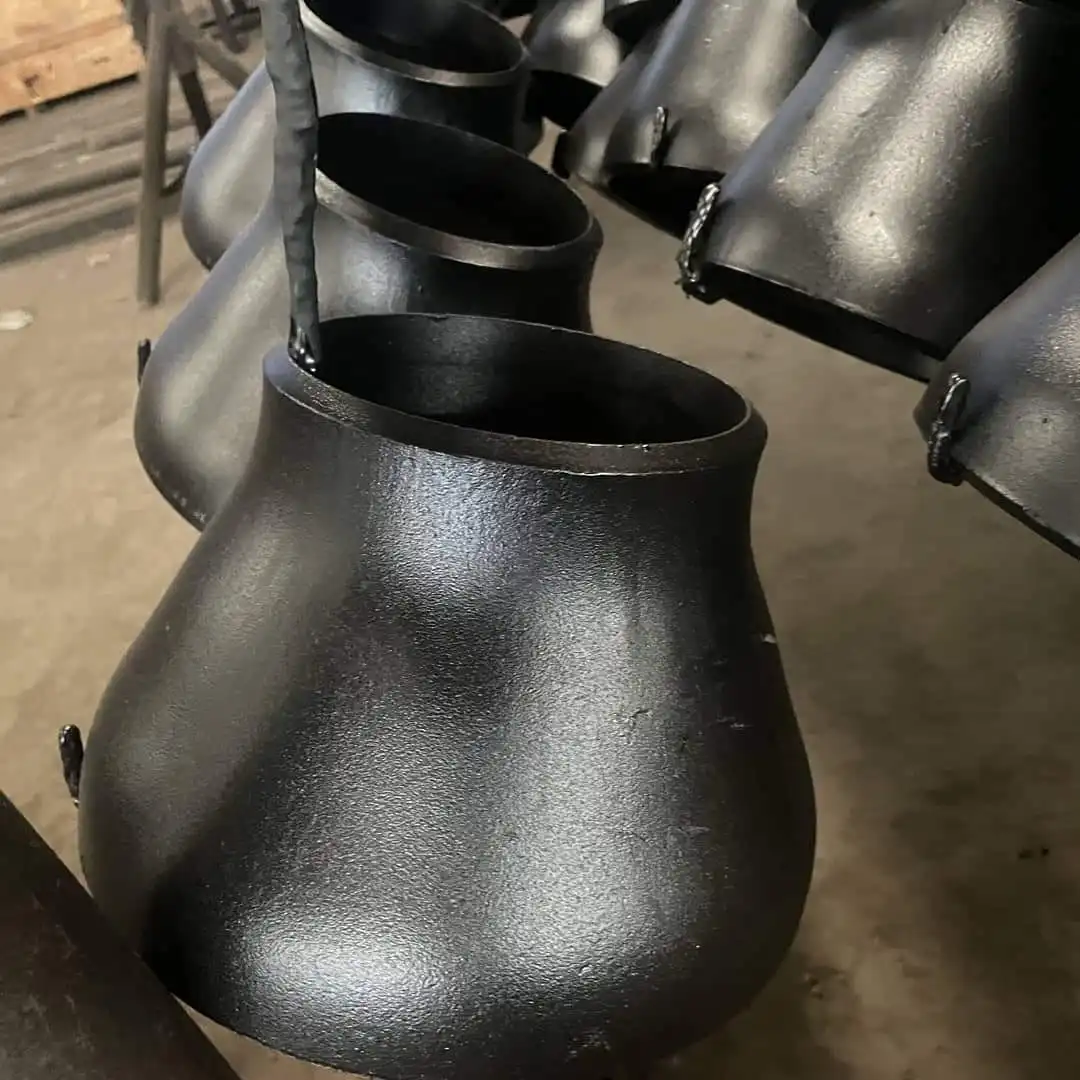

A Comparison of ANSI and DIN Standard Reducer Fittings

In industrial piping systems, reducer fits are used to connect pipes with different nominal sizes while maintaining a practical transition between them. Although reducers are relatively simple components, selecting the wrong dimensional or material standard can create problems during installation, welding, inspection, and future maintenance. For this reason, engineers and purchasing teams often need to compare the requirements used in ANSI/ASME-based projects with those used in DIN/EN-based projects. The comparison is not simply a matter of deciding whether ANSI or DIN is better. These systems developed within different technical and regulatory environments, and their requirements can differ in dimensions, tolerances, material specifications, inspection requirements, and documentation. ASME B16.9, for example, covers factory-made wrought buttwelding fittings, while European projects may use the DIN EN 10253 series for butt-welding pipe fittings. For buyers, engineers, and project managers, the most important question is therefore whether the selected reducer matches the piping system around it. The following comparison explains the major differences, common areas of confusion, and practical factors that should be checked before placing an order.

How ANSI/ASME and DIN/EN Reducer Standards Are Structured？

ANSI Is Not the Same as an Individual Reducer Fitting Standard

One of the most common misunderstandings is to treat ANSI as though it were a single reducer fitting specification. ANSI provides a framework for American national standardization, while many specific piping requirements are developed and published by organizations such as ASME.

For factory-made wrought butt-welding fittings, ASME B16.9 is particularly important. The standard covers requirements related to dimensions, tolerances, materials, ratings, testing, and marking for applicable fittings. ASME's standards catalog identifies B16.9 as “Factory-Made Wrought Buttwelding Fittings,” while B16.5 has a different scope covering pipe flanges and flanged fittings.

This distinction matters when purchasing reducers. Describing a product simply as an “ANSI reducer” does not provide enough technical information. A proper specification should identify the applicable ASME or other dimensional standard, material specification, size range, wall thickness, end preparation, and inspection requirements.

DIN Requirements Have Evolved Into the DIN EN System

DIN standards are closely associated with German standardization, but many piping requirements used in Germany and across Europe are now published through the European EN framework and adopted nationally as DIN EN standards.

DIN 2616 is a good example of why checking the current standard edition is important. DIN Media lists DIN 2616:1964 as withdrawn, with later documents and the DIN EN 10253 series replacing earlier requirements.

For modern projects, engineers should therefore avoid specifying an old DIN document simply because it is familiar. The applicable current DIN EN standard should be confirmed against the project's design code, material requirements, and procurement specification. DIN EN 10253-2, for example, addresses butt-welding pipe fittings made from non-alloy and ferritic alloy steels with specific inspection requirements, with the current German publication incorporating EN 10253-2:2021+A1:2025.

This is especially important for international projects, where an old DIN designation may appear on a supplier's catalog even though the project specification requires a newer DIN EN standard.

Where ANSI/ASME and DIN/EN Reducers Differ？

Dimensions and Tolerances Require Direct Verification

The dimensional difference between two reducers cannot be determined simply by looking at the words ANSI and DIN. The applicable standard, nominal size, reducer type, wall thickness, and manufacturing requirements all influence the final dimensions.

ASME B16.9 provides dimensional requirements for factory-made wrought butt-welding fittings, ensuring the reducer fits within the specified dimensional framework. In a typical American-based piping project, the purchaser may therefore specify a reducer according to ASME B16.9 together with a separate material specification such as an ASTM specification.

European projects may instead reference a DIN EN 10253 standard, depending on the material and inspection requirements. This means that two reducers with the same nominal pipe sizes may still require careful dimensional checking before they are treated as interchangeable.

Important dimensions include the outside diameter, wall thickness, overall length, end preparation, and the geometry of the transition between the larger and smaller ends. For eccentric reducers, the orientation of the offset is also important because it can affect drainage, pump suction arrangements, and the elevation of connected piping.

A procurement team should therefore compare actual dimensional requirements rather than assume that a nominal size designation guarantees interchangeability.

Pressure and Temperature Should Be Evaluated as a System

Pressure rating is another area where the original ANSI-versus-DIN comparison was too simplistic. It is not technically sound to claim that one standard is automatically suitable for higher pressure than the other.

A reducer's allowable operating conditions depend on several factors, including material grade, wall thickness, diameter, design temperature, manufacturing method, applicable piping code, and the way the component is incorporated into the complete piping system.

ASME B16.9 is a fitting standard, while other ASME documents may govern the associated piping system, equipment, or flanged connections. ASME itself notes that B16-series fitting standards are used together with other ASME standards and piping codes.

European projects follow a similar principle. A DIN or DIN EN fitting specification should not be interpreted in isolation from the applicable design code and project requirements.

For a high-pressure or high-temperature application, the correct approach is to confirm the design pressure and temperature first, identify the applicable piping code, and then verify that the reducer's material, dimensions, wall thickness, and manufacturing specification satisfy those requirements. This approach is much more reliable than choosing a reducer simply because it carries an ANSI or DIN designation.

Material Specifications Are Often Different

Material selection is one of the areas where ANSI/ASME and DIN/EN projects can show substantial differences.

American projects commonly combine a dimensional fitting standard with ASTM material specifications. Depending on the application, reducers may be manufactured from carbon steel, stainless steel, alloy steel, or other materials suitable for the service conditions.

European projects may use EN material designations and DIN EN product standards. The material designation may therefore look different even when the intended mechanical performance is broadly comparable.

However, similar material names do not automatically mean that two materials are equivalent. Chemical composition, yield strength, tensile strength, impact properties, heat treatment, and inspection requirements may differ. A purchasing specification should therefore identify the exact material grade rather than ask only for “carbon steel” or “stainless steel.”

This is particularly important for low-temperature service, corrosive environments, sour service, and applications involving cyclic loading. In these situations, material selection should be connected to the actual operating environment instead of being based solely on the fitting's standard designation.

Which Reducer Standard Should Your Project Use?

Start With the Piping Design Code

The first question should not be “Which reducer is cheaper?” It should be “Which standard does the piping design require?”

If the project drawings and piping specifications are based on ASME standards, an ASME B16.9 reducer may be the appropriate choice for a factory-made butt-welding fitting. If the project is designed around European standards, the applicable DIN EN standard may be required instead.

This approach also helps avoid a common procurement mistake: selecting a reducer based only on availability. A fitting may appear dimensionally similar to the required component but still have different tolerances, material documentation, inspection requirements, or end dimensions.

The project specification should always take priority when determining whether a reducer fits over a supplier's general catalog description.

Check Connections With Pipe, Flanges, Valves, and Other Components

A reducer does not work independently. It becomes part of a larger piping assembly.

Before ordering, engineers should verify how the reducer connects to the pipe on both sides and whether nearby components follow the same dimensional system. This becomes particularly important when an international project combines equipment from different suppliers.

For example, a project may use European equipment but American-designed piping components, or an existing plant may contain a mixture of standards after years of expansion. In such cases, dimensional compatibility must be checked rather than assumed.

The same principle applies to welding. The reducer's outside diameter, wall thickness, end preparation, and material should be compatible with the connected pipe and the project's welding procedure. A mismatch may increase fabrication work or require additional transition components.

Consider Availability and Replacement Requirements

Standard selection also has a long-term procurement impact.

If a plant operates mainly with ASME-based components, using an isolated DIN reducer may make future replacement more complicated. The same problem can occur in a DIN/EN-based plant if an unusual ASME fitting is introduced without considering local supply channels.

For critical process lines, spare-part availability should be considered at the design stage. A slightly different purchasing price may have little significance if a replacement fitting becomes difficult to source during an unexpected shutdown.

Local supplier experience, material certification, inspection capability, and traceability can be just as important as the nominal fitting price.

Practical Advantages and Limitations of Each Approach

When an ANSI/ASME-Based Reducer May Be the Better Choice？

ANSI/ASME-based piping systems are common in North American industrial applications and in many international oil, gas, chemical, power, and process projects. Their major advantage is the broad availability of established specifications, compatible components, and engineering experience.

ASME B16.9 provides a recognized dimensional basis for factory-made wrought butt-welding fittings, making it easier to specify reducers within an established piping system.

However, using an ASME-based reducer does not eliminate the need to check the material and design conditions. The fitting standard alone does not determine whether a component is suitable for every pressure, temperature, or service environment.

When a DIN/EN-Based Reducer May Be More Appropriate？

DIN/EN-based reducers are particularly relevant to projects designed around European standards. Their use can simplify engineering coordination when pipes, fittings, valves, equipment, and documentation are already specified within the same system.

The modern DIN EN 10253 framework also provides different parts addressing different material and inspection requirements. For example, DIN EN 10253-2 addresses non-alloy and ferritic alloy steel butt-welding fittings with specific inspection requirements.

The main limitation is not that DIN/EN fittings are inherently weaker or less suitable. Rather, problems can arise when a DIN/EN component is introduced into an existing ASME-based system without confirming compatibility. The same issue applies in the opposite direction.

Common Mistakes When Comparing ANSI and DIN Reducers

Assuming Similar Nominal Sizes Mean Identical Dimensions

Nominal size is a useful designation, but it does not tell the entire story.

Two reducers identified with comparable pipe sizes can still differ in outside diameter, wall thickness, length, end preparation, or dimensional tolerance, so confirming whether the reducer fits the required piping system is essential. For this reason, purchasing teams should request the manufacturer's dimensional drawing and compare it with the project specification before approving a substitution.

Using an Old DIN Designation Without Checking Its Status

The continued use of withdrawn standards is another avoidable problem. DIN Media confirms that DIN 2616 has been withdrawn and replaced through later standards, including the DIN EN 10253 series.

If a supplier quotation references an older DIN number, the buyer should ask whether the project specification actually permits that document. This simple check can prevent documentation problems during inspection or commissioning.

Choosing by Material Name Alone

“Carbon steel reducer” is not a complete purchasing specification.

The material grade, applicable material standard, heat treatment, inspection level, and required certification should all be clear. For demanding service, impact testing, hardness requirements, non-destructive examination, or additional documentation may also apply.

A professional supplier should be able to provide the relevant material certificate and inspection documentation rather than relying on a generic material description.

Treating Standards as Marketing Labels

A fitting should not be considered better merely because its catalog says ANSI, ASME, DIN, or EN.

Standards exist to define technical requirements and create consistency. The real question is whether the supplied product conforms to the specific standard and project requirements that apply to the service.

For buyers, this means looking beyond the label and checking dimensions, materials, manufacturing method, inspection, marking, certification, and traceability.

How to Specify a Reducer Correctly？

A clear purchasing specification should provide enough information for the manufacturer to identify the required product without making assumptions.

The description should normally identify the reducer type, nominal sizes, material grade, applicable dimensional standard, wall thickness or schedule where relevant, end connection, quantity, inspection requirements, and documentation requirements.

The reducer type also matters. A concentric reducer is commonly used where the pipe centerline needs to remain aligned, while an eccentric reducer is often selected where maintaining a particular top or bottom elevation is important. The correct orientation should be stated for eccentric reducers when the installation requires it.

For demanding applications, the specification may also need to include impact testing, NDE requirements, heat treatment, PMI, hydrostatic or other testing requirements, and material certification.

The more clearly these requirements are defined before quotation, the lower the risk of receiving a product that is technically similar but unsuitable for the actual installation.

What Buyers Should Ask a Reducer Manufacturer？

A reliable manufacturer should be able to explain which standard is being used and how the product meets the project requirements.

Instead of asking only for a unit price, buyers should confirm the dimensional standard, material standard, manufacturing method, size range, wall thickness, inspection requirements, and available certificates. If the project uses a mixture of standards, the supplier should also confirm whether the proposed reducer is a direct match or a special requirement.

For large industrial orders, it is useful to request drawings before production. Reviewing the drawing early can reveal differences in overall length, outside diameter, wall thickness, or end preparation before the components reach the job site.

Documentation is equally important. Depending on the project, buyers may need a material certificate, dimensional inspection report, non-destructive testing records, heat-treatment records, or other quality documents.

This level of communication is especially valuable when reducers are being supplied for oil and gas, chemical processing, power generation, water treatment, or other systems where installation errors can lead to costly delays.

Conclusion

The comparison between ANSI and DIN reducer fittings should not be reduced to a simple question of which standard is stronger or more precise. The better choice depends on the piping design, applicable code, material requirements, pressure and temperature conditions, connection dimensions, inspection requirements, and long-term maintenance strategy.

For American and many international projects, ASME B16.9 is an important reference for factory-made wrought butt-welding fittings, including cases where a reducer fits the specified dimensional requirements, while European projects may use the applicable DIN EN 10253 requirements. It is also important to recognize that older DIN documents such as DIN 2616 may have been withdrawn and replaced, so the current project specification should always be checked rather than relying on an outdated designation.

The most reliable purchasing strategy is to select the reducer according to the piping system in which it will operate. Confirm the current standard, verify the dimensions, match the material grade, check the design conditions, and make sure the reducer can be welded and connected correctly to the surrounding components.

When these details are confirmed before production, the difference between ANSI/ASME and DIN/EN becomes much easier to manage. Instead of treating the standards as competing labels, engineers and buyers can use them as technical frameworks for selecting a reducer that fits the actual requirements of the project. For master direction on selecting the right reducer fittings for your venture, consider coming out to Cangzhou Oudi Pipe Fabricate Co., Ltd. at oudi-04@oudiguandao.com.

References

1. American Society of Mechanical Engineers. (2018). ASME B16.9: Factory-Made Wrought Buttwelding Fittings.

2. Deutsches Institut für Normung. (2019). DIN 2616: Reducer Fittings for Welding - Types and Dimensions.

3. Smith, J. R. (2020). Comparative Analysis of ANSI and DIN Piping Standards. Journal of Industrial Engineering, 45(3), 78-92.

4. Johnson, L. M., & Thompson, R. K. (2021). Global Trends in Industrial Piping Standards. International Journal of Pressure Vessels and Piping, 188, 104-118.

5. European Committee for Standardization. (2017). EN 10253: Butt-Welding Pipe Fittings.

6. Brown, A. D. (2019). Material Selection for Reducer Fittings in High-Pressure Applications. Materials Science and Engineering: A, 750, 138-152.
