ANSI vs ASME Standards: Which Applies to Pipe Tee Fittings?

In industrial piping, standards are not simply labels placed on a product specification. They define how a component is dimensioned, manufactured, tested, marked, and selected for service. This is especially important when purchasing pipe tee fittings, because a tee must match the connected pipe, welding requirements, material specification, and the design code governing the complete piping system. ANSI and ASME are typically used simultaneously when talking about American pipe standards. This may give the impression that there are competing standards and that engineers have to pick between them. That's not exactly how the system works. ANSI, the American National Standards Institute, is not a standards creator itself. It lays the groundwork for accepting American National Standards and certifying organisations that generate them. ASME, the American Society of Mechanical Engineers, produces technical standards for mechanical and pipeline applications. ANSI states that the organization does not directly create technical requirements, but recognises standards established via its certified standards process. Many typical tee configurations are factory-produced wrought buttwelding fittings. The essential document is ASME B16.9. The current version is ASME B16.9-2024, Factory-Made Wrought Buttwelding Fittings. It provides overall dimensions, tolerances, ratings, tests, and labelling for fittings from NPS 1/2 through NPS 48, or DN 15 through DN 1200. That difference offers the engineers and the buying teams a much clearer response to the issue asked in this article. Rather than seeing ANSI and ASME as two conflicting product standards, it is better to understand the purpose of ANSI approval, the technical criteria of ASME, and the particular standard that relates to the kind of tee you are buying.

Understanding the Relationship Between ANSI and ASME

ANSI Provides the National Standards Framework

ANSI and ASME play diverse roles in the U.S. standards scene. Accredited standards developers generate the technical papers, and ANSI supervises and controls elements of the American National Standards process. ANSI is neither a standards maker, product certifier, testing facility, nor government organization, it said. It utilises American National Standards which meet the necessary consensus and procedural requirements.

This is important when reading a specification for pipe fittings, since the designation on a standard might include information about the technical developer and the national approval status. A historical name like ANSI/ASME B16.9 does not imply that ANSI and ASME jointly created the technical specifications. It shows the link of the ASME-produced document to the ANSI American National Standard approval mechanism.

This difference resolves most of the seeming disagreement between “ANSI” and “ASME” for the engineer studying procurement documentation. In practice, the issue is not typically whether to buy an ANSI fitting or an ASME fitting. The question is, what precise technical standard and edition does the project need?

ASME Develops the Technical Requirements for B16.9

ASME’s B16 committee develops standards for valves, flanges, pipe fittings, gaskets, and other related components used in pressure services. The latest version of the ASME standard for Factory-Made Wrought Buttwelding Fittings is B16.9–2024.

B16.9 is very crucial for proper pipe tee fittings. The standard specifies requirements to enable fittings from various certified manufacturers to comply with the same dimensions and technical expectations. It is not a comprehensive design code for pipe systems; it is limited to dimensions, tolerances, ratings, testing, and markings.

This is why a specification such as “tee, ASME B16.9” is much more beneficial for procurement than a generic statement such as “ANSI standard tee.” The former identifies a specific technological standard; the latter does not specify the whole product requirements by itself.

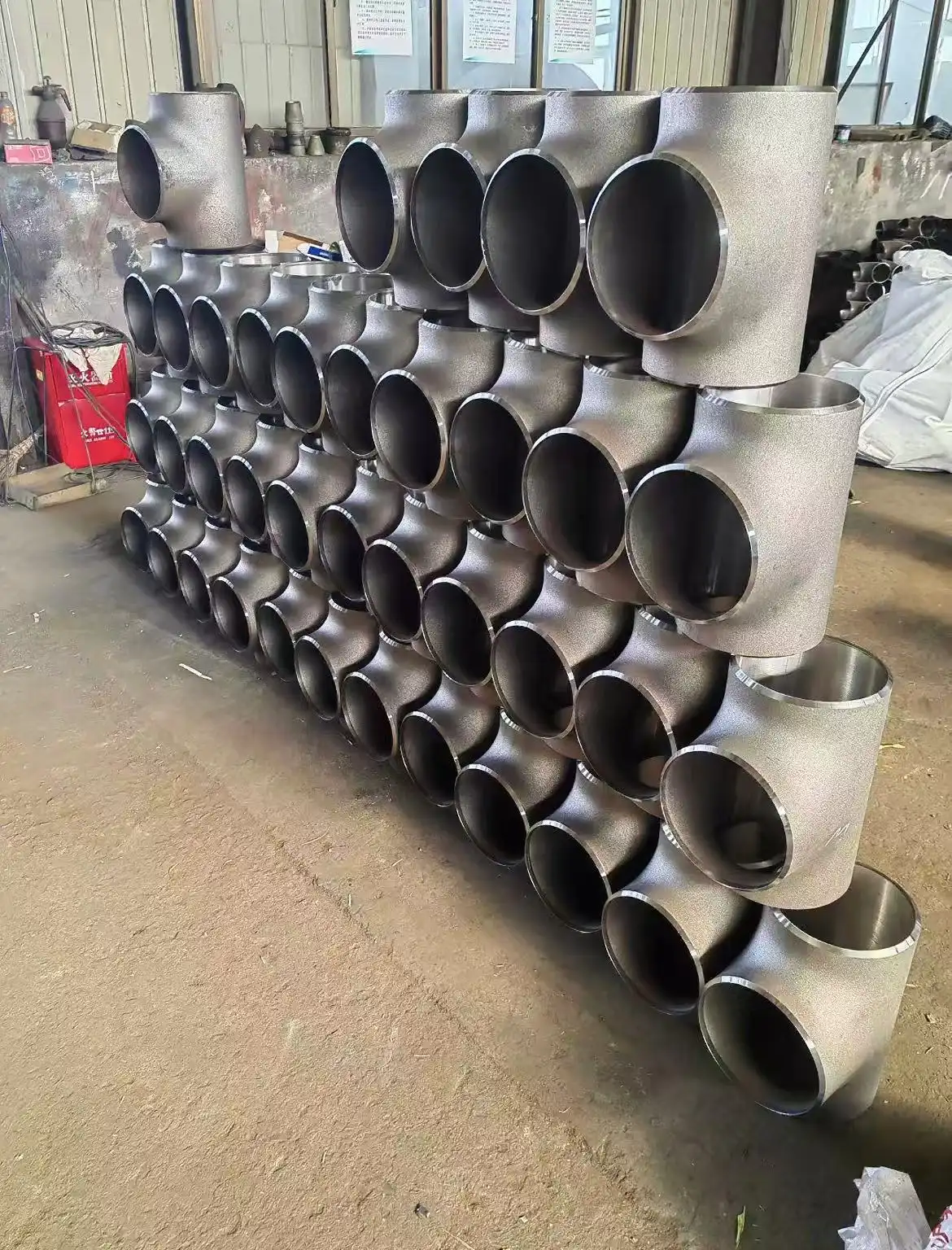

What ASME B16.9 Means for Pipe Tee Fittings?

Scope, Dimensions, and Manufacturing Requirements

ASME B16.9 covers shop-fabricated wrought buttwelding fittings for sizes NPS 1/2 to NPS 48. This standard covers fittings of the wall thickness producible and discusses dimensional and manufacturing parameters required for use in pipe systems. It also contains standards for ratings, testing, and grading.

Dimensional consistency is especially critical for pipe tee fittings as they link a branch line to a run. The outer diameter, wall dimensions, center-to-end dimensions, and welding ends all affect how the fitting interacts with the pipe to which it is attached. Even if the nominal pipe size is right, there may be complications in the manufacture due to a dimensional mismatch.

B16.9 is consequently considered a product standard, not a full specification for all aspects of a completed pipe system. Material chemistry, mechanical properties, heat treatment, impact requirements, and other material-specific requirements may be provided in applicable ASTM or other material specifications. Fabrication and system design requirements may be governed by the project specification or an applicable ASME B31 code.

Material and Application Requirements Must Be Checked Separately

The shortcoming of the original article is that it implies that ASME B16.9 itself is a full material-selection method for all applications. In reality, the fitting standard must be considered in combination with the material specification and service circumstances.

For instance, a carbon steel tee may be built to the dimensional specifications of B16.9, but the material requirements are governed by the corresponding material standard. For stainless steel and alloy steel applications, extra paperwork and material controls may be required depending on the project.

This difference is crucial for pipe tee fittings in process plants, power plants, refineries, chemical plants, and other industrial systems. A tee that is dimensionally B16.9 may not be acceptable for all pressures, temperatures, corrosion environments, or process fluids.

The procurement specification should thus include the needed material grade, nominal size, wall or timeline requirements, relevant fitting standard, testing requirements, and any project-specific paperwork. Treating B16.9 as the sole criteria would leave major technical problems unsolved.

Why ANSI Class Ratings Should Not Be Confused With B16.9

Class 150 and Class 300 Belong to a Different Context

A common source of confusion is the use of terms such as Class 150, Class 300, and Class 600 when discussing piping components. These designations are strongly associated with ASME B16.5, which covers pipe flanges and flanged fittings and establishes pressure-temperature ratings for those products. ASME's B16 documentation specifically identifies pressure classes including 150, 300, 400, 600, 900, 1500, and 2500 within the applicable B16.5 scope.

That does not mean that every tee manufactured under B16.9 should be described using the same class-rating terminology. A buttwelding tee and a flanged fitting are governed by different product standards, and their ratings should be interpreted according to the applicable standard and the piping design conditions.

This is an important correction to the common “ANSI versus ASME pressure rating” explanation. ANSI does not have one universal pressure-rating methodology that can simply be compared with an ASME methodology. The actual rating requirements depend on the particular standard being applied.

Pressure, Temperature, and Wall Thickness Still Matter

Although B16.9 should not be reduced to a Class 150 or Class 300 classification, pressure and temperature remain fundamental considerations when selecting a tee. The suitability of a fitting depends on the applicable standard, material, dimensions, design conditions, and the governing piping code.

The same nominal size does not mean that two fittings have identical service capability. Wall thickness, material properties, operating temperature, design pressure, corrosion allowance, joining method, and other engineering parameters can affect the suitability of the component.

For this reason, engineers should not select pipe tee fittings solely by nominal diameter. The tee needs to be evaluated as part of the complete piping system. ASME B16.9 itself is intended to be used with other ASME B16 standards and with other ASME standards, including the B31 piping codes.

How B16.9 Fits Into a Complete Piping Specification?

Product Standards and Piping Codes Serve Different Purposes

An important distinction for procurement teams is the difference between a product standard and a system design code. ASME B16.9 establishes requirements for factory-made wrought buttwelding fittings. ASME B31.3, B31.1, and other B31 codes address broader piping-system design and application requirements.

ASME's current materials identify B31.1-2024 as the Power Piping code and B31.3-2024 as the Process Piping code.

A project may therefore specify a tee according to B16.9 while requiring the overall piping system to comply with B31.3. These standards are complementary rather than competing documents. B16.9 defines important characteristics of the fitting itself, while the applicable B31 code governs the broader engineering framework in which the fitting is installed.

This relationship is particularly useful when reviewing technical submittals. A supplier may state that a tee complies with ASME B16.9, but the buyer still needs to confirm whether the material, dimensions, welding ends, inspection documentation, and other requirements satisfy the project specification and governing piping code.

The Edition of the Standard Should Be Confirmed

Another detail that can affect procurement is the edition of the standard. ASME B16.9-2024 revised the previous B16.9-2018 edition, and ANSI's records show the 2024 edition as an approved revision of ANSI/ASME B16.9-2018.

That means a purchase order should ideally identify the required edition instead of simply stating “ASME B16.9.” Whether a project permits the latest edition or requires a specific edition depends on the engineering specification, contract documents, jurisdiction, and project approval process.

For long-term projects, this point can prevent unnecessary disputes between the manufacturer, contractor, and end user. A supplier should know exactly which edition applies before manufacturing begins, particularly when the project documentation was prepared several years before the purchase order.

Choosing the Right Standard for Pipe Tee Fittings

Start With the Fitting Type and Connection Method

The first question should be whether the tee is actually within the scope of ASME B16.9. B16.9 is specifically a standard for factory-made wrought buttwelding fittings. If the fitting uses another connection method or falls into another product category, a different standard may be applicable.

This is why the phrase “ANSI tee” is too broad to be a useful purchasing specification. The engineer should identify the fitting type, connection method, nominal size, material, and applicable product standard before requesting quotations.

Once those parameters are established, the manufacturer can provide documentation for pipe tee fittings against a clearly defined technical requirement rather than interpreting a vague reference to ANSI standards.

Match the Tee to the Piping System

After identifying the product standard, the next step is to check the complete piping system. The tee must be compatible with the connected pipe and the design conditions established for the line.

For process piping, the applicable design code may be ASME B31.3. For power piping, B31.1 may be relevant. Other services may be subject to different codes, specifications, or regulatory requirements. The product standard alone does not determine the complete engineering suitability of the fitting.

This approach is especially important for projects involving high temperature, high pressure, corrosive media, cyclic service, or demanding fabrication requirements. In these applications, procurement should be connected closely with engineering review rather than treating the fitting as a generic commodity.

Verify Documentation Before Ordering

A reliable purchasing process should also establish what documentation is required before the order is placed. Depending on the project, buyers may need material certificates, dimensional inspection records, heat numbers, test reports, traceability documents, and other quality records.

For pipe tee fittings, these records can be important because the physical product is only one part of compliance. The documentation allows the purchaser to verify that the supplied fitting corresponds to the specified material and manufacturing requirements.

A capable manufacturer should also be able to clarify the applicable standard edition and explain how its product documentation corresponds to the purchase specification. This is far more useful than simply stating that a product is “ANSI certified” without identifying the actual standard.

What Should Buyers Look for From a Pipe Tee Manufacturer?

When selecting a supplier, the most useful question is not whether the company claims to manufacture ANSI or ASME fittings. Instead, buyers should determine whether the manufacturer has experience producing the required fitting type to the specified standard and whether it can provide the documentation needed for the project.

For a carbon steel or alloy steel buttwelding tee, the buyer should confirm the applicable B16.9 requirements together with the specified material standard and project requirements. Dimensions, wall thickness, material grade, heat treatment where applicable, marking, testing, and traceability should all be aligned with the purchase specification.

Manufacturing capability is also important for larger sizes and custom configurations. A supplier may technically manufacture tees, but that does not automatically mean it can consistently produce the size range, wall thickness, material combination, and inspection documentation required for a particular project.

For international procurement, buyers should also consider packaging, export documentation, inspection arrangements, production lead time, and the supplier's ability to maintain consistent quality across repeat orders. These practical factors can have as much impact on project performance as the standard designation itself.

Conclusion

ANSI and ASME should not be treated as two competing product standards when selecting pipe tee fittings. ANSI provides an important national standards framework and approves American National Standards through its consensus-based process, while ASME develops technical standards such as B16.9 for factory-made wrought buttwelding fittings. ANSI itself states that it is not a standards developer, which makes this distinction important when interpreting an ANSI/ASME designation.

For factory-made wrought buttwelding tees within its scope, ASME B16.9 is the key product standard to review. The current edition is B16.9-2024, which covers overall dimensions, tolerances, ratings, testing, and markings for fittings from NPS 1/2 through NPS 48.

The most important point for engineers and procurement specialists is that B16.9 does not replace the piping-system design code, material specification, or project requirements. A correctly specified tee requires the product standard, material requirements, operating conditions, applicable piping code, and documentation requirements to work together.

For buyers sourcing carbon steel and other industrial pipe fittings, Cangzhou Oudi Pipe Manufacture Co., Ltd. can be considered as a supplier when the project requires factory-made fittings and supporting manufacturing documentation. The most effective purchasing process is to provide the supplier with the required standard edition, fitting size, material grade, wall thickness or schedule, connection requirements, inspection requirements, and project documentation before production begins. That gives both the manufacturer and purchaser a clear technical basis for confirming that the supplied tee matches the intended piping application. For more information or inquiries, please contact us at oudi-04@oudiguandao.com.

FAQ

1. What is the main difference between ANSI and ASME standards for pipe tee fittings?

The main difference lies in their approach to pressure ratings, with ASME offering more detailed and material-specific ratings compared to ANSI's class-based system.

2. Why has ASME B16.9 become the dominant standard for pipe tee fittings?

ASME B16.9 has gained dominance due to its comprehensive approach, regular updates, industry recognition, and integration with other ASME standards.

3. How do temperature considerations differ between ANSI and ASME standards for pipe tee fittings?

ASME standards provide more detailed temperature-pressure relationships, while ANSI standards typically use specific temperature points with interpolation required.

4. Are ANSI standards still relevant for pipe tee fittings?

While ASME standards are more prevalent, some industries and regions still reference ANSI standards, making it important to be familiar with both.

References

1. American Society of Mechanical Engineers. (2018). ASME B16.9-2018: Factory-Made Wrought Buttwelding Fittings.

2. Nayyar, M. L. (2000). Piping Handbook (7th ed.). McGraw-Hill Education.

3. American National Standards Institute. (2017). Understanding the Relationship between ANSI and ASME Standards.

4. Antaki, G. A. (2003). Piping and Pipeline Engineering: Design, Construction, Maintenance, Integrity, and Repair. CRC Press.

5. Escoe, A. K. (2006). Piping and Pipelines Assessment Guide. Elsevier Science.

6. Smith, P. (2015). Piping Materials Guide: Selection and Applications. Elsevier Science.
