How Buyers Should Read ASME B16.9 Pipe Tee Markings and Traceability?

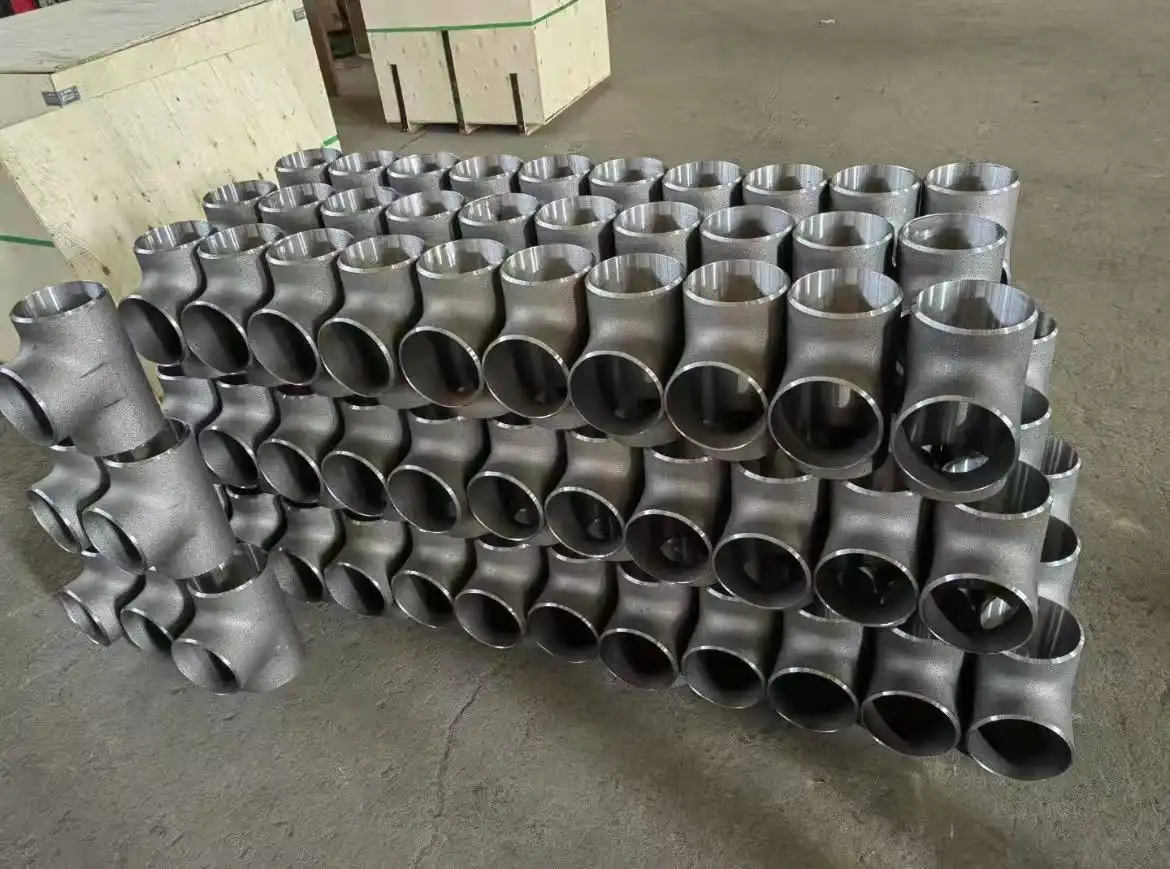

Start With the Product Marking
Marking is one of the areas covered by ASME B16.9, so buyers should examine the physical identification on the fitting and compare it with the purchase order and supporting documentation. The exact marking information required for a particular fitting should be evaluated against the applicable edition of the standard and the purchaser's specification.
The purpose of this check is not merely to confirm that the product carries an “ASME” reference. The more useful question is whether the marking allows the fitting to be identified and connected with its manufacturing and material records.
For example, when receiving an ASME B16.9 Pipe Tee, the purchaser may need to compare the manufacturer's identification, fitting designation, size, material-related information, and heat or batch reference with the information shown on the material test documentation. If the physical fitting and paperwork cannot be connected, traceability becomes much harder to demonstrate.
Traceability Links the Tee to Its Material Records
Traceability is particularly valuable when purchasing large quantities of fittings for a project. A pipe tee may pass through several stages before installation, including receiving inspection, warehouse storage, fabrication, welding, and final system documentation. If the fitting's identification is lost at any stage, the buyer may have difficulty proving which material certificate belongs to the installed component.
A good traceability system allows the buyer to follow the relationship between the finished fitting and its underlying material documentation. Depending on the material specification and project requirements, that documentation may include heat numbers, chemical composition, mechanical test results, heat-treatment information, and inspection records.
This is why procurement teams should not simply ask whether a supplier can provide a certificate for an ASME B16.9 Pipe Tee, but should ask whether the certificate can be tied to the actual fittings being supplied.
What Documentation Should Buyers Request From a Supplier?
Review the Material and Product Information Together
A supplier's documentation package should be reviewed as a connected set rather than as individual documents. The product description on the quotation should correspond with the purchase order, the purchase order should correspond with the manufacturer's documentation, and the documentation should correspond with the physical markings on the fittings.
Material information deserves particular attention. The purchaser should confirm that the material grade stated in the quotation and order documentation corresponds with the material specification required by the project. The relevant material standard may be ASTM, ASME, or another specification specified by the engineering document, depending on the application.
A material test certificate can provide evidence of chemical and mechanical properties when those tests are required by the applicable material specification. However, buyers should avoid assuming that one generic certificate proves every requirement for every project. The required documentation depends on the material, purchase specification, inspection plan, and applicable codes.
Check the Applicable Edition of B16.9
The edition of the standard should also be clear. ASME currently lists B16.9-2024 as the active edition of the Factory-Made Wrought Buttwelding Fittings standard.
This matters because technical requirements can change between editions. If the purchase order specifically identifies an edition, the supplier's documentation should be reviewed against that edition rather than assuming that any reference to “B16.9” is sufficient.
Buyers working on long-running projects should also check whether the engineering specification refers to a fixed edition or requires the latest applicable edition. That decision should come from the project documents rather than from the supplier's quotation.
How Can Buyers Verify an ASME Compliance Claim?
Ask the Supplier to Explain What Is Being Certified
One of the most effective verification steps is also one of the simplest: ask the supplier to state precisely what its ASME claim refers to.
If the supplier says that the ASME B16.9 Pipe Tee is “ASME B16.9 certified,” the purchaser can ask whether this means the product is manufactured in accordance with ASME B16.9, whether the company holds a separate ASME certification relevant to the project, or whether the claim refers to another code or conformity assessment program.
This question prevents an important misunderstanding. ASME maintains formal certification programs, but its certification marks are associated with specific conformity assessment activities and scopes. ASME's own materials explain that self-declaring compliance with an ASME code is different from having the applicable ASME mark under an ASME conformity assessment program.
A buyer should therefore avoid accepting a logo, certificate image, or marketing statement as the sole basis for approval.
Use Independent Inspection When the Project Requires It
Third-party inspection can provide an additional level of confidence, particularly for large orders, critical services, unfamiliar suppliers, or projects with formal inspection and test plans.
The inspector may review material documentation, verify markings and dimensions, witness selected tests, examine manufacturing records, and confirm that the supplied fittings correspond with the purchase specification. The exact scope should be agreed before production or shipment so that inspection activities are aligned with the project requirements.
Third-party inspection does not replace the purchaser's technical specification. Instead, it provides an independent check that the supplier's documented claims and physical products are consistent.
Material Testing and Quality Documentation for ASME B16.9 Pipe Tees
Chemical and Mechanical Properties
Material verification is an important part of fitting procurement, but the required tests should be linked to the applicable material specification and project requirements.
Chemical analysis can be used to verify that the supplied material corresponds to the specified grade. Mechanical testing may establish properties such as tensile strength, yield strength, and elongation where required by the applicable material specification. Hardness testing may also be specified for certain materials or projects.
The buyer should therefore compare the material certificate with the exact grade ordered rather than simply checking whether the supplier has provided a document called a “test certificate.”
For critical projects, it is also useful to confirm whether the material certificate covers the actual heat or batch represented by the supplied fittings. This is where traceability becomes valuable, because a technically correct certificate is not useful if it cannot be connected to the physical products delivered to the site.
Dimensional Inspection
Dimensional conformity is particularly relevant to an ASME B16.9 Pipe Tee because the standard establishes overall dimensions and tolerances for covered fittings.
A dimensional inspection may involve checking the relevant outside diameters, center-to-end dimensions, wall thickness where specified, overall geometry, and other dimensions required by the applicable standard or purchase specification.
The exact inspection points should follow the applicable edition of B16.9 and the project's technical requirements. For buyers, the key issue is whether the inspection report demonstrates that the fittings supplied are consistent with the dimensions specified for the ordered size and configuration.
This is especially important when fittings such as an ASME B16.9 Pipe Tee are purchased for prefabricated piping assemblies. Dimensional deviations that appear small on an individual fitting can become more difficult to accommodate when multiple components are being fitted together in a shop fabrication environment.
Nondestructive Examination Should Be Evaluated Against the Project Specification
Nondestructive examination is another area where buyers should avoid making blanket assumptions. Methods such as ultrasonic examination, radiographic examination, magnetic particle testing, or liquid penetrant testing may be required depending on the material, manufacturing route, project specification, applicable code, or purchaser's inspection requirements.
It is therefore better to ask, “Which NDE methods are required by this purchase specification?” rather than simply assuming that every ASME B16.9 Pipe Tee must undergo the same NDE program.
If an NDE report is included in the documentation package, buyers should confirm that the report identifies the tested products or heat/batch information and that the examination method and acceptance criteria are appropriate to the governing requirements.
Common Procurement Mistakes to Avoid
Do Not Treat an ASME Reference as a Complete Quality Certificate
A supplier can reference ASME B16.9 while still needing to satisfy additional material, inspection, testing, and documentation requirements from the purchase order. Buyers should therefore read “B16.9” as a technical reference and then determine what additional requirements apply to the actual project.
This approach is more reliable than assuming that one standard automatically covers every aspect of the fitting's manufacture and suitability.
Do Not Accept Untraceable Documentation
A certificate without a clear connection to the supplied fittings has limited value. If the material certificate identifies one heat number but the fitting marking cannot be connected to that heat, the buyer should ask the supplier to clarify the traceability before accepting the shipment.
The same principle applies to inspection reports. The report should make it possible to determine what was inspected and how the results relate to the ordered products.
Do Not Confuse Product Compliance With System Compliance
A fitting can meet the applicable requirements of B16.9 while the complete piping system still needs to satisfy another governing code, design specification, welding procedure, or regulatory requirement.
ASME itself notes that B16.9 is intended to work in conjunction with other ASME standards, including B31 piping codes.
For that reason, buyers should evaluate the fitting within the context of the complete piping design rather than treating B16.9 as the only compliance requirement.
Conclusion
Understanding ASME B16.9 Pipe Tee requirements is more useful than simply looking for the words “ASME certified” on a supplier's quotation. ASME B16.9 is a product standard for factory-made wrought buttwelding fittings, and the current B16.9-2024 edition addresses dimensions, tolerances, ratings, testing, and markings for covered fittings from NPS 1/2 through NPS 48.
For buyers, the most important step is to distinguish standard compliance from formal ASME conformity assessment. A reliable purchasing review should connect the physical pipe tee with its markings, material documentation, applicable standard edition, inspection records, and project requirements. Where additional certification or independent inspection is specified, those requirements should also be verified rather than assumed.
The strongest purchasing decisions come from suppliers that can provide clear technical information and maintain consistent traceability from raw material through finished fitting. By checking these details before shipment, buyers can reduce documentation gaps, improve receiving inspection, and select ASME B16.9 Pipe Tees with greater confidence for demanding piping projects. For more information or to discuss your specific needs, please contact us at oudi-04@oudiguandao.com.
FAQ
1. What is ASME B16.9 certification?
ASME B16.9 certification is a standard for butt-welding fittings, including pipe tees, ensuring they meet specific dimensional, material, and performance requirements.
2. How can I verify the authenticity of ASME B16.9 certification?
You can verify certification by examining the documentation, contacting ASME directly, or employing third-party inspection services.
3. What material tests are required for ASME B16.9 Pipe Tees?
Required tests include chemical composition analysis, mechanical property testing, and non-destructive examinations.
4. Why is traceability important for ASME B16.9 Pipe Tees?
Traceability ensures accountability and allows for tracking of the entire manufacturing process, aiding in quality control and troubleshooting.
