Applications of Carbon Steel Elbows in Oil, Gas, and Water Pipelines

Pipelines rarely run in a perfectly straight line. They need to change direction around equipment, buildings, valves, tanks, roads, and changes in elevation while still maintaining the pressure and flow requirements of the system. This is where carbon steel elbows become essential. Elbows are often used in oil transmission, gas distribution, water supply, petrochemical facilities, and industrial process pipes to change the direction of pipelines without additional couplings. Picking an elbow is more than just picking a 45° or 90° fitting for pipeline engineers and buying teams. The material grade, outer diameter, wall thickness, bend radius, connection technique, operating temperature, pressure, and corrosion environment all impact the suitability of an elbow for a given application. A fitting suitable for a low-pressure water line may not be suitable for a high-pressure oil or gas pipeline. The versatility of carbon steel, including its mechanical strength, availability, weldability, and affordability, has maintained its popularity. Carbon steel elbows may serve reliably for extended periods of operation if the material grade and protective system are chosen to suit the service circumstances. In this post we discuss where carbon steel elbows are used in oil, gas, and water pipelines and what technical criteria should be addressed during selection and installation.

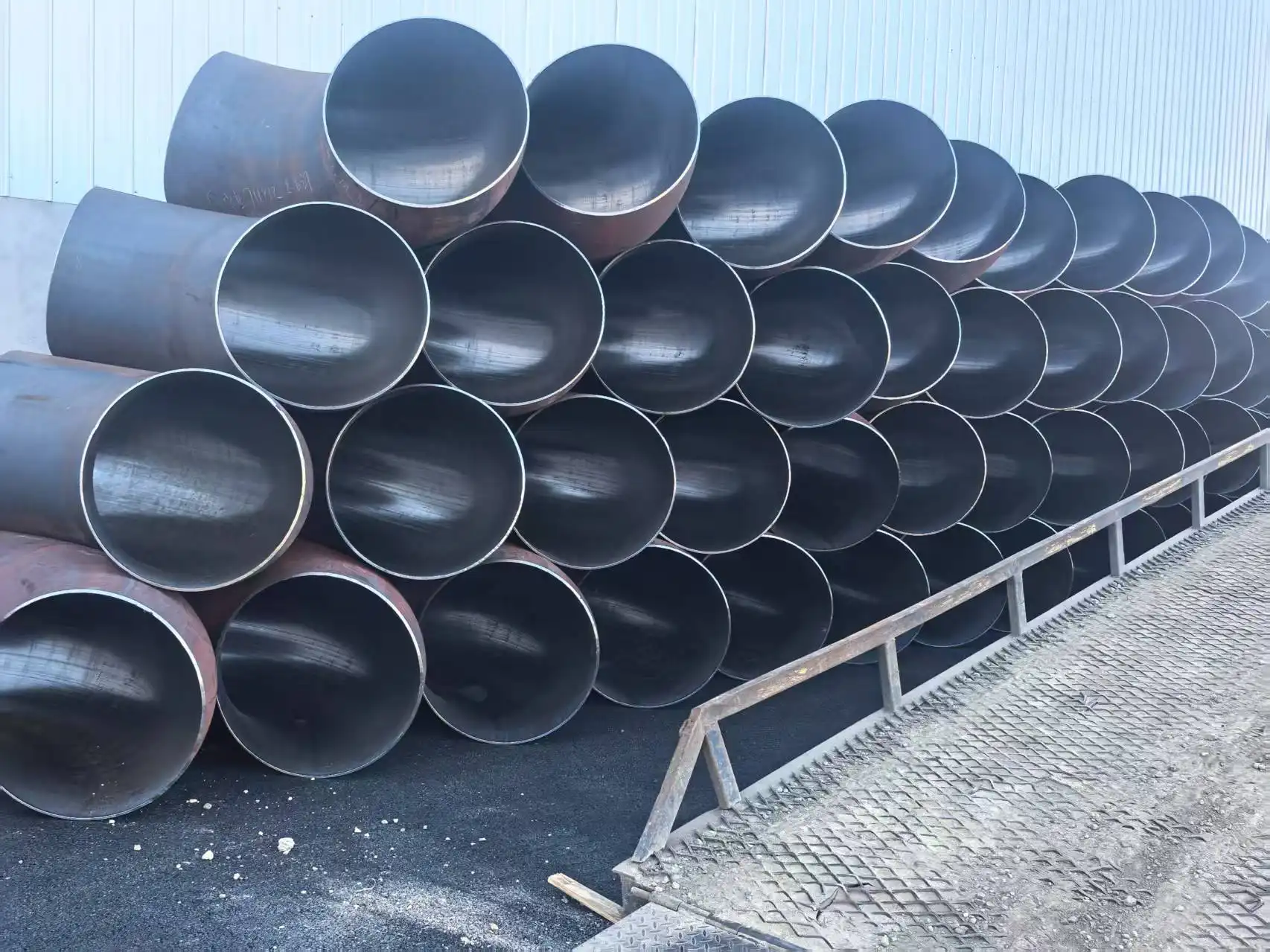

How Carbon Steel Elbows Support Modern Pipeline Layouts？

Changing Pipeline Direction Without Redesigning the Entire System

An obvious use of an elbow is to alter the direction of a pipe line. But in a genuine pipeline project, this basic function has tremendous technical significance. Pipes may have to snake around structural columns, pumps, storage tanks, road crossings, existing equipment, or other portions of a facility. The elbow enables engineers to make these directional modifications while yet keeping the pipeline continuous.

The elbow angle is determined based on the preferred arrangement. The 90° elbow is often utilized when a pipeline requires a dramatic directional shift, whereas a 45° elbow might provide a gentler offset. For situations where minimization of turbulence and local pressure losses is crucial, the long-radius layouts are often selected.

Carbon steel elbows are thus especially helpful in huge industrial networks, where hundreds of pipe sections have to be joined in a well-defined path. Engineers should not see elbows as extras but as integral parts of the whole hydraulic and mechanical design.

Managing Pressure, Loads, and Pipeline Movement

A pipeline doesn't just carry pressure. Temperature fluctuations produce thermal expansion and contraction, and additional stresses may be introduced by vibration, equipment movement, ground settlement, and external loads. An elbow alters the direction of the piping and hence modifies the distribution of forces in the piping system.

This is important because the elbow shape is a bend and may produce places where stresses get concentrated. Proper engineering thus necessitates that the dimensions of the elbow and wall thickness are consistent with the neighboring pipe and the design pressure of the system.

So, picking an elbow based on nominal pipe size is not sufficient. Fitting should be considered with the pipe specification, pressure class or wall thickness, operating temperature and appropriate design code. This is especially essential in oil and gas installations where a failure at a directional fitting may have severe operational and safety implications.

Why Carbon Steel Is Widely Used for Oil, Gas, and Water Service？

Strength for Demanding Pipeline Conditions

For years carbon steel has been utilised in industrial plumbing because it provides a good mix of strength and flexibility. Carbon steel, when properly specified, is capable of withstanding significant internal pressure and mechanical loads, hence making it appropriate for many above-ground and underground pipeline applications.

In oil and gas service, carbon steel elbows may experience pressure changes, vibration, temperature cycling and external mechanical stresses. Thus, the fitting has to keep its dimensions and mechanical integrity under the envisaged operating circumstances.

But strength should not be viewed in isolation. The actual performance of an elbow is dependent on material grade used, manufacturing quality, wall thickness, welding technique, heat treatment (if applicable) and operating environment. But a greater-strength material isn't always the ideal option for all pipelines.

Weldability and Compatibility With Carbon Steel Pipe

Carbon steel elbows are also commonly used since they are compatible with carbon steel pipe. Butt-weld elbows may be attached to pipe using standard welding techniques to provide a continuous connection with a rather smooth internal transition.

Welding performance is more than just picking an appropriate material. The pipe and elbow need to have the proper dimensions and wall thickness, and the welding process must be selected based on the material grade and service requirements. Preheating, filler-metal selection, interpass temperature, post-weld treatment if necessary and inspection requirements should be decided in accordance with the appropriate project specification and welding technique.

This is especially significant for major oil and gas pipelines. If the welding is done improperly or the junction is not properly examined, a good-quality elbow might still be a weak spot.

A Practical Balance Between Performance and Cost

Carbon steel may be a cheap alternative for many pipeline applications compared to more specialised alloy systems. Its broad industrial usage also implies that fabrication, welding, machining, inspection and maintenance techniques are well established in many areas.

The cost benefit is more than just the price of the fitting. Standardised carbon steel components may also make procurement and installation easier since contractors are used to working with the material and its connecting procedures. This may have a significant impact on the total project budget in major pipeline projects when vast volumes of fittings are required.

But at the same time, picking the cheapest elbow is not always the most affordable choice. A poor match between the fitting and the working environment might lead to early corrosion, welding difficulties or dimensional irregularities, all of which add to maintenance and replacement expenses. Material appropriateness, manufacturing quality, paperwork, inspection and the estimated service life are part of a smarter buying choice.

Carbon Steel Elbows in Oil Pipeline Applications

Crude Oil Transportation and Gathering Systems

Oil pipelines are used to transfer crude oil from producing locations to collection facilities, processing units, storage terminals, or refineries. These systems may have several changes in direction, especially around pumping stations, manifolds, valves and processing equipment.

Carbon steel elbows are utilised at these points to keep the pipeline in the appropriate path and to accommodate direction changes. Correct elbow geometry is a function of pipe arrangement and hydraulic needs. Long-radius elbows may be useful when pressure loss is a factor because the more gradual change in direction might create less localised turbulence in the flow than a tighter bend.

Also, the material selection should consider the composition of the fluid to be conveyed. Corrosion behaviour may be influenced by water, salts, sulphur compounds and other crude oil ingredients. For this reason the engineer is not justified in assuming all crude-oil pipe lines have the same material needs.

Refineries and Process Piping

Piping systems in refineries and other similar processing facilities may be subject to more complex combinations of pressure and temperature than many common water lines. Carbon steel elbows may be used to connect equipment such as heat exchangers, pumps, separators, vessels, and storage systems.

The fitting specification must be compatible with the process conditions in these settings. Material and dimension selection must include temperature, pressure, fluid composition, corrosion processes and appropriate pipe regulations.

This is one reason why experienced providers should be able to look at more than a nominal diameter when making up a quote. Project designs, material specifications, wall thickness, elbow radius, connection measurements and inspection requirements may all impact the proper configuration of the product.

The Role of Carbon Steel Elbows in Gas Pipeline Systems

Gas Transmission and Distribution

Natural gas transmission systems require piping components that can withstand the operating pressure and mechanical conditions specified for the pipeline. Directional changes are unavoidable, making elbows an important part of station piping, above-ground assemblies, distribution networks, and industrial gas systems.

For gas service, dimensional accuracy and connection quality are particularly important. A properly manufactured elbow should align with the adjoining pipe so that installation does not introduce unnecessary stress into the piping system.

Depending on the project, requirements may also include material traceability, nondestructive examination, dimensional inspection, and documentation. These requirements are especially relevant when the fittings are incorporated into high-pressure or safety-critical systems.

Gas Processing and Industrial Facilities

Gas processing plants contain extensive piping networks connecting compressors, separators, treatment units, valves, and storage equipment. These systems often require numerous directional changes within relatively compact layouts.

In such facilities, engineers may select different elbow configurations according to space limitations, pressure-drop considerations, and the geometry of the surrounding equipment. A long-radius elbow may be useful where smoother flow is desirable, while a different configuration may be selected where installation space is limited.

The correct choice should therefore be based on the complete piping design rather than on the elbow angle alone.

Where Carbon Steel Elbows Are Used in Water Pipelines？

Municipal and Industrial Water Systems

Water pipelines represent another major application for carbon steel elbows. Large-diameter steel piping may be used for water transmission, industrial cooling systems, fire-water networks, treatment facilities, and other applications where strength and structural integrity are important.

Water service can appear less demanding than oil or gas service, but corrosion remains a major consideration. Carbon steel exposed to water and oxygen can corrode, and the rate can vary substantially depending on water chemistry, temperature, dissolved oxygen, flow conditions, and other environmental factors.

For this reason, corrosion protection for carbon steel elbows may involve coatings, linings, cathodic protection, corrosion monitoring, or a combination of measures. The appropriate strategy depends on whether the pipeline is buried, submerged, exposed to the atmosphere, or installed in a controlled industrial environment.

Cooling and Process Water

Industrial plants often use water as a cooling or process medium, and these systems can include extensive networks of steel pipe and fittings. Elbows allow the piping to be routed around equipment while maintaining the required flow path.

In these applications, engineers should consider not only pressure but also flow velocity and the potential for erosion or corrosion. High-velocity flow through a directional fitting can contribute to localised wear under certain conditions, particularly when the fluid contains suspended solids or is otherwise aggressive.

A properly selected elbow should therefore be evaluated as part of the entire piping system rather than as an isolated component.

Engineering Factors to Check Before Selecting an Elbow

Diameter, Wall Thickness, and Bend Radius

The elbow must match the dimensions and specification of the pipe to which it will be connected. Nominal size establishes the basic connection dimension, but wall thickness and pressure requirements are equally important.

Bend radius also deserves attention. Long-radius elbows generally provide a smoother directional transition and are frequently selected for process and pipeline applications where flow behaviour and pressure loss matter. Short-radius elbows can be useful where space is restricted, although the tighter geometry can produce different flow characteristics and localised losses.

The choice should be made according to the project design rather than assuming that one radius is suitable for every service.

Operating Temperature and Pressure

Temperature and pressure directly influence material selection and fitting design. The allowable operating range depends on the material grade, wall thickness, design code, and specific service conditions.

For oil and gas applications in particular, engineers should consider both normal operating conditions and foreseeable pressure or temperature excursions. The fitting specification should then be checked against the relevant design requirements before procurement.

This information also helps the supplier provide an accurate quotation. When purchasing carbon steel elbows, supplying the nominal diameter alone may leave too many important variables unresolved.

Corrosion and Environmental Exposure

Carbon steel requires appropriate corrosion management when used in environments where corrosion is expected. This can include wet service, buried pipelines, marine environments, and process fluids containing corrosive constituents.

The elbow may require an external coating, internal lining, corrosion allowance, cathodic protection, or another control method depending on the system. In oil and gas service, the possibility of corrosion mechanisms associated with the transported fluid should also be evaluated during material selection.

Good corrosion control is not simply about applying a coating after manufacturing. Surface preparation, coating compatibility, application quality, inspection, and long-term maintenance all influence the effectiveness of the protection system.

Conclusion

Carbon steel elbows play a fundamental role in oil, gas, and water pipeline systems because they allow engineers to change pipe direction while maintaining a practical and mechanically reliable pipeline layout. Their strength, weldability, availability, and cost characteristics make them suitable for a wide range of industrial applications, provided that the material and design are matched to the operating environment.

Their performance, however, depends on more than the carbon steel itself. Diameter, wall thickness, bend radius, pressure, temperature, fluid composition, corrosion exposure, welding quality, and inspection requirements all need to be considered during selection. Long-radius elbows may be preferable where smoother flow and reduced localised losses are important, while more compact configurations can be useful where installation space is limited.

For oil and gas pipelines, particular attention should be given to pressure, fluid composition, corrosion mechanisms, welding procedures, and inspection requirements. In water systems, corrosion protection and environmental exposure can have a major influence on service life. Across all three applications, selecting the fitting as part of the complete piping system is more reliable than choosing it solely according to size and angle.

For contractors, distributors, and engineering procurement teams, working with an experienced manufacturer can simplify this process. Cangzhou Oudi Pipe Make Co., Ltd. can provide carbon steel fitting solutions for pipeline projects where dimensional accuracy, material suitability, and dependable supply are important. By matching carbon steel elbows with the actual requirements of the pipeline rather than relying on generic specifications, buyers can achieve a more reliable balance between installation requirements, operating performance, maintenance, and project cost.

Send an email to oudi-04@oudiguandao.com if you would like more information about the carbon steel elbows and other pipeline components offered by this firm.

FAQ

1. What are the main advantages of using carbon steel elbows in pipelines?

Carbon steel elbows offer durability, strength, flexibility in design, and cost-effectiveness, making them ideal for oil, gas, and water pipeline applications.

2. How do carbon steel elbows resist corrosion in pipeline systems?

Carbon steel elbows can be protected against corrosion through coatings, galvanisation, linings, and cathodic protection systems.

3. What is the significance of long radius (L/R) carbon steel elbows in pipelines?

Long-radius elbows provide smoother flow transitions and reduced turbulence, optimising fluid transport efficiency in pipeline systems.

4. How are carbon steel elbows typically joined to pipeline sections?

Butt welding is the most common method for joining carbon steel elbows, with socket welding used for smaller diameters in some applications.
