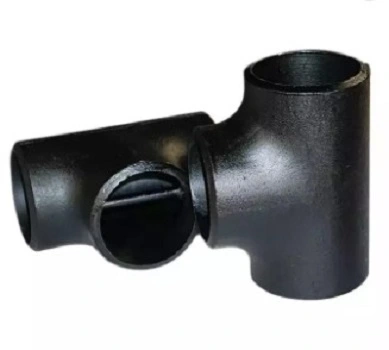

ASTM A234 WPB Tee Fittings: Standards and Manufacturing Process



When a piping system needs to divide one flow into two directions, a tee is one of the most common fittings used to create that branch connection. For carbon steel process piping, an ASTM A234 WPB Tee is often selected when the project requires a wrought carbon steel fitting for moderate- or elevated-temperature service. However, the ASTM A234 designation alone does not specify all dimensions and pressure requirements of the final tee. The material requirements, the fitting dimensions, the wall thickness, the design circumstances, and the testing and inspection should be evaluated together. ASTM A234/A234M covers wrought carbon steel and alloy steel fittings of seamless and welded construction for pressure pipes and for pressure-vessel use at moderate and increased temperatures. The standard also allows for a variety of forming processes such as pressing, forging, piercing, extrusion, bending, rolling, welding, and machining depending upon the fitting and route of manufacture. Why does this disparity matter to engineers and buying teams? Do not choose a tee solely because it is stamped “ASTM A234 WPB.” The buyer also has to validate the appropriate dimensional standard, nominal pipe size, schedule or wall thickness, connection type, design pressure and temperature, inspection requirements, and material documents. The next sections describe how these criteria come together in the manufacture and selection of an ASTM A234 WPB Tee.

Understanding What ASTM A234 WPB Actually Specifies

Material Requirements Behind the WPB Grade

WPB is a grade of carbon steel in ASTM A234. The standard is concerned with the material and production requirements of wrought steel fittings rather than only detailing the physical form of a tee. This difference is important since “tee” specifies the fitting configuration and “WPB” defines the material grade under the appropriate ASTM standard.

The chemical composition is governed by well-defined limitations for elements such as carbon, manganese, phosphorus, sulfur, and silicon. The actual heat analysis and, if necessary, product analysis are used to confirm that the material meets the appropriate standard. Thus, a producer should not characterize WPB as having a set chemical makeup. The values shown on the material test certificate should be verified against the limitations of the edition and specification indicated on the purchase order.

Material traceability is as vital. A regulated manufacturing system ties the raw material or heat number to the completed fitting and its inspection records. This enables the maker and customer to determine the material from which a certain batch was made, rather than the designation stamped on the final tee.

The Relationship Between ASTM A234 and ASME B16.9

A major area of misconception is the assumption that ASTM A234 and ASME B16.9 are identical standards. They are.

ASTM A234 covers the material and production standards for wrought carbon and alloy steel pipe fittings. ASME B16.9, however, is the dimensional standard most usually associated with factory-made wrought butt-welding fittings. ASTM itself does say that A234 fittings are covered under the corresponding revisions of the ASME and MSS fitting standards.

For actual procurements this specification might specify the material to be ASTM A234 WPB and the fitting dimensions to adhere to the necessary ASME B16.9 criteria. The two references have distinct goals and should be read together and not presented as conflicting standards.

The same technique is used in ASTM A960/A960M, which sets uniform specifications for wrought steel pipe fittings. Today’s ASTM A960/A960M paperwork covers material, chemical analysis, mechanical testing, heat treatment, and other typical quality provisions.

How an ASTM A234 WPB Tee Is Manufactured？

Starting With Controlled Raw Material

Manufacturing normally begins with material that has been identified and verified against the purchase specification. Depending on the manufacturing route, the starting material can include forgings, bars, plates, seamless tubular products, or welded tubular products permitted by the applicable specification.

Before forming begins, the material is checked for chemical composition and basic condition. Manufacturers may use laboratory chemical analysis to confirm the heat composition, while visual inspection helps identify obvious surface defects that could become more difficult to detect after forming.

The objective is not simply to find a piece of steel that has the correct nominal grade, such as an ASTM A234 WPB Tee. The material must also be suitable for the intended forming process. A reliable production system therefore keeps heat identification and traceability throughout manufacturing so that the finished fitting can be connected to its original material records.

Forming the Run and Branch

The tee shape is created through a controlled forming process selected according to the size, wall thickness, production equipment, and required product configuration. ASTM A234 permits a broad range of forming operations, including hammering, pressing, piercing, extrusion, upsetting, rolling, bending, fusion welding, and machining.

For many butt-welding tees, hot forming is used because elevated-temperature forming allows the steel to be shaped without imposing the same deformation demands that would occur during cold working. The manufacturer must control forming temperature, deformation, tooling, and subsequent cooling so that the fitting reaches the required geometry without introducing harmful imperfections.

In a tree, the branch connection deserves particular attention. The branch must transition smoothly into the run, and the resulting geometry needs to maintain the required wall thickness and dimensional tolerances. Poor control at this stage can create localized thinning, excessive deformation, or an irregular branch profile that later causes problems during welding or installation.

The production method can vary between manufacturers and product sizes. Therefore, it is more accurate to describe ASTM A234 as permitting several manufacturing approaches rather than claiming that every WPB tee is produced by one specific process.

Heat Treatment After Forming

Heat treatment is an important part of controlling the final condition of a wrought carbon steel fitting. The required treatment depends on the applicable specification, material grade, fitting size, manufacturing route, and ordering requirements.

For ASTM A234 WPB products, normalizing is commonly associated with the required heat-treatment condition, while other heat-treatment conditions may apply depending on the specific requirements. The purpose is to establish an appropriate microstructure and mechanical-property condition after forming rather than simply making the steel harder.

Cooling also needs to be controlled. ASTM A234 states that fittings formed at elevated temperatures are to be cooled below the critical range under suitable conditions so that harmful defects associated with overly rapid cooling are avoided.

A manufacturer should therefore record the relevant heat-treatment parameters rather than treating heat treatment as an informal finishing step. This information can become important when the customer requests manufacturing records, inspection documentation, or traceability for critical piping applications.

How Quality Is Verified Before Shipment？

Mechanical and Hydrostatic Testing

Material compliance is only one part of quality control. Finished fittings also need to meet the applicable mechanical and testing requirements.

ASTM A234 includes requirements for tension testing, hardness testing, and hydrostatic testing. These tests provide different types of information. A tensile test evaluates mechanical strength and ductility, hardness testing provides a check on material condition, and hydrostatic testing can help identify leakage or pressure-related integrity problems under the specified test conditions.

The exact testing program should be determined from the applicable ASTM specification, referenced common requirements, product standard, and purchase order. It is therefore better for a manufacturer to provide the actual inspection and test documentation rather than relying on a general statement such as “the fittings have passed quality inspection.”

Dimensional and Surface Inspection

A tee that meets the material specification, such as an ASTM A234 WPB tee, can still be unsuitable if its dimensions are wrong. Inspection normally covers important dimensions such as outside diameter, wall thickness, center-to-end dimensions, branch dimensions, and overall geometry, according to the applicable dimensional standard.

Surface condition is also checked for visible defects, excessive scale, cracks, laps, or other imperfections. The ends of a butt-welding tee need to be prepared appropriately for installation, and the branch transition should have a consistent profile.

Dimensional inspection is especially important for replacement work. A fitting may have the correct nominal size and material grade but still create installation problems if its actual dimensions do not match the existing piping arrangement.

Documentation and Traceability

For industrial procurement, inspection records can be as important as the physical fitting. A material test certificate should provide traceability to the relevant heat or batch and identify the material grade and applicable test results.

Depending on the project, buyers may also request dimensional inspection records, hydrostatic test reports, heat-treatment records, certificates of conformity, or additional non-destructive examination. ASTM A960 establishes common requirements that may be invoked alongside individual fitting specifications, so the required documentation should be agreed upon during the quotation and purchase-order stage.

This is one area where a manufacturer can add real value. Clear documentation reduces uncertainty for engineering review, incoming inspection, and project records.

Where ASTM A234 WPB Tees Are Commonly Used？

Process and Oil & Gas Piping

Carbon steel tees are widely used in process piping where a main line needs to connect with a branch line. In oil and gas facilities, this can include gathering systems, process piping, utility lines, manifolds, and other piping arrangements where the design conditions are compatible with the material and fitting specification.

The suitability of an ASTM A234 WPB Tee should always be evaluated against the actual service conditions rather than assumed from the material designation alone. Temperature, pressure, fluid characteristics, corrosion conditions, piping code, and welding requirements all influence whether WPB is appropriate for a particular line.

For example, a carbon steel fitting may be well suited to a general hydrocarbon or utility service but may require a different material selection when the fluid environment creates specific corrosion or low-temperature requirements. Material selection should therefore begin with the project design conditions rather than with the fitting name alone.

Power and Utility Systems

Power-generation and industrial utility systems also use carbon steel butt-welding fittings in steam, water, condensate, and other piping services. WPB tees can be considered where the design temperature and pressure fall within the acceptable range for the selected material and system.

In these installations, dimensional compatibility is particularly important because tees are integrated into welded piping networks rather than used as isolated components. A fitting must provide the correct branch geometry and end dimensions so that field fabrication can be completed without introducing unnecessary alignment problems.

The tee also needs to be evaluated together with the pipe. Matching the nominal size alone does not guarantee that the fitting and pipe have compatible wall thicknesses or welding requirements. The project specification should therefore define the pipe schedule, fitting dimensions, material grade, and applicable joining requirements together.

Chemical and General Process Facilities

Chemical plants and general process facilities use a wide range of piping materials, and carbon steel remains common for services where its properties are suitable. WPB tees can be used to create branch connections in process and utility piping, but the chemical environment must be reviewed before the material is selected.

The original article states that WPB is “resistant to a wide range of chemicals.” That is too broad. Carbon steel is not universally resistant to acids, aggressive chemicals, or corrosive process fluids. Corrosion allowance, fluid composition, operating temperature, and internal coating or lining requirements may all influence the material choice.

A more reliable approach is to treat ASTM A234 WPB Tee as a material option that must be matched to the process conditions. This avoids the common mistake of interpreting a general carbon steel specification as evidence that the fitting is suitable for every chemical service.

What Buyers Should Confirm Before Ordering？

Size, Schedule, and Connection Details

Before purchasing an ASTM A234 WPB Tee, the buyer should make sure that the nominal pipe size and branch size are clearly defined. Equal tees and reducing tees have different configurations, and the required branch size must be stated rather than assumed.

The pipe schedule or required wall thickness should also be confirmed. The fitting dimensions should correspond to the applicable dimensional standard and the pipe system into which the tee will be installed.

End preparation is another practical consideration. For butt-welding fittings, the end configuration needs to be compatible with the connected pipe and the project's welding procedure. Small differences in dimensions or preparation can create unnecessary fabrication work during installation.

Design Conditions and Inspection Requirements

The purchase specification should identify the design pressure and temperature rather than relying on a generic pressure rating associated with the fitting material. These conditions determine whether the selected material and fitting configuration are suitable for the application.

Inspection requirements should be discussed at the quotation stage as well. A standard order may require material certification and routine testing, while a critical project may call for additional examinations or customer-specific documentation. ASTM A234 also allows the use of supplementary requirements through the applicable common requirements framework, so project-specific inspection provisions should be clearly written into the order.

For a manufacturer, this is also an opportunity to improve the quotation process. Instead of quoting only “ASTM A234 WPB tee,” a supplier can confirm size, schedule, dimensional standard, quantity, inspection level, marking, documentation, and delivery requirements before production begins.

Why Manufacturing Control Matters for Long-Term Piping Performance？

The quality of a tee is determined by more than the appearance of the finished fitting. Material selection, forming, heat treatment, machining, inspection, and traceability all contribute to whether the component can perform as intended after it is welded into the piping system.

A properly controlled forming process helps maintain the intended geometry and material condition. Appropriate heat treatment helps establish the required mechanical properties. Dimensional inspection reduces the risk of poor fit-up, while testing and documentation provide evidence that the product has been evaluated against the applicable requirements.

This is especially relevant for projects involving large quantities of fittings. A small dimensional or documentation problem repeated across hundreds of components can create significant installation delays. Consistent manufacturing controls therefore have practical value for both engineering quality and project cost.

For purchasers, the best approach is to evaluate the supplier's ability to control the complete manufacturing chain rather than focusing only on the lowest unit price. Material traceability, inspection records, dimensional control, and communication during production can make a measurable difference when the fittings reach the jobsite.

Conclusion

ASTM A234 WPB tee fittings are widely used for branch connections in industrial piping because the material specification provides a recognized framework for wrought carbon steel fittings used in moderate- and elevated-temperature service. Their performance, however, depends on more than the WPB designation itself. The applicable dimensional standard, pipe size, wall thickness, design conditions, forming method, heat treatment, testing, and inspection requirements all need to be considered together.

ASTM A234 defines important material and manufacturing requirements, while related standards such as ASME B16.9 and ASTM A960 help establish the dimensional and common quality requirements used for many industrial fittings. For buyers, confirming these requirements before production is the most effective way to avoid dimensional mismatches, documentation gaps, and installation problems.

Cangzhou Oudi Pipe Manufacture Co., Ltd. can support customers who need ASTM A234 WPB tees by discussing the required size, material, dimensional standard, inspection requirements, and project documentation before production. For industrial orders, providing these details at the quotation stage helps the manufacturer prepare a fitting that is aligned with the actual piping application rather than supplying a generic product based only on the material grade. For inquiries, please contact us at oudi-04@oudiguandao.com.

References

1. ASTM International. (2019). ASTM A234/A234M-19 Standard Specification for Piping Fittings of Wrought Carbon Steel and Alloy Steel for Moderate and High Temperature Service.

2. American Society of Mechanical Engineers. (2017). ASME B16.9-2018 Factory-Made Wrought Buttwelding Fittings.

3. Nayyar, M. L. (2000). Piping Handbook (7th ed.). McGraw-Hill Education.

4. Smith, P. (2005). Piping Materials Guide. Elsevier Science.

5. Antaki, G. A. (2003). Piping and Pipeline Engineering: Design, Construction, Maintenance, Integrity, and Repair. CRC Press.

6. American Petroleum Institute. (2018). API Specification 5L: Specification for Line Pipe (46th ed.).
