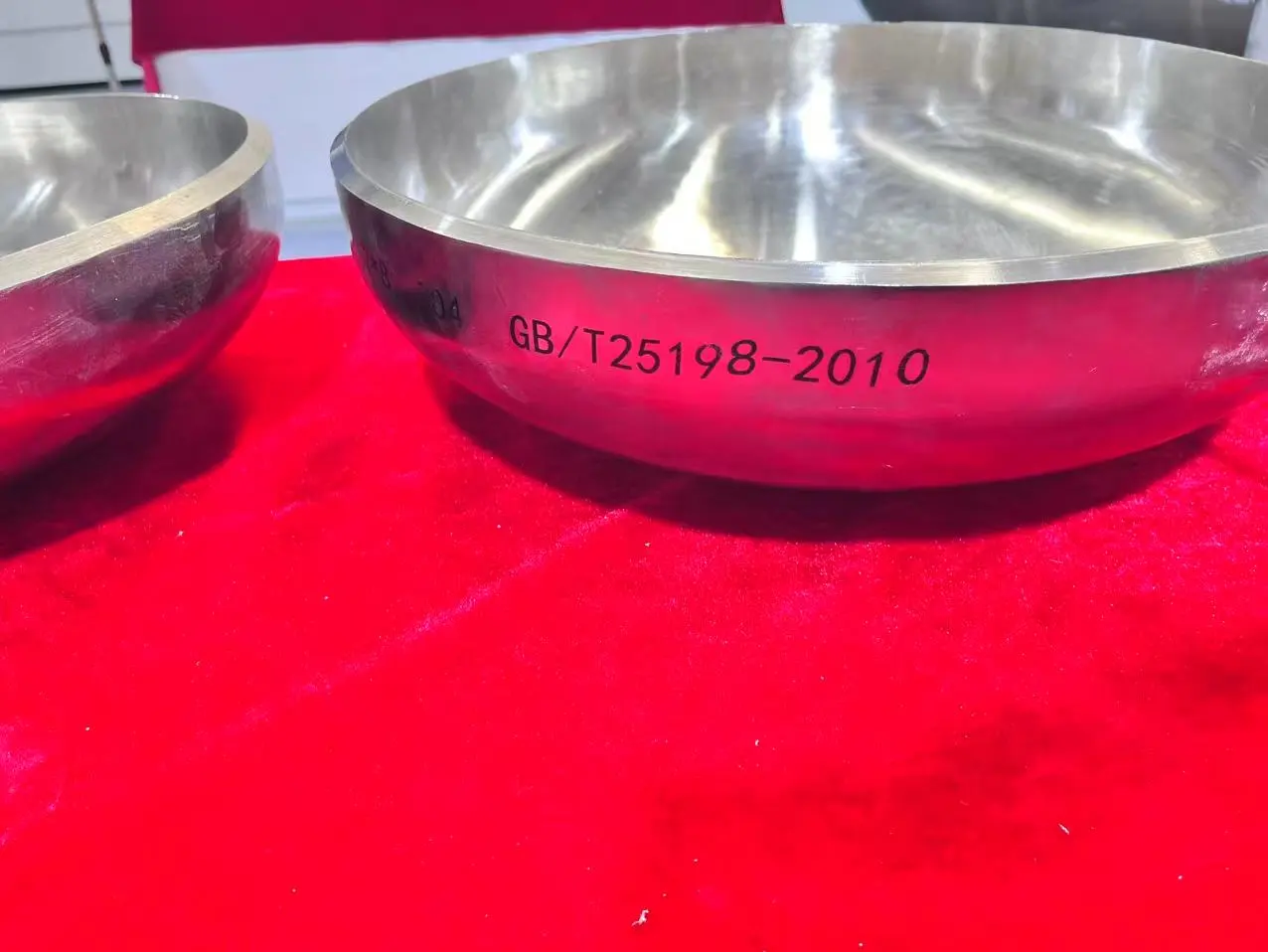

Best Practices for Welding Butt Weld Pipe Caps

Welding butt-weld pipe caps to piping requires more than simply selecting a welding machine and joining two metal components. The quality of the final connection relies on pipe and cap preparation, accuracy of alignment, management of the welding technique, and inspection of the completed joint. This is particularly relevant in oil and gas, petrochemical, power generation, and other industrial pipe applications where a bad weld might result in leakage, rework, or service difficulties. The starting point for a reliable welding operation must thus be the authorized welding technique and not a generic collection of welding parameters. The technique is affected by factors such as material grade, wall thickness, pipe diameter, welding location, joint design, service circumstances, and relevant project criteria. The following procedures describe how to approach the welding of butt-weld pipe caps from preparation to inspection, with the project specification and qualified welding process being the focus of the job.

Prepare the Pipe and Cap Before Welding

Cleanliness and Edge Condition Affect Weld Quality

Surface preparation is one of the easiest phases of the process, but it may have an immediate influence on weld quality. Prior to fit-up, the pipe end and the welding region of the cap should be free of oil, grease, loose scale, corrosion, paint, moisture, and other impurities that may interfere with the welding arc or produce faults in the connection.

Special care should be paid to the bevel region. Contamination in the groove might be caught in the weld. • Cleaning may be mechanical, such as with a wire brush, grinder, or other appropriate means as per the material and site technique. If a chemical cleaner is used, it must be compatible with the material and removed thoroughly before welding so that there is no residue in the joint.

The bevel geometry should also be examined before bringing the elements together. The bevel angle, root face, and groove condition should be in accordance with the authorized joint design or WPS. Forcing the components together to align might cause extra stress and an irregular root opening if the pipe end or cap has been broken during handling. In such circumstances it is often better to improve the edge condition before welding rather than attempting to compensate for a poor fit during the welding procedure.

Confirm Fit-Up Before Applying Heat

Accurate fit-up helps to provide a uniform weld across the diameter of the joint. Position the pipe and cap such that the junction falls within the dimensions limits provided by the appropriate design, WPS, or project specification. An excessive mismatch might impede penetration and make it difficult for the welder to maintain a consistent weld profile.

The root gap should be evaluated around the joint rather than at simply one point. The fit-up may be checked before welding commences using a welding gauge or other appropriate inspection equipment. For bigger pipe diameters, components may need to be checked further since the weight of the cap and stiffness of the pipe might make it harder to keep the alignment.

Fit-up is also the stage during which dimensional errors are simplest to rectify. It is more difficult to remedy an alignment fault and may need more labor once tack welds and subsequent passes are placed. This is why a moment to check the junction before welding might help to minimize rework and the likelihood of an uneven completed connection.

Use Tack Welds to Hold the Joint in Position

Tack welds assist in holding the pipe and cap in the correct place until the main weld is formed. The number, size, spacing, and sequence of these should be decided by the competent welding process and the features of the joint and not by one uniform spacing guideline.

After tack welding, the alignment must be verified again. Some movement may occur due to the heat of the tack welds, especially in thin-wall members or junctions with poor dimensional stability. Any tack weld with a fracture or other undesirable flaw should not be included in the completed weld. It should be removed or repaired in accordance with the appropriate process before carrying out the final welding.

In important pipe applications, this little verification step may make a big impact. A joint that has been perfectly aligned before to tacking butt-weld pipe caps may not stay in the same place after many tack welds.

Select the Welding Process According to the Application

GTAW Provides Control for the Root Pass

Gas Tungsten Arc Welding, or GTAW, is also known as TIG welding. This process is generally used when control of the root pass is a priority. This is especially beneficial for stainless steel, alloy steel, and other applications where penetration control and weld cleanliness are critical.

The welding current, polarity, shielding gas, tungsten configuration, filler metal, travel speed, etc., should be determined by the appropriate WPS and not by choosing from generic guidelines. The welder also has to regulate the weld pool and maintain a steady arc state while making the root pass so that the weld pool is adequately penetrated without excessive reinforcing or burn through.

It is also crucial to have enough shielding gas coverage, especially when welding oxidation-sensitive materials. If the root side of the joint is to be purged, the purge arrangement and acceptability criteria should be in accordance with the welding method. Even if the weld seems satisfactory from the outside, oxidation and even damage to the root surface might occur if the shielding or purge conditions are not suitable.

GTAW may have a lower deposition rate than some other welding methods, but the increased control can be useful for demanding connections. It is also usual in the production environment to employ GTAW for the root and another qualifying method for subsequent passes when allowed by the welding procedure.

SMAW Remains Practical for Field Welding

Field pipe welding still uses Shielded Metal Arc Welding, or SMAW, a great deal since the equipment is somewhat portable and the procedure may be employed where management of shielding gas is problematic. It also lends itself well to many industrial plumbing applications provided the proper electrode and approved method are utilized.

Electrode selection should be made on the basis of base material, mechanical qualities needed, welding location, and appropriate WPS. Storage and handling of electrodes is particularly important since moisture pickup may harm certain low hydrogen electrodes and enhance the potential for hydrogen-related cracking in vulnerable materials.

The arc length, travel speed, electrode angle, and heat input must be kept within the certified technique during welding. The slag and other surface impurities should be removed after each pass and before the deposit of the following pass. Visible weld surface faults should be inspected to ensure that issues are solved before they are hidden behind further weld metal.

SMAW is especially effective when the site of installation restricts access to bigger welding equipment. But convenience is not to be mistaken with appropriateness. The procedure should also comply with the material, service, quality, and inspection criteria of the project.

GMAW Can Improve Deposition Efficiency in Controlled Conditions

Gas Metal Arc Welding (GMAW) may provide greater deposition efficiency and productivity than GTAW in many applications, which makes it ideal for regulated fabrication settings. GMAW may be performed with various shielding gas and wire combinations. MIG welding is one typical method of GMAW.

The qualifying technique should match the wire classification, wire diameter, shielding gas, voltage, current, wire feed speed, and travel speed specified. These factors affect penetration, bead profile, spatter, heat input, and overall weld uniformity.

When large quantities of comparable butt-weld pipe caps and pipe assemblies need to be manufactured under regulated shop circumstances, GMAW may be especially advantageous. But its productivity advantage doesn’t always make it the ideal choice for every application. Wind, access, joint shape, material type, and shielding needs may all influence the method chosen. Another approved procedure may provide greater control for field work or problematic welding sites.

Control Heat Input and Weld Sequence During the Joint

Manage Heat to Limit Distortion

The weld quality and the dimensional stability depend on the heat input. High heat input may induce distortion, change the characteristics of particular materials, and make it harder to maintain the desired joint shape. In contrast, if there is not enough heat, it may not fuse or penetrate enough.

The certified welding technique should be used to define the proper range of heat input. Current should not be increased, and travel speed should not be slowed by welders to compensate for faulty fit-up. If the root opening or bevel geometry is out of acceptable range, it is usually best to adjust the joint rather than to push the welding process to accommodate it.

Welding sequence may potentially be a factor in distortion. Circumferential welds must be sequenced considering joint size, material thickness, welding location, and certified process. The goal is to retain the joint shape but to achieve the appropriate weld profile and penetration.

Clean and Inspect Between Passes

Interpass cleaning is an integral aspect of quality control for multipass welds. Slag, oxides, spatter, and other surface impurities should be removed before the next pass is deposited. This is particularly true for methods such as SMAW, where slag is generated in the welding process.

Interpass temperature should also be managed as needed by the WPS. Simply allowing the weld to cool or adding heat without verifying the temperature may take the process out of the qualifying range.

Visual inspections between passes can allow you to catch issues early. If an undercut, fracture, lack of fusion, or other unsatisfactory condition is seen before the next pass, it is much simpler to correct it at once than after the whole weld has been performed.

Verify the Finished Weld Before Service

Start With a Detailed Visual Examination

Visual inspection is an important first stage of weld evaluation. It can identify surface conditions such as visible cracks, undercut, excessive or irregular reinforcement, arc strikes, surface porosity, poor bead profile, and other indications that may require further evaluation.

The inspection should not focus only on whether the weld “looks good.” The weld should be compared with the applicable acceptance criteria, drawing, WPS, inspection plan, or project specification. Weld size, profile, alignment, and visible discontinuities should be evaluated according to those requirements.

For critical piping, inspection records for components such as butt-weld pipe caps should also be maintained as required by the project quality plan. If an unacceptable condition is found, the appropriate repair procedure should be followed rather than simply grinding or rewelding without documentation.

Choose NDT According to Material and Service Requirements

Non-destructive testing can provide information that visual inspection cannot. The appropriate method depends on the material, joint geometry, expected defect type, service requirements, and governing specification.

Radiographic testing uses X-rays or gamma radiation to identify certain internal discontinuities in welds. It can be useful for examining volumetric defects and other internal conditions, although its effectiveness depends on joint geometry and the selected technique.

Ultrasonic testing uses high-frequency sound waves to detect and evaluate discontinuities within the material. Advanced ultrasonic techniques can provide detailed information about weld conditions, but the inspection procedure, equipment calibration, operator qualification, and joint configuration all affect the results.

Magnetic particle inspection is suitable for detecting surface and near-surface discontinuities in ferromagnetic materials. It is not a universal method for all pipe cap materials, so material compatibility must be confirmed before selecting MPI.

Other inspection methods, including liquid penetrant testing, may be appropriate for detecting surface-breaking discontinuities on non-ferromagnetic materials when permitted by the project requirements. The important point is that NDT should be selected based on the actual risk and specification rather than simply adding as many tests as possible.

Conclusion

Proper welding of butt-weld pipe caps depends on much more than selecting a welding process. Surface preparation, bevel condition, fit-up, alignment, tack welding, heat control, interpass cleaning, inspection, and documentation all contribute to the final integrity of the connection. The welding process should be selected according to the material, joint configuration, fabrication environment, and qualified welding procedure rather than based on a general preference for one method.

For industrial piping, the WPS and applicable project standards should remain the primary reference throughout fabrication. Visual inspection and, where required, suitable non-destructive testing provide additional confidence that the finished weld meets the specified acceptance criteria. Good preparation at the beginning of the job can also reduce distortion, repair work, and installation delays later.

Cangzhou Oudi Pipe Manufacture Co., Ltd. supplies butt-weld pipe caps and industrial pipe fittings for demanding piping applications. Buyers working on oil and gas, petrochemical, power generation, water treatment, and other industrial projects can confirm material, dimensions, standards, end preparation, and inspection requirements with the supplier before placing an order, helping ensure that the selected pipe cap is suitable for the intended welding and service conditions. Contact our team at oudi-04@oudiguandao.com for technical support, OEM solutions, or product inquiries.

FAQ

1. Which welding method is commonly used for butt-weld pipe caps?

GTAW (TIG) welding is widely used for stainless steel and high-precision piping systems because it provides excellent weld quality and penetration control.

2. How important is proper alignment when welding butt-weld pipe caps?

Proper alignment is crucial, as it affects the weld quality, strength, and overall integrity of the connection.

3. What are the key safety precautions when welding butt-welded pipe caps?

Wearing appropriate PPE, ensuring proper ventilation, and implementing fire prevention measures are essential safety precautions.

4.  How often should nondestructive testing be performed on butt weld pipe cap connections?

The frequency of NDT depends on industry standards, application requirements, and the criticality of the welded assembly.
