Carbon Steel Elbow Dimensions Chart by Size and Wall Thickness

Understanding the dimensions of carbon steel elbows is essential when designing, installing, or purchasing components for industrial piping systems. It may seem to be a simple fitting, but an elbow has to have its nominal pipe size, outer diameter, wall thickness, bend radius, angle, and end dimensions all match the connected pipe and the needs of the piping system. The Carbon Steel Elbow Dimensions Chart by Size and Wall Thickness is a handy tool, as it combines these parameters in a manner that engineers, fabricators, contractors, and buying teams can use when specifying and ordering. Typical dimensional information comprises NPS, outer diameter, wall thickness, center-to-end dimension, and the equivalent measurements for long-radius and short-radius elbows. However, always verify dimensions against the appropriate standard and the exact material and schedule chosen rather than relying on a generic table alone. In most industrial applications, the right elbow is determined by looking at the whole pipe need, not by looking at one dimension. Pipe size should be matched to the line, wall thickness should be enough for design circumstances, and elbow radius and angle should meet the available space and the needed flow route. Understanding these connections helps minimize installation issues, wasteful pressure loss, and expensive replacement once manufacture has begun.

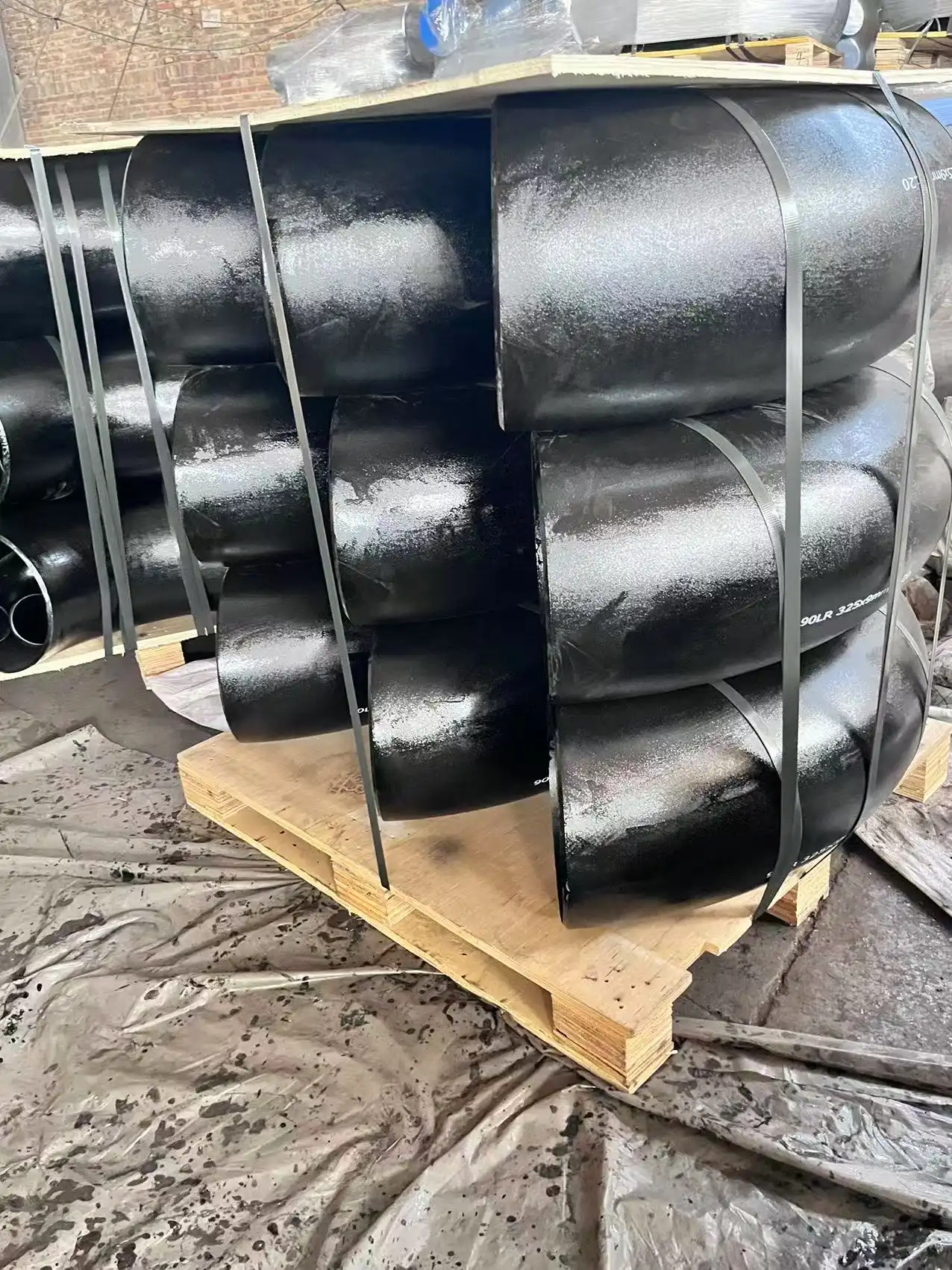

What Dimensions Define a Carbon Steel Elbow?

NPS and Outside Diameter

Nominal Pipe Size, or NPS, is one of the first parameters to be confirmed before purchasing a carbon steel elbow. NPS refers to the nominal size of the connected pipe but should not be confused with the actual outer diameter. Many popular pipe diameters have a set outer diameter, irrespective of wall thickness.

For example, a 2-inch NPS pipe has an outer diameter of 2.375 inches, and a 6-inch NPS pipe has an outside diameter of 6.625 inches. Increasing the schedule alters the wall thickness and hence the internal diameter but typically does not change the standard outer diameter for that NPS. This is a major difference to verify when considering whether an elbow will meet the pipe ends adequately.

Therefore, in purchasing carbon steel elbows, the NPS has to be stated together with the desired wall thickness or schedule. But buying a "2-inch elbow" doesn't provide enough information for a pressure pipe application, since there might be multiple choices for wall thickness.

Wall Thickness and Schedule

The wall thickness is the width of the steel between the interior and outside surfaces of the elbow. It adds to mechanical strength, weight, inside flow area, and pressure resistance. Wall thickness for pipe is sometimes referenced by schedule designations such as SCH40, SCH80, and heavier schedules.

Schedule is not a universal wall thickness in mm. The actual thickness will vary with the nominal pipe size and the dimensional standard, which is relevant. Hence, when an engineer is seeing a carbon steel elbow dimensions chart by size and wall thickness, it is always critical to associate the thickness with the exact NPS.

Wall thickness also influences fabrication and welding. A heavier elbow may need different welding settings and may have a narrower internal bore than a lighter wall fitting of the same nominal size. If the piping system is planned around a certain pipe schedule, the elbow should generally be specified to match the pipe it connects to dimensionally and for welding.

Center-to-End Dimension

The center-to-end measurement is critical for locating elbows on fabrication drawings or when installing in a tight space. It is the distance from the theoretical centerline of the fitting to the end of the elbow and varies with the nominal size, elbow angle, and bend radius.

This dimension is particularly important when numerous fittings are close together on a pipe spool. A little variation in size may influence the position of a flange, valve, support, or equipment nozzle. Fabricators consequently require more than just the nominal pipe size to determine appropriate cutting and welding specifications.

The relevant standard gives the requisite center-to-end dimensions for standard elbows. A broad online chart may be helpful in the preliminary selection of carbon steel elbows, but the dimensional drawing from the manufacturer should be reviewed before manufacturing when tight tolerances or equipment connections are needed.

How Does Elbow Radius Affect Piping Layout?

Long Radius Elbows

Long radius, or LR, elbows are often employed in industrial plumbing because the centerline radius is usually 1.5 times the nominal pipe size for normal 90-degree and 45-degree arrangements. The wider radius causes a gentler shift in flow direction than a short-radius elbow.

This shape may be advantageous in places where the pipe architecture allows for adequate space and in places where reduction of local flow disruption is needed. Long radius elbows are used in process pipes, water systems, chemical plants, refineries, and other applications where the flow path is more critical than the physical space required for the fitting.

For example, in a pipe run, if there is enough room around a pump or vessel, an LR elbow might provide a realistic compromise for flow behavior and installation requirements. However, it may not be the best option since there are still space availability, pressure drop calculations, support arrangements, and project requirements to be addressed.

Short Radius Elbows

Elbows designated SR, or short radius, have a tighter bend than the typical long-radius elbows. The conventional short-radius elbow typically has a centerline radius of the nominal pipe size. The bend is tighter and might be advantageous if space is at a premium.

But the price is a higher local flow disruption and pressure loss at a tight bend than in a long-radius elbow of the same size. This does not mean that SR elbows are inappropriate. In many practical designs of pipes, the reduction of installation space may be more essential than the minimization of the extra local loss.

Hence, the choice of LR vs. SR should be made according to the whole system architecture. If an elbow is located near machinery or in a confined skid or location with limited access, a small radius layout may be ideal. Where space allows and a smoother flow routing is desired, a large-radius elbow is frequently the easier choice.

Selecting the Correct Elbow Angle

The amount the pipe changes direction is given by the elbow angle. A 90-degree elbow is often utilized for a complete quarter turn, while 45-degree elbows are used for a more gentle change of direction. For applications requiring other angles, a bespoke pipe arrangement may also be fabricated.

The angle should be taken from the pipe design and not from the most used. For example, using two 45° elbows instead of one 90° elbow may result in a different routing arrangement, but you will also modify the amount of fittings, welds, pressure losses, and installation locations.

Engineered systems should be evaluated for the angle, radius, and center-to-end dimensions in combination. This avoids a case when the elbow has the right NPS but does not match the actual spool shape.

How Should Material and Wall Thickness Be Matched to Service Conditions?

Carbon Steel Grades and Application Requirements

ASTM A234 WPB is a very popular standard for wrought carbon steel and alloy steel fittings for pressure purposes, including carbon steel elbows. However, it must not be assumed that WPB is suited for all carbon steel elbow applications. The material selection is based on the design temperature, pressure, process media, pipe code, and needs of the project.

In certain cases, extra material requirements may apply due to low-temperature service, corrosive media, or special mechanical property requirements. The material certificate shall conform to the grade requested, and the purchaser shall ensure that the fitting specification corresponds to the project paperwork.

Material must also be examined in relation to the pipe. An elbow could be the right size, but not right if the material grade does not fulfill the standards of the associated pipe system. So this is why experienced procurement teams would usually check both dimension requirements and material paperwork before authorizing a fitting.

Why Wall Thickness Matters Under Pressure？

The thickness of the wall is strongly connected to the pressure and temperature conditions for which the pipe system is built. A thicker-walled elbow will typically have increased resistance to internal pressure and mechanical stresses but may also increase material use, weight, and occasionally manufacturing labor.

The thickest elbow at hand is not always the safest or cheapest choice. The minimum thickness of walls must be specified according to the design code and project requirements. If the design does not need excessive thickness, it might be a cost driver without any real gain.

Also, it must be taken into account that the internal diameter raises the wall thickness, lowering the flow area for a given exterior diameter. In systems where flow capacity and pressure loss are critical, this dimension difference might become crucial to hydraulic calculations.

What Should Buyers Check Before Ordering Carbon Steel Elbows?

Confirm Size, Schedule, Radius, and Angle

Before an order is placed, the basic dimensional information should be complete. NPS identifies the nominal pipe size, while the outside diameter confirms the physical pipe dimension. The required wall thickness or schedule determines the fitting's dimensional and pressure-related characteristics.

The buyer should also specify whether the elbow is long radius or short radius and confirm the required angle. A 90-degree LR elbow and a 90-degree SR elbow may have the same nominal size and material but different center-to-end dimensions and installation requirements.

If the piping system uses metric dimensions, special project standards, or non-standard angles, these requirements should be stated clearly rather than relying on assumptions based on a general catalog.

Check Applicable Standards and End Preparation

Standard compliance is another important part of purchasing. Standard butt-welding elbows are commonly associated with dimensional requirements such as ASME B16.9, while material requirements may be specified separately through standards such as ASTM A234. The exact standards applicable to an order depend on the project, service conditions, and regional requirements.

End preparation also deserves attention because butt-weld fittings need to be compatible with the welding procedure and connected pipe. The fitting's outside diameter, wall thickness, bevel geometry, and end condition should be consistent with the specified requirements.

For critical applications, buyers should also request appropriate quality documentation, such as material test certificates and inspection records where required by the project. These documents provide traceability and make it easier to verify that the supplied fittings match the purchase specification.

Verify the Manufacturer's Dimensional Drawing

A general carbon steel elbow dimensions chart is useful for preliminary selection, but it should not replace the manufacturer's final dimensional drawing when precision matters. When selecting carbon steel elbows, small differences in center-to-end dimensions, wall thickness, end preparation, or manufacturing tolerances can affect a fabricated spool.

This is especially important when elbows are installed close to valves, flanges, pumps, pressure vessels, heat exchangers, or other fixed equipment. Confirming the dimensions before cutting pipe can prevent rework and reduce the risk of misalignment during installation.

A reliable supplier should be able to provide the relevant product dimensions, material grade, applicable standard, manufacturing information, and quality documents required for the project. Clear documentation is often as important to an industrial buyer as the fitting itself.

Why Is Dimensional Accuracy Important for Industrial Piping?

Dimensional accuracy becomes particularly important when carbon steel elbows are used in prefabricated piping spools. Modern industrial projects often involve pipes, valves, flanges, vessels, pumps, and other components that must connect within relatively tight installation spaces. If one fitting has an incorrect dimension, the resulting mismatch can affect several downstream components.

For example, an elbow with the correct nominal size but an incorrect center-to-end dimension may change the location of a flange or valve. Correcting that issue at the installation site may require additional cutting, welding, inspection, and surface treatment. These activities can increase project cost and delay commissioning.

This is why dimensional verification should take place before fabrication rather than after the components arrive at the job site. Buyers and engineers should compare the supplier's drawing with the project piping specification and confirm the dimensions that matter most to the installation.

Conclusion

A reliable understanding of carbon steel elbow dimensions makes it easier to select the right fitting for a specific piping system. NPS, outside diameter, wall thickness, schedule, center-to-end dimension, bend radius, and elbow angle all affect compatibility and installation. Long radius elbows generally provide a more gradual directional change, while short radius elbows can be useful where installation space is restricted.

Material selection is equally important. ASTM A234 WPB is a common specification for carbon steel pressure fittings, but the appropriate grade must be confirmed according to temperature, pressure, medium, design code, and project requirements. Wall thickness should also be selected according to the actual design rather than simply choosing the heaviest available option.

For buyers, the Carbon Steel Elbow Dimensions Chart by Size and Wall Thickness should be treated as a starting point for specifying carbon steel elbows rather than the only source of dimensional information. Before ordering, confirm the NPS, outside diameter, wall thickness or schedule, radius, angle, material grade, applicable standard, end preparation, and required quality documentation. Working with a manufacturer that can provide consistent dimensions and traceable documentation can reduce fabrication problems and help ensure that the finished piping system performs as intended. If you have questions about our carbon steel elbow goods or want to know more, please email us at oudi-04@oudiguandao.com.

FAQ

1. What is the most common material grade for carbon steel elbows?

The most common material grade is ASTM A234 WPB, known for its excellent strength and durability.

2. How does the radius of a carbon steel elbow affect its performance?

Long radius (LR) elbows offer lower pressure drop and smoother flow, while short radius (SR) elbows are more compact but may introduce higher turbulence.

3. Are carbon steel elbows more cost-effective than stainless steel elbows?

Generally, carbon steel elbows are less expensive initially, but the total cost of ownership should be considered, including maintenance and potential corrosion protection.

4. How can corrosion be prevented in carbon steel elbows?

Corrosion can be prevented through measures such as painting, galvanization, specialized coatings, and cathodic protection systems.

References

1. ASME B16.9-2018: Factory-Made Wrought Buttwelding Fittings

2. ASTM A234 / A234M - 19: Standard Specification for Piping Fittings of Wrought Carbon Steel and Alloy Steel for Moderate and High-Temperature Service

3. API 5L: Specification for Line Pipe

4. NACE SP0169: Control of External Corrosion on Underground or Submerged Metallic Piping Systems

5. AWS D1.1/D1.1M: Structural Welding Code - Steel

6. ISO 3419:2012: Non-alloy and alloy steel butt-welding fittings
