Comparing ANSI vs ASME Standards for Pipe Caps

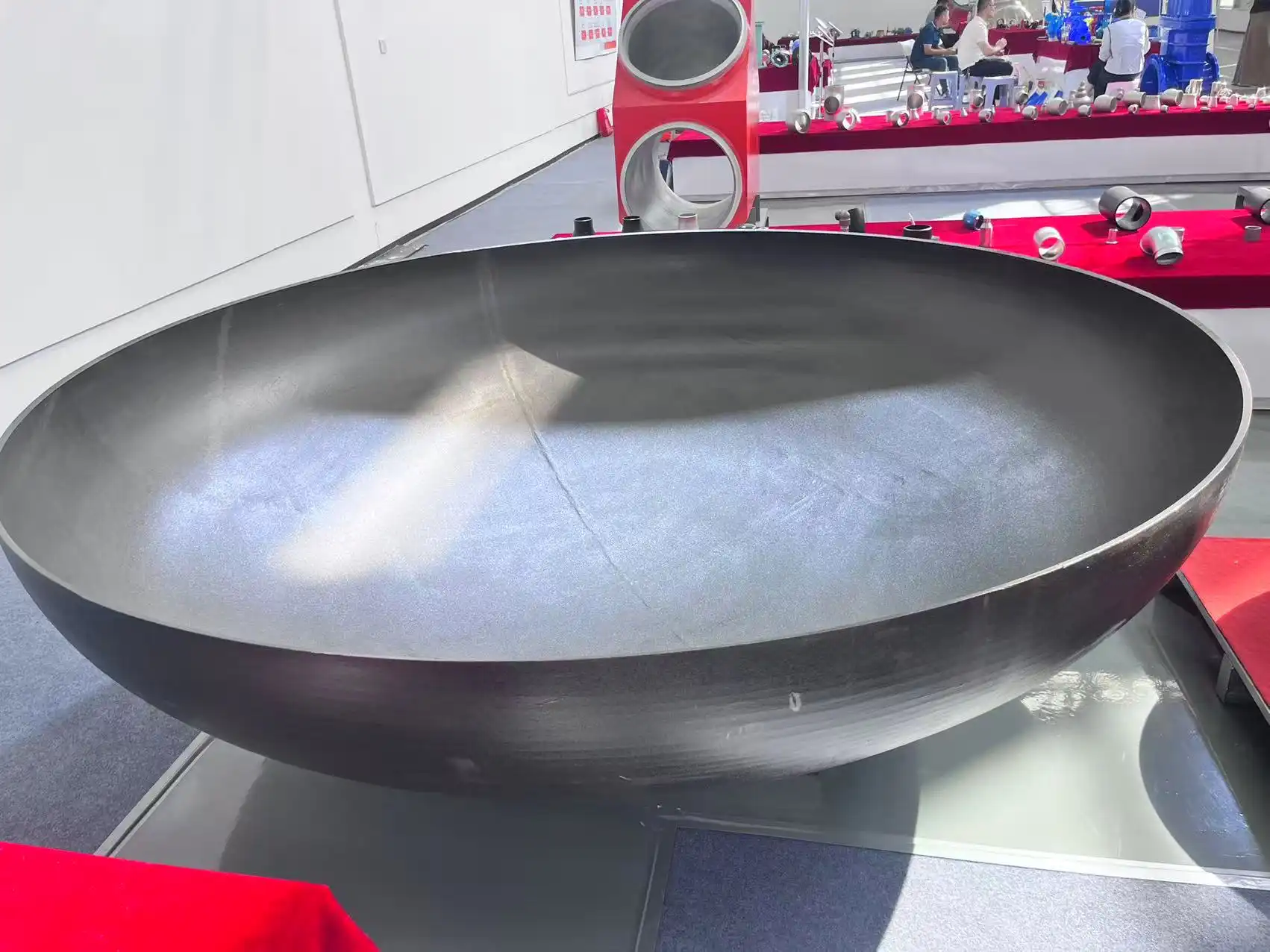

When sourcing an ANSI pipe cap for an industrial piping system, buyers often come across both ANSI and ASME references in supplier quotations, drawings, and technical specifications. The two phrases are closely related to U.S. standards, but they are not interchangeable and may lead to confusion in the procurement process. What all boils down to is that a pipe cap is usually determined by a mix of product standard, material spec, dimensions, wall thickness, and project demands. It is not just an "ANSI" cap or an "ASME" cap. ASME B16.9 is highly important for welded pipe caps since it specifies criteria for wrought buttwelding fittings fabricated in a factory, including overall dimensions, tolerances, ratings, testing, and marking. Per the current ASME listing, B16.9-2024 is the regulating edition for NPS 1/2 to NPS 48 diameters. This helps engineers and purchasing teams to see this link and have a more accurate basis to compare suppliers, evaluate technical papers, and choose an ANSI pipe cap that genuinely matches the pipe system.

Why ANSI and ASME Are Often Confused in Pipe Cap Sourcing？

ANSI Is Not the Same as a Pipe Cap Product Standard

ANSI is the American National Standards Institute, which administers and oversees the U.S. voluntary standards system. When agreement has been achieved and the due process conditions have been satisfied, standards development organizations (SDOs) construct American National Standards and submit them to ANSI for approval as American National Standards (ANS). ANSI doesn't generally publish the technical standards for individual pipe fittings.

This is a major distinction between whether a supplier or buyer speaks about ANSI Pipe Cap. This is a common remark in business communication but should not be immediately construed to mean that ANSI has a specific production standard for pipe caps. For a welded cap, the most relevant questions are usually, what ASME product standard applies, what ASTM material specification is required, and do the dimensions and testing requirements fit the project specification?

ASME Provides the Technical Standards Used for Many Piping Components

ASME (American Society of Mechanical Engineers) develops technical standards for a broad range of mechanical and pressure equipment applications. The ASME B16 series includes standards for valves, flanges, fittings, and gaskets, and these papers are more crucial for procurement of industrial pipes. ASME B16.9 applies to factory-made wrought buttwelding fittings and is intended to be used in combination with other applicable ASME standards and piping codes.

For this reason the supplier may refer to a product as an ANSI Pipe Cap in commercial terms and also refer to ASME B16.9 in the technical documentation. The marketing name is not usually the same as the actual product specification that is being regulated.

What ASME B16.9 Means for an ANSI Pipe Cap？

Dimensions and Manufacturing Consistency

Dimensional compatibility is one of the most essential reasons for specifying an acceptable product standard for a buttweld pipe cap. ASME B16.9 specifies dimensions and tolerance criteria for factory-made wrought buttwelding fittings to assist in the use of fittings manufactured by various certified manufacturers in systems built to the relevant standard.

In practice, this implies that the customer should not specify a cap by nominal pipe size solely. For an ANSI pipe cap, the quote should include the NPS, wall thickness or schedule if necessary, material grade, end preparation, and the appropriate product standard. The cap also has to be suitable with the pipe to which it is to be welded. A nominal size alone does not provide a manufacturer enough information to establish the whole product configuration.

End Preparation and Fit-Up Matter During Installation

The welding end of a pipe cap should properly transition to the mating pipe. The preparation of buttwelding ends may also be subject to the requirements of ASME B16.25, which covers the preparation of buttwelding ends for pipe components linked by welding. It addresses the criteria for welding bevels and the dimensional requirements of the prepared ends.

For an ANSI pipe cap that is to be used in a welded system, this indicates that dimensional correctness should be evaluated together with weld preparation rather than being a distinct purchase detail. Even a cap with a nominally proper diameter might present complications during installation if the wall thickness, end preparation, or dimensional tolerances do not match with the neighboring pipe components.

How Material Specifications Affect Pipe Cap Selection？

Carbon Steel Caps for General Industrial Service

Carbon steel is still a popular choice of material for pipe caps for process pipes, water systems, oil and gas facilities, and general industrial usage. ASTM A234 WPB is one of the most referred material requirements for wrought carbon steel and alloy steel fittings for pressure duty.

However, the material grade should not be picked only because it is widely used. The appropriateness of a grade is dictated by the service temperature, fluid properties, pressure conditions, corrosion environment, welding needs, and governing piping code. A procurement specification that just reads “carbon steel ANSI Pipe Cap” is too open to interpretation and may result in technically diverse estimates from various providers.

Stainless Steel and Corrosion-Resistant Materials

Corrosion resistance is a big factor. So stainless steel is more desirable. Grades 304, 316, and 321 may be provided under the appropriate ASTM material criteria for wrought stainless steel fittings, but the proper grade is a function of the service environment, not an automatic assumption that stainless steel is always the best material.

For example, chloride exposure might be far more demanding on material selection than normal indoor water supply. The corrosion performance may be affected by chemical concentration, temperature, contamination, and time of exposure. In maritime or chemical processing applications, purchasers would consequently have to look at higher alloy materials or project-specific material needs rather than just picking a grade from a typical catalogue.

How Dimensions, Schedule, and Pressure Conditions Work Together？

Schedule Should Not Be Treated as a Standalone Pressure Rating

Pipe caps are often defined with schedules, such as SCH 10, SCH 40, SCH 80, SCH 160, etc., or other designations of wall thickness. Thus, these terms offer a convenient way of specifying wall thickness relationships for standard pipe sizes. Schedule is not the sole determinant of the final allowable working pressure of a completed piping component.

The real pressure capacity is influenced by material strength, design temperature, component geometry, wall thickness, manufacturing constraints, corrosion allowance, and the governing piping code. For this reason, a buyer should not assume that a higher schedule indicates a pipe cap is acceptable for every higher-pressure application.

For tough projects the supplier should be supplied with the actual design circumstances or project specification so that the offered ANSI pipe cap may be tested against the anticipated service and not picked from a schedule number only.

Temperature Changes the Engineering Requirements

Another essential factor is temperature, since the material strength and allowed stress might alter with increasing operating temperature. This is especially true for refinery pipes, petrochemical processing, power generation, and other systems where hot fluids or steam are involved.

The pipe system itself is also influenced by thermal expansion. The pipe cap is a part. Material and connection should be compatible with the adjacent pipe and the stresses produced by the system. Therefore, a technically appropriate cap must be considered as part of the entire pipe design and not assessed as a separate fitting.

What Buyers Should Check Before Ordering an ANSI Pipe Cap？

Start With the Applicable Product Standard

The first step is to identify whether the required cap is a factory-made wrought buttwelding fitting covered by ASME B16.9 or whether another fitting standard is applicable. ASME B16.9 is specifically intended for factory-made wrought buttwelding fittings, so buyers should confirm the connection type and product construction before using it as the governing reference.

The purchase specification should then identify the required material specification, nominal pipe size, wall thickness or schedule, and any project-specific dimensional requirements. If the project requires a particular edition of a standard, that edition should also be stated clearly rather than leaving the supplier to select whichever version is currently available.

Confirm Testing, Marking, and Documentation

A reliable purchase specification should also address inspection and documentation. ASME B16.9 includes requirements relating to testing and marking, but individual projects may impose additional inspection requirements or documentation requirements depending on the service and purchaser specification.

For critical applications, buyers may request material certificates, heat or batch traceability, dimensional inspection records, and additional non-destructive examination where required by the project. These documents are valuable because they allow the purchasing team and quality department to verify that the delivered ANSI pipe cap corresponds to the agreed technical specification.

Where ANSI Pipe Cap Products Are Commonly Used？

Oil and Gas and Petrochemical Piping

Pipe caps are used in oil and gas and petrochemical facilities for applications including pipe termination, temporary isolation, fabrication assemblies, and certain testing or maintenance arrangements. Because these facilities can involve high pressure, elevated temperature, flammable media, or corrosive fluids, material and product-standard compliance becomes especially important.

In these environments, the fitting cannot be selected only according to outside appearance or nominal size. The cap must be compatible with the piping material and the applicable design code, while welding, inspection, and documentation requirements need to be considered as part of the complete procurement package.

Power Generation Systems

Power plants can place demanding requirements on piping components because steam and other process fluids may operate at elevated temperatures and pressures. ANSI pipe cap products used in these systems therefore need to be selected with close attention to material properties, wall thickness, welding compatibility, and the applicable piping or equipment code.

For projects involving boiler and pressure equipment, ASME standards may be used alongside the ASME Boiler and Pressure Vessel Code and applicable piping codes. ASME notes that B16.9 is intended to be used in conjunction with other B16 standards as well as other ASME standards such as the Boiler and Pressure Vessel Code and B31 piping codes.

Water Treatment and General Industrial Piping

Water treatment plants and general industrial facilities may have less demanding operating conditions than high-temperature power systems, but correct dimensional and material selection is still important. A suitable ANSI pipe cap can provide a practical termination or fabrication solution when its material and dimensions correspond to the connected piping.

The purchasing approach can often be simpler for these applications, but buyers should still avoid using “ANSI” as the only technical description. A clear specification reduces the chance of receiving a fitting with an unsuitable material, wall thickness, or connection configuration.

How a Manufacturer Can Support Better Pipe Cap Procurement？

Technical Review Before Production

A capable pipe fitting manufacturer should be able to review the buyer's specifications before production instead of simply processing an order based on a product name. This is particularly important when the customer refers to an “ANSI Pipe Cap” without providing the applicable ASME or ASTM designation.

During the technical review, the manufacturer can confirm the nominal size, material grade, wall thickness, end preparation, applicable standard, marking requirements, and documentation requirements. This process helps identify discrepancies before material is purchased and production begins, which can reduce costly changes later in the project.

Quality Documentation Should Match the Order

The value of a manufacturer is not limited to producing the physical fitting. For industrial buyers, traceability and documentation can be just as important as dimensional accuracy, particularly when the fitting will be installed in a regulated or safety-sensitive system.

Cangzhou Oudi Pipe Fittings Co., Ltd. can position its manufacturing service around this procurement requirement by supplying carbon steel pipe fittings, elbows, tees, reducers, flanges, and pipe caps according to agreed project specifications. Rather than treating the ANSI pipe cap as a standalone product label, the supplier should work with the buyer to confirm the applicable ASME product requirements and ASTM material requirements before production.

For OEMs, EPC contractors, distributors, and industrial procurement teams, this approach is more useful than selecting a cap from a generic catalogue. Providing the pipe size, material, schedule or wall thickness, connection type, quantity, applicable standard, service conditions, and required inspection documents gives the manufacturer enough information to prepare a more accurate quotation and technical proposal.

Conclusion

ANSI and ASME should not be treated as two competing pipe cap standards from which a buyer simply chooses one. ANSI provides oversight within the American National Standards process by accrediting standards developers and approving qualifying standards, while ASME develops technical standards that are directly applicable to many mechanical and piping components.

For a factory-made wrought buttwelding ANSI pipe cap, ASME B16.9 is often the more relevant product standard because it addresses the dimensions, tolerances, ratings, testing, and marking of these fittings. The current ASME listing identifies B16.9-2024 as covering factory-made wrought buttwelding fittings from NPS 1/2 through NPS 48.

The most reliable purchasing decision therefore comes from looking beyond the product name. Buyers should confirm the applicable product standard, material specification, size, wall thickness, welding preparation, operating conditions, inspection requirements, and documentation before placing an order. When these details are clearly defined, an ANSI pipe cap can be evaluated on the basis of actual engineering requirements rather than on ambiguous terminology, helping procurement teams reduce specification errors and select fittings that are appropriate for the intended piping system. For more information or requests, if it's not too much trouble, contact us at oudi-04@oudiguandao.com.

FAQ

1. What are the main differences between ANSI and ASME pipe cap standards?

ANSI standards focus primarily on dimensional specifications and material requirements, while ASME standards provide more comprehensive guidelines, including design, fabrication, inspection, and testing requirements.

2. Which industries typically prefer ASME standards for pipe caps?

Industries such as power generation, oil and gas, and petrochemical often prefer ASME standards, especially for high-pressure and high-temperature applications.

3. Are ANSI pipe caps suitable for all industrial applications?

While ANSI pipe caps are suitable for many general industrial applications, they may not meet the requirements for certain critical or high-risk applications that demand ASME certification.

4. How do quality control requirements differ between ANSI and ASME standards?

ASME standards have more stringent quality control and certification requirements, often requiring ASME certification for manufacturers and third-party inspections for critical components.
