Differences Between Pipe Cap and Pipe Plug: Explained

In industrial piping systems, selecting the right component for closing or protecting a pipe end directly affects system safety, maintenance efficiency, and long-term reliability. Although pipe caps and pipe plugs are both used to block pipe openings, they are designed for different installation methods and working conditions. A lot of people mistake these two parts since they both may keep dust, moisture, dirt, and other things that they don’t want out of the system. However, they have different architectures, different sealing locations, and different usual uses. Engineers, contractors, and buying teams should be aware of the difference between a pipe cap and a pipe plug before making a decision. For external closure, a pipe cap is typically placed over the outer diameter of a pipe. For internal closure, a pipe plug is placed within the pipe aperture. The decision between them is influenced by considerations such as pressure needs, availability, pipe material, connection style, and whether the closure is temporary or permanent. As an experienced provider of industrial pipe fittings, manufacturers often consider these elements together, rather than selecting a component based just on pipe size. Proper pipe closure selection will enhance pipeline protection, decrease maintenance challenges, and assist in sustaining the intended service life of the complete piping system.

Understanding the Basic Design of Pipe Caps and Pipe Plugs

What is a pipe cap, and how does it work?

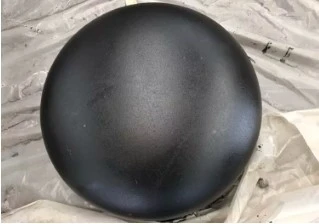

A pipe cap is a kind of fitting that covers the end of a pipe or tube. Pipe caps are not fittings that join two sections of pipe, but rather they cover the exterior end of the pipe to provide a termination point. Pipe caps may be constructed using various connection techniques such as butt welding, threading, or socket welding depending on use.

In industrial applications, welded pipe caps are employed when a permanent closure is needed. Once welded to the pipe end, the cap becomes part of the piping system, providing a robust connection that can resist harsh operating conditions. These caps are extensively utilized in the oil and gas, chemical processing, power generation, and water treatment sectors.

Temporary uses may benefit from the use of detachable pipe caps, as they provide simpler access for inspection, cleaning, transportation, or future extension of the system. For example, pipe caps are placed on pipe sections by manufacturers during storage and shipping to avoid contamination before installation.

The design of the pipe cap enables it to protect the interior of the pipe and the pipe edge. This is especially beneficial if the pipe end requires protection from damage, corrosion, or pollution from the environment.

What is a pipe plug and where is it used?

A pipe plug is a component that enters the inner diameter of a pipe aperture to seal the pipe. It doesn’t coat the outside surface; it seals the inside of the pipe. The pipe plugs are often used for temporary blockage, testing procedures, drainage systems, and maintenance activities when fast installation and removal are needed.

Many pipe plugs employ threaded connections, expansion devices, or sealing parts such as rubber gaskets to maintain contact with the interior surface of the pipe. These are mounted within the pipe. They are beneficial when there is limited room outside the pipe or if covering the exterior of the pipe is cumbersome.

A technician may utilize pipe plugs to isolate a particular portion of a system while conducting pipeline pressure testing or repair work without having to make permanent changes to the piping structure. They are detachable, which is a convenient design for maintenance tasks.

However, pipe caps rely on interior contact surfaces to create a seal; therefore, the internal state of the pipe, surface damage, or wrong size might impact performance. Selection must be appropriate to guarantee reliable sealing.

Key Differences Between Pipe Caps and Pipe Plugs

Installation position creates different sealing methods

Pipe Caps vs. Pipe Plugs—The Main Difference Pipe caps and pipe plugs vary in the way they are installed.

Put a pipe cover over the exterior of the pipe end. It goes around the pipe aperture and provides an exterior seal. So this design protects the whole pipe end. This is quite useful, particularly when you want to cover the exterior of the pipe.

A pipe stopper, however, goes into the pipe aperture. The sealing effectiveness is affected by the contact between the plug and pipe inner wall. This difference makes the two components react differently in installation, inspection, and maintenance.

For permanent plumbing systems, a welded pipe cap is frequently the preferable choice since the connection gets stronger after the welding is done. If you need a temporary closure and will be removing it often, a pipe plug may be a better choice.

Which is the right decision depends on whether permanent sealing, convenient access, or the preservation of pipe structure is the goal.

Connection methods affect application suitability

Another key distinction between these two components is the kind of connection.

Pipe caps have numerous types of connections. For high-pressure industrial pipelines, butt weld pipe caps are often used since they provide a continuous welded connection with strong mechanical strength. Threaded pipe caps are better for smaller piping systems where removal may be needed often.

Mechanical installation techniques are common for pipe plugs. Threaded plugs may be inserted into pipe apertures. Expansion plugs seal within the pipe by using pressure or mechanical force.

When selecting a closure component, engineers often look at the whole pipe system, such as the operating pressure, temperature, fluid properties, and maintenance needs. A component that works well in a low-pressure water system may not be suitable for a high-pressure chemical pipeline.

Pressure performance depends on design rather than component type

One misconception is that one form of closure is always superior to the other at resisting pressure. In actuality, there are a number of engineering elements that determine pressure capacity. material grade; thickness of walls; quality of welding; norms of production; circumstances of operation.

Sealing material, internal pipe condition, installation accuracy, direction of pressure, and temperature limits. In many situations a well-constructed and carefully fitted pipe stopper may do the job well. In permanent piping systems a high-quality pipe cap can provide dependable long-term closure. So engineers have to look at the whole application and not just at the overall reputation of a product category.

Maintenance requirements and accessibility are different

Maintenance is another characteristic that differentiates pipe caps from pipe plugs.

Pipe caps are mounted outside, so it's often easier for workers to check their condition. This exterior location might be helpful in situations where the pipe end has to be regularly seen or protected.

For example, storage facilities may utilize pipe covers to avoid contamination while at the same time keeping the ends of the pipes clearly covered. Workers may rapidly check whether pipe ends are clean and undamaged during installation.

Pipe plugs are typically useful if internal access is needed. They are normally removable without cutting or welding and, thus, are useful for interim repair activities. But personnel may have to check the plug from the inside of the seal to make sure it still works correctly.

The decision between the two frequently hinges on whether the system needs regular access or long-term shutdown.

How to Choose Between Pipe Caps and Pipe Plugs for Different Applications？

Consider the purpose of the pipe closure

The first thing engineers should ask is why the pipe has to be shut down.

If the aim is to permanently seal off a branch of a pipeline or to safeguard an unused pipe end, a pipe cap is typically an appropriate solution. It offers a secure closure and may be incorporated into the pipe system by welding or other techniques of connection.

If temporary isolation for inspection, testing, or repair is the intent, then a pipe plug may give more flexibility since it is easier to remove and reuse.

Knowing the reason for the shutdown helps minimize extra replacement expense and eventual maintenance headaches.

Match the material with the operating environment

Material selection has a crucial effect on the performance of pipe closure.

Carbon steel pipe caps are frequently utilized in typical industrial applications due to their high strength and cost effectiveness. Stainless steel pipe caps are commonly utilized for corrosion-resistant conditions like food processing, chemical handling, or high cleanliness.

Caps for plastic pipes such as PVC are often utilized in water systems, drainage applications, and lightweight piping projects.

The material used should be suitable for the pipe material and the media being conveyed. Before a final selection is made, engineers should examine the danger of corrosion, the temperature exposure, chemical interaction, and the anticipated service conditions.

For example, a component of the right size may be made from a material that is not suited for a corrosive environment, which may reduce the service life.

Check standards, dimensions, and manufacturing quality

Industrial customers should check that pipe caps are to appropriate requirements before buying.

Typical things to consider depending on the application are the following:

• pipe size compatibility, wall thickness requirements, material specifications, manufacturing standards, inspection procedures
• Welded industrial systems might mean standards like ASME B16.9 for butt weld fittings. In industry, material standards like ASTM A234 for carbon and alloy steel fittings or ASTM A403 for stainless steel fittings are also frequent considerations in procurement.

A manufacturer that offers dimensional inspection, material certifications, and quality paperwork will assist in assuring the pipe caps you purchase will fulfill the needs of your project.

Evaluate long-term operating costs

When deciding between pipe caps and pipe plugs, don’t only consider the upfront purchase price.

If a low-cost component needs frequent replacement, creates leakage issues, or increases maintenance time, it might lead to increased expenditures.

A pipe cap that lasts a long time helps minimize maintenance in permanent systems. Replacement expenses may be cut down by adopting a reusable pipe stopper for temporary installations.

The most inexpensive option is one that meets the actual operational needs of the pipeline.

Practical Applications of Pipe Caps and Pipe Plugs in Different Industries

Oil and gas pipeline systems

Pipelines are regularly subject to extreme circumstances during operation, such as pressure, temperature, and corrosion; hence, the pipeline sector needs dependable pipe closure systems. Pipe caps are widely employed in these contexts to permanently seal off portions of pipelines, to safeguard unused connections, or to finish fabrication work prior to system commissioning.

Pipe caps may also be used during the manufacture and transit of the pipeline to prevent extraneous material from entering the inside of the pipe. It is necessary to consider temporary shielding before assembly, since dust, moisture, and debris might damage welding quality or system function after installation.

Pipe plugs are also used in oil & gas maintenance tasks. If a segment of pipeline must be inspected, repaired, or pressure tested, a well-chosen plug may isolate the work area without the need for permanent alterations. “We are using this flexibility to reduce downtime and improve maintenance efficiency.”

However, when employing either component in energy-related applications, engineers will need to carefully consider the pressure ratings and sealing conditions. Pipeline safety is a function of the closure component but also proper installation, material selection, and meeting project requirements.

Chemical processing and industrial manufacturing

Pipe components used in chemical processing plants must be able to endure aggressive fluids, extreme temperatures, and demanding operating conditions. One of the most essential aspects in choosing between pipe caps and pipe plugs in these circumstances is material compatibility.

Stainless steel pipe caps are often used in chemical applications because of their corrosion resistance and ability to retain mechanical strength under demanding situations. With systems that include chemicals that might possibly react with certain metals, the engineers need to make sure the material used is acceptable for long-term contact.

Pipe plugs may be a good choice for equipment repair, as they enable personnel to segregate certain portions of pipe without permanently affecting the overall structure. This is especially beneficial in manufacturing plants where frequent inspection and cleaning operations are needed.

In the case of a pipe cap or pipe plug, the closure element should be chosen according to the chemical qualities of the fluid, pressure, operational temperature range, and maintenance needs.

Water treatment and plumbing systems

Both pipe caps and pipe plugs are used in water treatment facilities and commercial plumbing systems for varied applications.

Pipe caps are typically used to seal the ends of pipes not in use to avoid contamination and preserve the pipeline from exposure to the environment. Contractors may use pipe caps to keep freshly installed piping clean before it is finally connected during building operations.

Temporary pipe plugs are important in water distribution systems in that they enable workers to shut off the flow of water in a particular section during repairs without impacting the whole system.

Whether you choose the one or the other mostly relies on whether the closure is meant to be permanent or temporary. A permanently abandoned branch of a pipe, for example, may need a more secure technique of closing off, whereas a part under repair may need a detachable solution.

Conclusion

Understanding the differences between pipe caps and pipe plugs is essential for engineers, contractors, and purchasing professionals involved in piping system design and maintenance. Although both components are used to close pipe openings, they serve different purposes and provide different advantages depending on the application.

Pipe caps are generally installed over the outside of a pipe end and are widely used for permanent closures, pipe protection, and industrial piping systems that require strong and reliable termination points. Their external design makes them suitable for applications where protecting the pipe end and maintaining long-term system integrity are important.

Pipe plugs are installed inside the pipe opening and are often selected for temporary isolation, testing, and maintenance work. Their removable design provides flexibility when access to the pipeline is required. However, their performance depends heavily on proper sizing, internal pipe conditions, and correct installation.

When choosing between a pipe cap and a pipe plug, engineers should consider more than the basic function of blocking a pipe opening. Factors such as material compatibility, operating pressure, temperature, connection method, maintenance frequency, and industry standards all influence the final decision.

For industrial projects, selecting the right closure component can improve system reliability, reduce maintenance requirements, and prevent unnecessary operating costs. Working with an experienced pipe fitting manufacturer can also help ensure that the selected product meets project specifications and provides dependable performance throughout its service life.

Whether the requirement involves a permanent pipeline termination, temporary protection during transportation, or maintenance isolation, the correct choice between pipe caps and pipe plugs will contribute to a safer and more efficient piping system. By evaluating the actual working environment and technical requirements before purchase, companies can achieve better long-term results and avoid problems caused by unsuitable components.

Please do not hesitate to reach out to us at oudi-04@oudiguandao.com if you require additional information or wish to discuss your specific piping requirements.
