Elbow Fitting Size Guide: From DN15 to DN600+

Choosing the correct elbow fitting is not simply a matter of selecting a number that matches the pipe. Nominal diameter, outer diameter, wall thickness, pressure class, bending radius, material, and relevant manufacturing standard will all play a part in determining whether an elbow will fit properly and operate as intended. A tiny mismatch might cause issues in welding during installation. An improper wall thickness or pressure rating can impact the dependability of the whole pipe system. DN15 to DN600+ provides engineers and buying teams a broad scope of applications, including building water lines, HVAC, chemical processing, municipal pipelines, oil and gas transportation, and other large-diameter industrial systems. Knowing what each size refers to and how it corresponds to the pipe dimensions makes it simpler to pick the correct fitting, compare supplier bids, and prevent expensive modifications after manufacturing has begun.

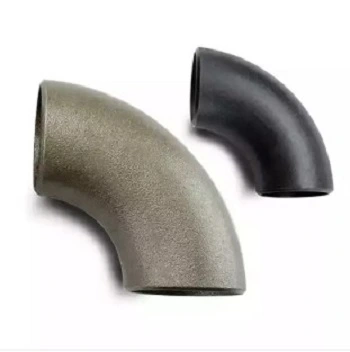

Understanding What DN Means in Elbow Fitting Sizing

DN is the abbreviation for nominal diameter and is often used in international pipe standards. Note that DN is a notional designation and not a direct measurement of the actual interior or outside diameter of the elbow. The exact dimensions are dependent on the appropriate standard, pipe series, wall thickness, and fitting design.

For example, DN15 often correlates to NPS 1/2, DN50 to NPS 2, and DN100 to NPS 4. While these names assist engineers in locating suitable plumbing components, they should not be considered interchangeable measures without referring to the appropriate dimensional standard.

The difference becomes more critical as the pipe size increases. For example, the DN200 elbow should be chosen according to the appropriate pipe outer diameter and wall thickness, not only the DN number. The same idea is valid for DN300, DN400, DN500, DN600, and upwards.

So, when you are buying an elbow, the DN should be seen as the beginning point of the specification and not the whole specification. The supplier should additionally check the dimensional standard and connection requirements prior to producing or delivering the fitting.

How DN15 to DN600+ Covers Different Piping Requirements？

DN15 to DN50 for Smaller Piping Systems

In smaller pipe systems, DN15, DN20, DN25, DN32, DN40, and DN50 are typically found. These sizes are used in building services, water supply, HVAC installations, equipment connections, utility lines, and minor process systems. The choice of material is very much dependent on the service circumstances; hence, these sizes cannot be related to one single material.

For example, stainless steel could be used for applications where corrosion resistance is a consideration, whereas carbon steel might be used for certain industrial utility or process applications. Copper and nonmetallic materials are also employed in appropriate systems; however, material selection is dictated by pipe specification and operating environment.

Installation space might be a big concern for this size range. A tiny pipe may pass through a congested equipment area where the elbow radius and end-to-end dimensions impact the routing of the line. Engineers should thus examine the exact fitting dimensions rather than assume that two elbows with the same DN would take up the same amount of space.

DN65 to DN200 for Industrial and Building Services

The DN65 to DN200 range shows a move toward bigger utility and industrial pipelines. Common intermediate sizes are DN65 and DN80; bigger water, HVAC, fire protection, process, and plant utility systems often are DN100, DN125, DN150, and DN200.

As the diameters become larger, wall thickness and pressure requirements become more and more significant. The DN150 elbow in a low-pressure water system may need significantly different materials and wall thickness than the DN150 elbow in a high-temperature process line.

Need to note connecting technique as well. For permanent welded piping connections, butt-welded elbows are usually utilized, but the wall thickness and end preparation must be suitable for the pipe. If the elbow and pipe have differing wall thicknesses or dimensional requirements, then some extra manufacturing may be required.

This is why a purchase request that merely says "DN150 carbon steel elbow fitting" is typically inadequate for industrial applications. A thorough inquiry should include the appropriate standard, material specification, schedule OR wall thickness, elbow radius, and quantity.

DN250 to DN600 for Large-Diameter Piping

Generally, elbows DN250, DN300, DN350, DN400, DN450, DN500, and DN600 are used in larger flow systems. They may be used in city water systems, power plants, factories, water treatment, transmission lines, and other structures where large amounts of liquid are needed.

The physical size and weight of the fitting become increasingly important as the diameter grows. During project planning, handling, transportation, welding access, support design, and installation equipment may have to be addressed.

With large diameter elbows, more care is needed to maintain dimensional precision. When the fitting is attached to a big-diameter pipe, even a slight dimensional variation might cause trouble with the alignment. The purchaser should verify the dimensional tolerances and inspection criteria to be used before manufacturing with the manufacturer.

DN600 is roughly NPS 24. It is already a big pipe size, but that does not mean it should immediately be called a custom size. Standardized goods may span considerably wide diameter ranges depending on the specified standard and fitting arrangement. Custom manufacture is particularly important when the necessary diameter, wall thickness, radius, material, end preparation, or other specifications are beyond the supplier’s usual production range.

Why Pipe Schedule Matters Alongside DN Size？

DN tells you the nominal pipe size, but it does not tell you the wall thickness. This is where schedule or another specified wall thickness becomes important.

Two pipes with the same nominal diameter can have different wall thicknesses. The corresponding elbow must be suitable for the pipe and the service conditions. For butt welded systems, the ends of the elbow need to provide a suitable transition to the pipe so that welding and alignment can be completed correctly.

For example, selecting a DN100 elbow without specifying the required wall thickness may leave the supplier with insufficient information to determine the correct product configuration. If the project requires a particular schedule, that requirement should be included in the purchase specification.

Temperature and pressure also influence material and wall thickness decisions. A fitting used for a relatively mild water service does not necessarily have the same requirements as one installed in a high-temperature process line. The design engineer should therefore establish the pressure and temperature envelope before finalizing the elbow specification.

Choosing Between Long-Radius and Short-Radius Elbows

Elbow size is closely related to bending radius, but the two should not be confused. Long-radius and short-radius elbows can have the same nominal diameter while occupying different amounts of space and producing different flow behaviors.

A long radius elbow has a larger centerline radius and is commonly selected where smoother directional changes and lower localized flow disturbance are desirable. This can be particularly useful in process piping and systems where pressure loss is an important design consideration.

A short-radius elbow has a tighter bend and can be useful when installation space is limited. However, the tighter geometry may produce greater local flow disturbance than a comparable long-radius configuration. The choice should therefore be based on the piping layout, hydraulic requirements, applicable standard, and project specification rather than simply choosing the elbow that takes up less space.

For larger industrial systems, the radius should be confirmed together with the DN size because the actual face-to-face and center-to-end dimensions can directly affect pipe routing and support locations.

Matching the Elbow to the Actual Pipe

A correct DN designation does not guarantee that an elbow will physically connect to the pipe. Engineers should verify the pipe outside diameter, wall thickness, dimensional standard, and connection type before placing an order.

This is particularly important when a project combines components from different standards or suppliers. A pipe may be specified according to a one-dimensional system, while an elbow fitting is quoted according to another. Although the nominal sizes may appear similar, differences in outside diameter or end dimensions can create installation problems.

For welded systems, the elbow end should also be compatible with the pipe wall thickness and welding procedure. If there is a significant difference between the two components, the project may require a transition or additional fabrication according to the engineering specification.

For this reason, procurement teams should provide the complete piping specification whenever possible. Supplying only the DN value may result in unnecessary clarification, quotation delays, or an incorrect product selection.

Selecting the Right Elbow Standard

ASME B16.9 for Factory-Made Butt Weld Fittings

ASME B16.9 is one of the key standards used for factory-made wrought butt-welding fittings. It establishes dimensional and tolerance requirements for fittings such as elbows, tees, reducers, and caps.

When an elbow fitting is specified under ASME B16.9, buyers should still confirm other requirements such as material grade and wall thickness. Dimensional compliance with B16.9 does not by itself define every aspect of the material or service suitability.

For projects using ASME-based piping specifications, referencing the correct standard in the purchase order provides a much clearer basis for manufacturing and inspection.

EN 10253 for European Piping Applications

EN 10253 covers butt welding pipe fittings and includes requirements that vary according to the relevant part of the standard. European projects may therefore specify DN dimensions together with a particular EN 10253 part, material, type, and other project requirements.

A buyer should avoid simply writing “EN elbow” because that does not provide enough information for a manufacturer to determine the exact product. The required standard edition, fitting type, material specification, dimensions, and inspection requirements should be confirmed in the technical documentation.

Material Standards Need to Be Considered Separately

Dimensional standards and material standards serve different purposes. For example, a project may use ASME B16.9 for fitting dimensions while referring to a separate ASTM material specification for carbon steel or alloy steel.

This distinction is important when evaluating supplier quotations. A fitting can have the correct dimensions but still fail to meet the project's material requirements if the wrong grade or manufacturing condition is supplied.

For demanding applications, buyers should also confirm whether the project requires heat treatment, impact testing, chemical analysis, mechanical testing, nondestructive examination, material certificates, or other inspection documentation.

What Buyers Should Confirm Before Ordering？

A good elbow fitting purchase specification should provide enough information for the manufacturer to identify the exact product without relying on assumptions. DN size is important, but it is only one part of the technical requirement.

The inquiry should normally identify the nominal diameter, elbow type, radius, material grade, wall thickness or schedule, applicable dimensional standard, and connection requirements. For projects with special conditions, operating pressure, temperature, fluid characteristics, corrosion requirements, coating requirements, and inspection requirements may also need to be specified.

For example, an industrial buyer might need a DN300 long-radius carbon steel butt-welding elbow manufactured according to a specified standard and supplied with a particular wall thickness and inspection documentation. This is much more useful to a manufacturer than a request simply asking for a DN300 elbow.

Drawings become particularly valuable when the project requires nonstandard dimensions. If the elbow has a special centerline radius, unusual end preparation, modified wall thickness, or other dimensional requirements, supplying a drawing can reduce communication errors and speed up quotation and production review.

How to Evaluate a Supplier for Large-Diameter Elbows？

For DN250 and larger products, supplier capability deserves more attention because manufacturing, inspection, handling, and logistics become more demanding. Buyers should look beyond the lowest unit price and evaluate whether the supplier can consistently manufacture the required dimensions and materials.

Production capability is especially important when the project includes multiple diameters or a mixture of standard and custom fittings. A supplier that can handle a broader size range may simplify procurement and reduce the need to coordinate different manufacturers.

Quality documentation should also match the requirements of the project. Depending on the application, buyers may need material certificates, dimensional inspection reports, test reports, and other quality records. The specific documentation should be agreed upon before production rather than requested after the fittings have already been manufactured.

For export projects, packaging and transportation also become part of the purchasing decision. Large diameter elbows require appropriate protection against impact, moisture, contamination, and deformation during handling and shipping. Confirming these arrangements in advance can help prevent avoidable delivery problems.

Oudi Pipe Fitting Solutions for Different Size Requirements

Oudi provides elbow fitting solutions for piping projects that require different diameters, materials, configurations, and dimensional requirements. Its product range includes carbon steel and stainless steel options as well as long radius, short radius, and customized configurations for industrial applications.

For buyers working on a project rather than a simple replacement order, the most efficient approach is to provide the required DN size together with the material, applicable standard, wall thickness or schedule, elbow radius, quantity, and any special dimensional requirements. This gives the manufacturer a clear technical basis for evaluating the order.

For large diameter or customized projects, engineering drawings and project specifications can further improve communication. They allow the manufacturer to review dimensions and production requirements before confirming the quotation, which can reduce the risk of receiving a fitting that does not match the piping system.

Oudi's experience with different industrial piping requirements can also be useful when the project involves several elbow sizes or special manufacturing requirements. Instead of treating DN15 and DN600 as simply different numbers in a product catalog, each size should be evaluated according to the pipe system in which it will actually operate.

Conclusion

Choosing an elbow fitting from DN15 to DN600+ requires more than matching the nominal diameter shown on a pipe drawing. DN identifies the nominal size, but the final selection also depends on the actual pipe dimensions, wall thickness, schedule, bending radius, material, connection method, operating conditions, and applicable manufacturing standard.

Smaller sizes such as DN15 to DN50 are commonly used where compact dimensions and easy routing are important, while DN65 through DN200 covers a broad range of building services and industrial piping. From DN250 through DN600 and beyond, dimensional accuracy, handling, inspection, and project-specific requirements become increasingly important.

A reliable purchasing process starts with a complete technical specification. By confirming the DN size together with the required standard, material, wall thickness, radius, and connection details, engineers and buyers can reduce installation problems and avoid unnecessary changes after production. For customized or large-diameter projects, drawings and detailed project requirements provide an even stronger basis for accurate manufacturing and quotation.

Need technical support or a quotation?

If you are sourcing elbow fittings for an industrial piping project, providing complete technical information at the quotation stage can make the process faster and more accurate. Oudi can review requirements for different sizes and configurations, including standard and customized elbow fittings, according to the project specification.

When requesting a quotation, include the required DN size, material, standard, wall thickness or schedule, elbow radius, quantity, and drawing if a special configuration is required. With these details available, the supplier can better evaluate manufacturing feasibility, confirm the appropriate product configuration, and prepare a quotation based on the actual project requirements. Email: oudi-04@oudiguandao.com

References

1. Smith, J. R. (2019). Comprehensive Guide to Piping and Plumbing Fittings. New York: Industrial Press.

2. Johnson, A. L. (2020). Industrial Piping Systems: Design and Installation. Chicago: American Technical Publishers.

3. European Committee for Standardization. (2018). EN 10253: Butt-welding pipe fittings. Brussels: CEN.

4. American Society of Mechanical Engineers. (2017). ASME B16.9: Factory-Made Wrought Buttwelding Fittings. New York: ASME.

5. International Organization for Standardization. (2016). ISO 3419: Non-alloy and alloy steel butt-welding fittings. Geneva: ISO.

6. Williams, P. K. (2021). Fluid Dynamics in Piping Systems: Optimizing Flow with Proper Fitting Selection. Journal of Mechanical Engineering, 45(3), 178-195.
