How Seamless Pipe Tees Differ from Welded Pipe Tees?

In industrial piping, a tee fitting is used when a pipeline needs to divide or combine flow between the main run and a branch line. Although seamless and welded pipe tees can have the same basic T-shaped configuration, they are not manufactured in the same way. The difference begins with the condition of the starting material and continues through forming, welding, heat treatment, inspection, and final qualification. Seamless pipe tees are generally formed from seamless tubular material or a solid billet without a longitudinal weld seam in the finished fitting. Welded pipe tees, in contrast, are made from welded pipe, plate or other prepared parts and rely on welding to form or complete the fitting geometry. This difference may alter the way the fit is judged, especially if a pipe system is subjected to severe pressure, temperature or service requirements. However, the manufacturing technique should not be taken as the main element determining fitting performance. There are several considerations to take into account when choosing a tee, including material grade, wall thickness, dimensions, appropriate manufacturing standard, design temperature, pressure requirements, heat treatment and inspection requirements. Knowing these characteristics may help engineers and buying groups decide whether a seamless or welded design makes sense for a given pipe system.

How Manufacturing Routes Shape Tee Construction？

The main difference between seamless and welded pipe tees is the form of the end of the fitting. This distinction influences the existence of welds, the continuity of the material, the inspection procedure and the sizes and configurations that may be made.

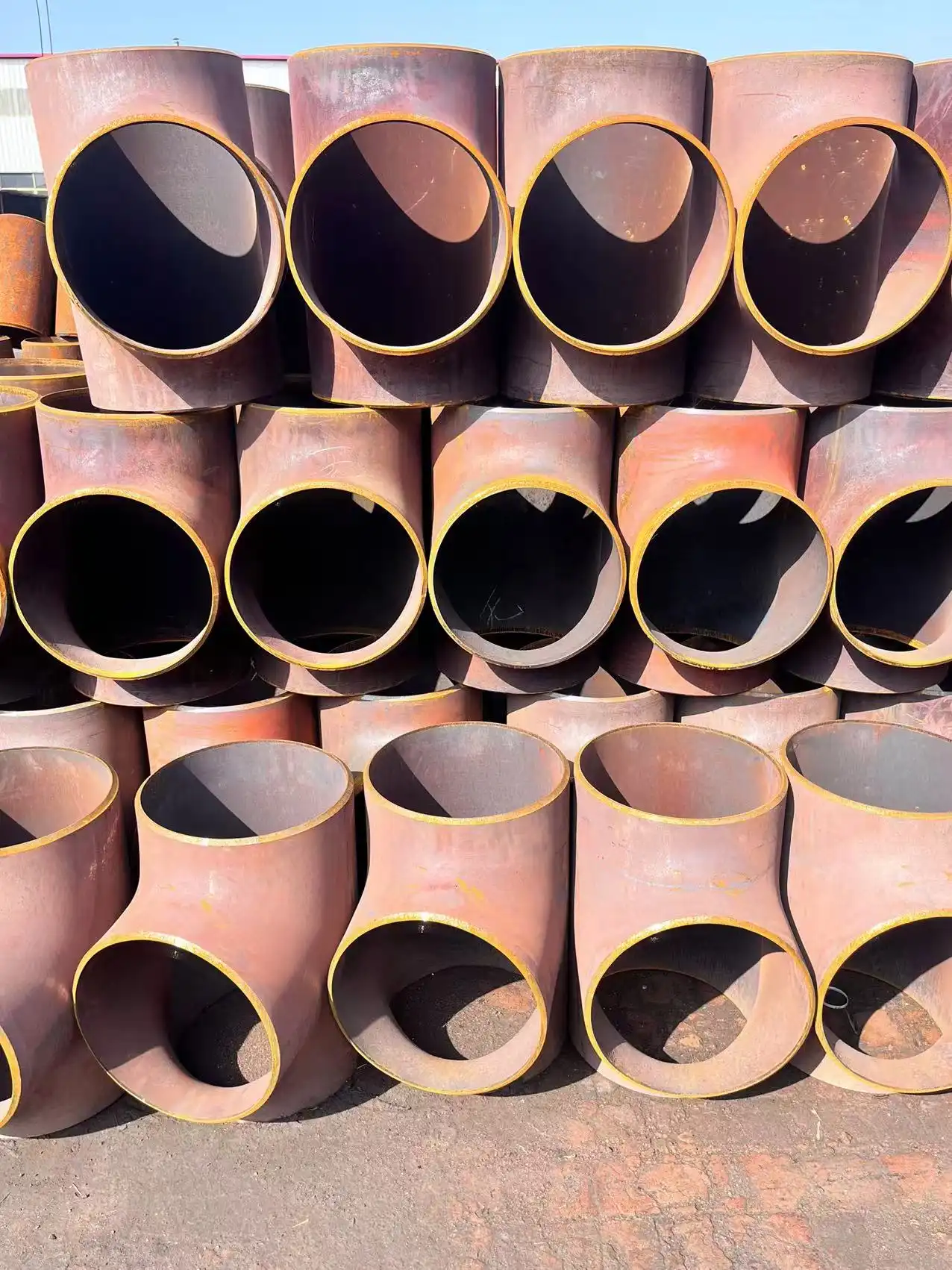

Forming Seamless Pipe Tees

The body of the fitting is made without a longitudinal weld seam in the seamless tee. Depending on the production method and product specification, a seamless tube blank or billet is heated and shaped into the desired branch configuration. The T-shaped geometry may be developed by hot forming, pressing, extrusion, or other controlled forming procedures.

Dimensional control is very crucial in production since the branch and run need to satisfy the stipulated outer diameter, wall thickness, centre-to-end dimensions and other criteria. The forming process also has to be managed carefully to prevent excessive thinning or distortion in locations where the geometry varies.

One feature of seamless construction is the lack of a welded seam in the completed body. This implies there is no longitudinal weld seam or branch-to-run fabrication weld to be examined as part of the fitting body. But even a perfect build does not eliminate the necessity for inspection. Material discontinuities, dimensional variations, surface flaws and any other production problems must still be managed according to the appropriate standard.

Fabricating Welded Pipe Tees

Welded tees are made using a fabrication procedure, in which prepared pipe sections, plate or other components are shaped and linked to make the finished fitting. Welding therefore becomes a vital element of the production process.

When competent techniques, sufficient filler materials, trained staff and proper inspection practices are applied, modern welding processes may be made to generate consistent and highly dependable welds. This is the reason why it would be wrong to assume that all welded tees are not appropriate for rigors duty. The actual quality of a welded fitting is mostly determined by its design, fabrication, heat treatment if necessary and inspection.

A practical benefit of welded structure is flexibility of fabrication. In fabrication techniques huge diameters, odd wall thicknesses, non-standard configurations, and other dimensions that are more difficult or uneconomical to create via seamless forming may be accommodated. This is applicable to big-diameter pipe systems and applications requiring customised fabrication.

Pressure Performance Depends on More Than Seamless Construction

One of the major reasons engineers evaluate seamless and welded pipe tees is pressure capabilities, notably in oil and gas, petrochemical, power generating, and other industrial systems. But pressure performance should be viewed as a whole technical concern, not just whether the tee is flawless or not.

Why the Absence of a Weld Matters？

A seamless pipe tee has no weld seam inside the fitting body. This removes one class of weld concerns, such as weld shape, weld discontinuities, heat-affected zones, and the necessity to assess the integrity of a fabrication weld, while seamless pipe tees provide a fitting design without an internal weld seam.

This feature might be an advantage when a pipe system is built for severe duty. The continuous body does simplify certain parts of the mechanical examination since there is no welded junction inside the fitting to examine in the same manner as a constructed connection.

At the same time, the lack of a weld does not inherently suggest that a seamless tee can handle a greater permissible pressure than every welded tee. The pressure rating is a function of the fitting standard, material, size, wall thickness, design temperature, and the needs of the project. Therefore, engineers should confirm the real pressure-temperature rating and not only choose a fitting because it is called seamless.

Wall Thickness and Material Grade Remain Critical

The pressure ability of two tees of different materials might be significantly varied, albeit they are of the same nominal size. The materials, such as carbon steel, stainless steel, alloy steel, etc., react in diverse ways toward temperature, pressure, corrosion, and mechanical loads.

Wall thickness is just as critical. No matter the manufacturing technique, if the tee has inadequate wall thickness, it may not meet the essential design parameters. In contrast, if a welded tee is correctly defined and if its material, weld technique, inspection, and dimensions meet the appropriate criteria, it will give reliable service.

For this reason, buying teams should analyze the whole specification rather than use “seamless” to replace an engineering calculation or code-based option.

Inspection Requirements Reveal an Important Difference

Another area where seamless and welded tees are treated differently is quality assurance. The inspection must be correct for both kinds; however, the emphasis of the inspection will differ based on the production method.

Testing Seamless Tee Bodies

As required by the appropriate specification or purchase order, seamless pipe tees may be subject to dimensional inspections, visual inspections, material verifications, and non-destructive testing. Ultrasonic testing is utilized to find internal discontinuities, and magnetic particle or other relevant surface inspection techniques may be employed for the material and specification.

“Seamless” is not to be construed as the same inspection program. The tests to be performed, the acceptance criteria to be created, and the documentation to be furnished are determined by the standards applicable to the product and the needs of the customer.

This is critical for projects where traceability and inspection records are part of the procurement process. Where such traceability is necessary, a supplier should be able to produce paperwork that traces the final tee back to material and production records.

Examining Welded Areas in Fabricated Tees

Welded tees need more care to the welded regions, since welding creates a junction that has to be certified and inspected. Inspection might be visual examination, radiographic testing, ultrasonic testing, magnetic particle testing, or liquid penetrant testing, depending on the purpose.

For challenging projects, the quality system might additionally include welding method qualification and welder qualification. Certain material grades or thicknesses or service circumstances may necessitate heat treatment, and post-weld inspection might assist in discovering discontinuities not seen in the course of the standard visual examination.

And thus a welded tee is not only a cheaper option than a seamless tee. It’s a new production approach with a different emphasis on quality control.”

Corrosion Performance Requires a More Careful Comparison

Corrosion resistance is frequently mentioned when comparing seamless and welded fittings, but this topic needs more careful treatment than the original article suggests. The absence of a weld can remove some weld-related corrosion considerations, but it does not make a seamless tee inherently corrosion-proof.

Weld Areas Can Affect Local Corrosion Behavior

In some materials, welding changes the local microstructure around the weld and heat-affected zone. For seamless pipe tees, depending on the alloy, welding procedure, heat input, post-weld treatment, and service environment, these changes can influence localized corrosion behavior.

A seamless tee avoids these specific weld and heat-affected-zone considerations within the fitting body. This can be an advantage for certain applications, particularly when the material and service environment make weld integrity or weld-zone corrosion an important design concern.

However, the overall corrosion performance of the tee is still controlled primarily by material selection and operating conditions. A carbon steel seamless tee, for example, cannot be considered highly corrosion-resistant simply because it has no weld seam.

Surface Condition Also Affects Service Performance

Surface condition can influence how a fitting behaves in a corrosive or demanding flow environment. Roughness, scale, contamination, fabrication marks, and localized imperfections may all be relevant depending on the process medium and operating conditions.

Seamless forming can provide a consistent product surface, but the actual surface condition depends on the manufacturing process and any subsequent treatment. If a project has strict internal or external surface requirements, these requirements should be stated clearly in the purchase specification rather than assumed from the term “seamless.”

For aggressive chemical service, the more important question is usually whether the selected material is compatible with the process medium at the expected temperature and concentration. Duplex stainless steel, nickel alloys, high-alloy stainless steels, and other specialized materials may be selected for such applications when their properties meet the project requirements.

Size and Application Can Change the Preferred Choice

The best choice between seamless and welded construction often depends on the scale and purpose of the piping system. A fitting that is appropriate for a high-pressure process line may not be the most economical option for a large-diameter utility system.

Where Seamless Tees Are Often Considered？

Seamless tees are commonly considered for piping systems where a seamless construction route is specified by the project or where the absence of a fabrication weld provides a meaningful engineering advantage. Process piping, high-pressure lines, oil and gas facilities, chemical plants, and power-related systems can have specifications that favor seamless fittings for particular services.

The important point is that the application itself does not automatically require seamless construction. Instead, the project specification, applicable code, material requirements, pressure-temperature conditions, and inspection level determine whether a seamless tee is appropriate.

Where Welded Tees Can Be Practical？

Welded tees can be practical for large-diameter systems, customized configurations, and applications where fabrication offers a better manufacturing or cost solution. They can also be appropriate when the welding process and inspection requirements are fully controlled and the finished fitting meets the applicable standard.

For large piping projects, the availability of material, manufacturing lead time, required dimensions, and transportation requirements can also influence the decision. When selecting seamless pipe tees, welded fabrication may in some cases provide greater flexibility than a seamless manufacturing route.

What Should Buyers Confirm Before Ordering a Pipe Tee?

Selecting the correct tee requires more than deciding between seamless and welded construction. Before placing an order, the purchaser should confirm the nominal pipe size, outside diameter, wall thickness or schedule, material grade, end connection, applicable standard, pressure and temperature conditions, and inspection requirements.

The project may also require specific documentation such as a material test certificate, dimensional inspection report, non-destructive testing records, heat-treatment records, or other quality documents. These requirements should be established before production rather than added after the fitting has already been manufactured.

For international procurement, buyers should also consider packaging, marking, traceability, certification, export documentation, and delivery requirements. A supplier experienced in industrial pipe fittings should be able to clarify which manufacturing and inspection documents are available for the selected tee.

This approach helps prevent a common procurement problem: choosing a fitting based on one attractive specification while overlooking another parameter that ultimately determines whether the product can be accepted by the project engineer or end user.

How to Make the Final Selection Between Seamless and Welded Tees？

The choice between seamless and welded pipe tees should ultimately be based on the complete operating and procurement requirements of the piping system. Seamless construction removes welded joints from the fitting body and can be advantageous when the project specification calls for seamless fittings or when weld-related considerations are important.

Welded construction, however, can offer manufacturing flexibility and may be a practical solution for large or customized fittings. A properly manufactured and inspected welded tee can provide reliable service when it meets the required material, dimensional, welding, and inspection specifications.

For engineers, the most useful comparison is therefore not simply “seamless versus welded.” The better question is whether the selected fitting satisfies the required standard and design conditions with an appropriate manufacturing route. Pressure, temperature, material compatibility, dimensions, inspection, service environment, and project documentation should all be evaluated together.

Conclusion

The primary difference between seamless and welded pipe tees is their manufacturing route. Seamless pipe tees are formed without a welded joint in the fitting body, while welded pipe tees rely on fabrication and welding to achieve the required configuration. This difference affects material continuity, inspection procedures, manufacturing flexibility, and the way certain service conditions are evaluated.

Seamless construction can be advantageous for applications where the project specification requires seamless fittings or where eliminating a fabrication weld is an important consideration. Welded tees can provide useful flexibility for large-diameter or customized applications when qualified welding procedures and appropriate inspection are applied.

For this reason, buyers should not select a tee based solely on the word “seamless.” The material grade, wall thickness, dimensions, pressure-temperature requirements, applicable standards, inspection scope, and service environment all need to be considered before an order is placed. Seamless pipe tees from an experienced manufacturer such as Cangzhou Oudi Pipe Manufacture Co., Ltd. can be considered when seamless construction matches the technical requirements of the project, while the final specification should always be confirmed against the applicable engineering and procurement standards. For technical support, product specifications, or quotation requests, please contact our sales team at oudi-04@oudiguandao.com.

FAQ

1. What is the main difference between seamless and welded pipe tees?

Seamless pipe tees are manufactured from a single piece of metal without welds, while welded pipe tees are created by joining separate pieces together.

2. In which applications are seamless pipe tees preferred?

Seamless pipe tees are preferred in high-pressure applications, corrosive environments, and industries requiring maximum reliability, such as oil and gas, chemical processing, and power generation.

3. Do seamless pipe tees have higher pressure ratings than welded pipe tees?

Yes, seamless pipe tees typically offer higher pressure ratings compared to welded pipe tees of the same size and material due to their uniform structure and absence of weld joints.

4. How does the manufacturing process differ between seamless and welded pipe tees?

Seamless pipe tees are produced from a single metal billet through piercing and forging, while welded pipe tees are fabricated by cutting, shaping, and welding separate pieces together.
