What Is the Pressure Rating of a Sch 40 Pipe Tee?

When engineers or purchasing teams ask about the pressure rating of a Sch 40 pipe tee, the answer cannot be determined from the schedule number alone. Schedule 40 is one specific set of wall thicknesses for a given nominal pipe size. Other factors that affect the pressure a tee may safely carry include the material, size of the fitting, temperature, manufacturing standard, kind of connection, and piping code under which the tee is built. Both a carbon steel tee and a PVC tee can be a schedule 40. But the pressure they can take may be considerably different. Sch 40 pipe tees are widely used to form a branch connection in a piping system so that one line may split into another line. A tee creates a branch opening into the main run; therefore, its pressure capability has to be viewed as a fitting, not just as an extension of the straight pipe. So instead of referring to a single generic PSI figure, the exact allowed pressure has to be checked from the corresponding product specification and manufacturer documentation. This difference is important to engineers, contractors, and buying teams as it pertains to choosing fittings for water systems, industrial process lines, utilities, and other pipe applications. The below parts talk about the meaning of schedule 40, the effect of material and temperature on pressure capacity, and the checklist to be considered when obtaining a Sch 40 pipe tee.

What Schedule 40 Actually Tells You About a Pipe Tee？

Schedule Number and Wall Thickness

Schedule 40 is a classification that relates mostly to the wall thickness of pipe. For a certain nominal pipe size, Schedule 40 refers to a particular wall thickness; this thickness, however, is not consistent for every pipe diameter. For example, a 4-inch Schedule 40 pipe will have a different wall thickness than a 1-inch Schedule 40 pipe.

This is crucial since the relationship of wall thickness to pipe diameter affects the pressure capacity. For a given internal pressure, a bigger diameter means that the circumferential stress is likewise higher. In general, as wall thickness increases, resistance to internal pressure increases. So it is not accurate to believe a bigger Schedule 40 tee would automatically have a greater pressure rating just because its physical wall may be thicker.

The tee also has more difficult geometry than a straight pipe since the branch connection disrupts the continuous cylindrical wall. Thus, the run and branch should be considered in the whole fitting design.

Why Schedule 40 Is Not a Universal PSI Rating？

There isn’t a psi that is right for all Sch 40 pipe tees. The same nominal size and schedule may be made of various materials, and each material has distinct mechanical and thermal properties. The relevant fitting standard may also influence the way in which the component is dimensioned and produced.

For industrial carbon steel butt-weld tees, the fitting is constructed according to standards such as ASME B16.9, and the material is defined using an ASTM material grade, for example. The permissible pressure for the pipe system is defined based on the governing design code, material qualities, temperature restrictions, and other design constraints.

Hence, a statement such as “a 2-inch Sch 40 pipe tee is rated at 2,000 PSI” should not be considered a universal standard. A pressure value is useful only if its material, temperature, size, standard, and rating basis are understood.

How Material Changes the Pressure Capacity of a Sch 40 Pipe Tee？

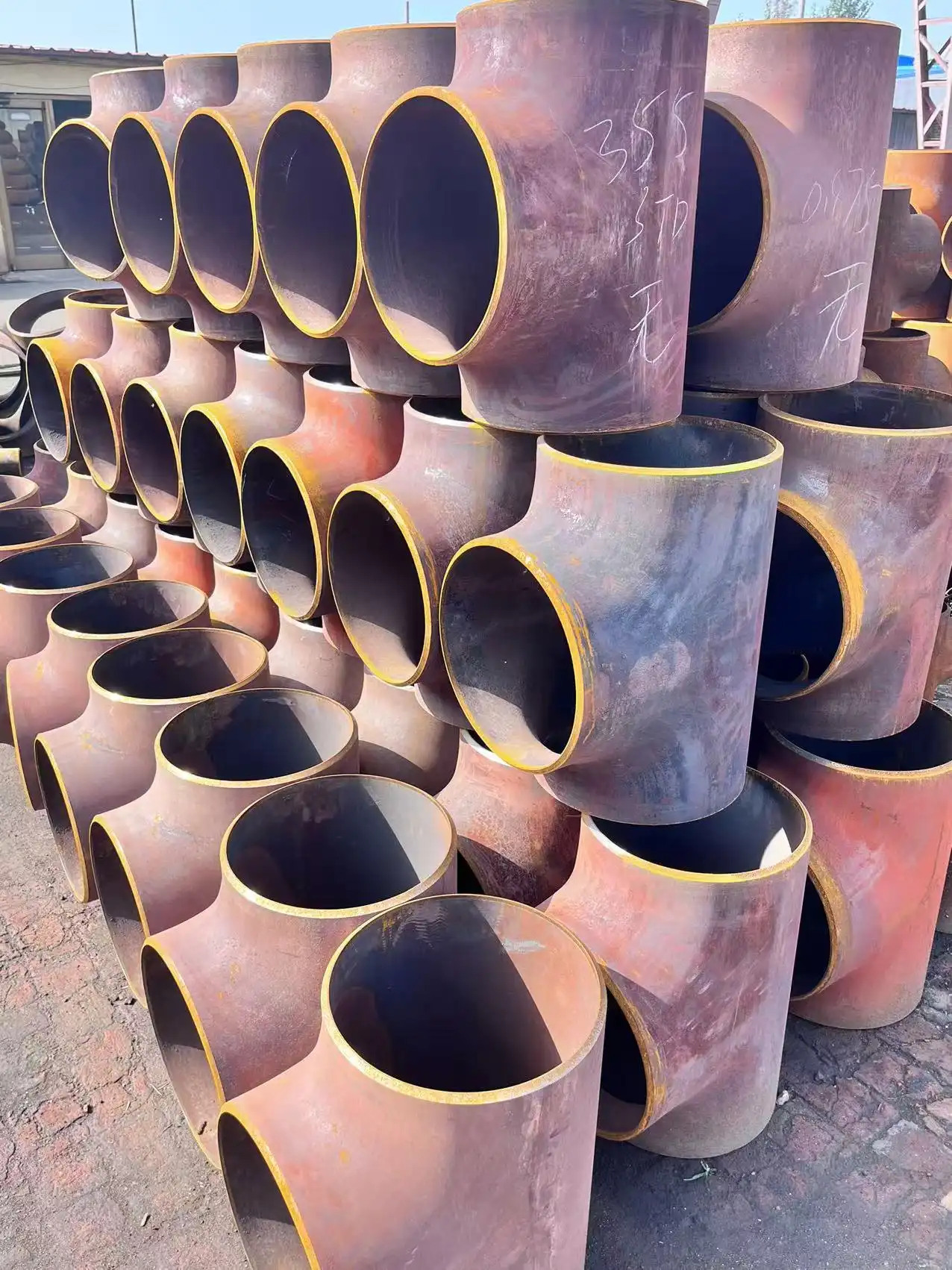

Carbon Steel Tees for Industrial Piping

Carbon steel is often the material of choice for industrial pipe tees because it offers a good balance of mechanical strength, ease of fabrication, and affordability. Carbon steel Sch 40 pipe tees are suitable for water, utility, process, oil and gas, and general industrial piping systems, provided the material and fitting standard are suitable for the service.

It’s not only the Schedule 40 classification that determines the pressure capabilities of a carbon steel tee. The maximum allowed pressure depends on the material grade, the nominal size, the wall thickness, the operating temperature, the fitting geometry, and the design code. Many metallic materials show a reduction in permitted stress with increasing temperature. Therefore, a component that is suitable under ambient circumstances may need a lower allowable pressure at a higher temperature.

And that’s why generic pressure readings should be regarded as preliminary reference information only. For each real project the engineering team should validate the material grade and appropriate pressure-temperature requirements from the manufacturer’s technical literature and the governing pipe code.

Stainless Steel Tees and Temperature Service

When corrosion resistance, cleanliness, or certain temperature performance is more essential than the lower first cost associated with some carbon steel applications, stainless steel Sch 40 pipe tees are preferred. 304 and 316 are the two most common grades of stainless steel. However, these grades should not be used interchangeably. Their chemical composition and mechanical qualities are different.

Temperature also influences the pressure performance of stainless steel. A stainless steel tee may have usable strength at extreme temperatures, but the allowed pressure must be determined for the individual alloy, product specification, and operating state. Although stainless steel typically has superior corrosion resistance, it doesn’t imply that all stainless steel Sch 40 pipe tees have a greater pressure rating than a carbon steel tee of the same size.

When working with high temperatures, corrosive media, and difficult process conditions, the material grade has to be selected with the pressure and temperature requirements and not separately.

PVC Tees Require a Different Rating Approach

PVC Sch 40 pipe tees are often used with water, drainage, irrigation, and utility applications where the pressure is not too high. PVC is lightweight and resistant to many kinds of corrosion. PVC reacts differently to the effect of temperature than steel. So pressure ratings for PVC fittings must be tested to the appropriate plastic pipe and fitting standards.

A PVC fitting may have a published pressure rating at a certain reference temperature, but the permitted working pressure might drop as the operating temperature rises. Thus, a pressure rating for a PVC Sch 40 pipe tee at around room temperature should not be immediately used for a hotter service.

Prior to use of the fitting in a pressurized system, verify the particular fitting standard, PVC material, nominal size, connecting technique, and the manufacturer's published pressure-temperature information. This is a more reliable method than assigning a single PSI number to each PVC Sch 40 tee.

How Temperature Affects the Working Pressure of a Sch 40 Pipe Tee？

Pressure Ratings Must Be Considered With Temperature

Always consider pressure and temperature combined while choosing a Sch 40 pipe tee. The mechanical characteristics of metallic and plastic materials may vary with operation temperature, but the type and magnitude of the changes are quite different.

For metal fittings, the allowed stresses may be reduced at increased temperatures depending on the grade of material and design code. Thus, a fitting rated for a certain pressure at ambient temperature may be limited to a lower allowed pressure in a high-temperature process line.

Generally, PVC is more susceptible to temperature variations. It allows that, and the pressure decreases dramatically with increasing temperature. Therefore, a PVC Sch 40 pipe tee that looks to be able to handle a certain pressure at room temperature would not be acceptable for the same pressure at a much higher operating temperature.

The proper way to determine whether a certain tee is appropriate is to determine the maximum operating temperature, design pressure, material grade, and relevant rating data.

Design Pressure Is Not the Same as a Test Pressure

Another major difference is between pressure applied in a test and pressure allowed in regular operation. Hydrostatic or other pressure tests may be undertaken under circumstances prescribed by the appropriate code or project specification, but the test pressure should not be regarded as the continuous operating pressure of the fitting.

Similarly, the maximum pressure reported by a manufacturer may be subject to certain restrictions. These criteria include temperature, medium of service, size of the fitting, technique of connecting, or installation requirements. Engineers should thus not rely on a single PSI value from a product listing but examine the whole technical specification.

Does a Thicker Wall Always Mean a Higher Pressure Rating?

Comparing Schedule 40 With Schedule 80

For the same nominal pipe size and material system, Schedule 80 generally has a thicker wall than Schedule 40. The additional wall thickness can provide greater resistance to internal pressure, which is one reason Schedule 80 is commonly selected for applications requiring higher pressure capability.

However, changing from Schedule 40 to Schedule 80 is not simply a matter of choosing the larger schedule number. The fitting must be compatible with the pipe, connection method, dimensions, and design requirements of the complete system. A thicker fitting wall can also affect internal flow area, weight, fabrication requirements, and cost.

For this reason, engineers normally select the schedule according to the actual design conditions rather than assuming that the highest available schedule is always the best choice.

Pipe Size Also Changes the Pressure Relationship

Pipe size has a direct effect on pressure behavior. As the internal diameter increases, the pressure acting on the pipe wall produces greater circumferential stress for a given wall thickness. Consequently, pressure capacity cannot be inferred simply by comparing the absolute wall thickness of two different pipe sizes.

The tee geometry introduces another consideration because the branch opening changes the stress distribution around the fitting. A pressure design should therefore consider the complete fitting configuration rather than evaluating only one section of its wall.

What Determines the Actual Pressure Rating of a Sch 40 Pipe Tee?

Material Grade and Fitting Standard

The material specification is one of the first items that should be confirmed. Carbon steel, stainless steel, alloy steel, and PVC have different design properties, and even materials within the same general category can have different allowable stresses and temperature limits.

The fitting manufacturing standard is equally important. Standards such as ASME B16.9 establish dimensional and manufacturing requirements for many factory-made wrought butt-welding fittings, while piping design codes such as ASME B31.3 address the design of process piping systems. When selecting a Sch 40 pipe tee, these standards help ensure that the fitting matches the intended piping requirements. These standards serve different purposes and should not be treated as interchangeable pressure-rating documents.

Size, Wall Thickness, and Connection Design

Nominal size and wall thickness influence the pressure behavior of a tee, while the connection method affects how the fitting integrates into the piping system. Butt-weld tees, socket-weld fittings, and threaded fittings can have different dimensional and application requirements.

The connection also needs to be considered together with the pipe. A tee cannot be selected based solely on the fitting's nominal pressure capability if the connected pipe, weld, flange, valve, or other component has a lower allowable limit.

Corrosion and Service Conditions

For long-term industrial service, the internal pressure calculation should not be separated from the actual operating environment. Corrosive media can gradually reduce effective wall thickness, while repeated temperature changes, cyclic loading, vibration, and other service conditions may influence the design requirements.

This does not mean that additional wall thickness should automatically be specified for every application. Instead, the design should account for the expected service conditions and any relevant allowances or requirements established by the applicable engineering standard.

How to Verify a Sch 40 Pipe Tee Before Purchasing？

A purchasing team should begin by confirming the nominal pipe size and the required Sch 40 configuration. The next step is to establish the material grade and applicable fitting standard, followed by the design pressure and maximum operating temperature.

The supplier's technical documentation should then be checked against those requirements. For an industrial carbon steel tee, this may include the material specification, dimensional standard, heat or batch traceability, inspection documentation, and relevant test records. If the project has specific requirements for chemical composition, mechanical properties, nondestructive examination, or third-party inspection, those requirements should also be agreed upon before production.

It is also useful to confirm whether the quoted pressure information refers to the fitting itself, the connected piping system, or a specific manufacturer test condition. This distinction can prevent a common purchasing mistake in which a catalog pressure value is treated as the allowable design pressure for the entire piping system.

For projects with demanding pressure and temperature conditions, the final selection should be reviewed against the applicable design code rather than relying only on a general online pressure chart.

When Should You Choose a Sch 40 Pipe Tee?

A Sch 40 pipe tee can be an appropriate choice when its wall thickness, material, connection type, and pressure-temperature capability match the requirements of the piping system. For relatively standard industrial services, Schedule 40 may provide a practical balance between material usage, installation requirements, and pressure capability.

It should not, however, be selected simply because “Schedule 40” appears in the pipe specification. If the system operates at high pressure, elevated temperature, or in a demanding chemical environment, the engineering team may need a different material, schedule, fitting specification, or design approach.

The most reliable selection process starts with the actual service conditions and works backward to the fitting specification. This avoids treating the schedule number as a standalone pressure rating and helps ensure that the tee is compatible with the rest of the piping system.

Conclusion

For safe and effective pipe systems, it is important to know the pressure rating of Sch 40 pipe tees. When choosing the right pressure grade for a job, it's important to think about things like the material's qualities, the temperature, and the thickness of the wall, whether you're using carbon steel, PVC, or stainless steel. Engineers and builders can choose the best Sch 40 pipe tees for their projects by carefully considering these factors and checking manufacturer specs. This will ensure durability and safety in a wide range of commercial and household settings. We supply carbon steel, stainless steel, and alloy steel Sch 40 pipe tees manufactured to international standards for industrial piping systems. For technical support, product specifications, or quotation requests, please contact our team at oudi-04@oudiguandao.com.

FAQ

1. What is the typical pressure rating of a 2-inch carbon steel Sch 40 pipe tee at room temperature?

A 2-inch carbon steel Sch 40 pipe tee typically has a pressure rating of up to 2,000 PSI at room temperature.

2. How does temperature affect the pressure rating of a Sch 40 pipe tee?

As temperature increases, the pressure rating of a Sch 40 pipe tee generally decreases. For example, a carbon steel tee rated for 2,000 PSI at room temperature might only be rated for 1,480 PSI at 400°F.

3. What is the pressure rating of a 2-inch PVC Sch 40 pipe tee at room temperature?

A 2-inch PVC Sch 40 pipe tee typically has a pressure rating of around 220 PSI at room temperature.

4. How does wall thickness affect the pressure rating of a Sch 40 pipe tee?

Generally, thicker walls result in higher pressure ratings. Sch 80 pipe tees, which have thicker walls than Sch 40, typically have higher pressure ratings for the same nominal pipe size.

References

1. ASME B16.9-2018: Factory-Made Wrought Buttwelding Fittings

2. ASTM A234: Standard Specification for Piping Fittings of Wrought Carbon Steel and Alloy Steel for Moderate and High Temperature Service

3. ASTM D2466: Standard Specification for Poly(Vinyl Chloride) (PVC) Plastic Pipe Fittings, Schedule 40

4. Piping Handbook, Seventh Edition by Mohinder L. Nayyar

5. Pipe Fitting and Piping Handbook by R. Dodge Woodson

6. Valve and Actuator Technology by Wayne Ulanski
