Material Compatibility Guide for Butt Weld Elbows

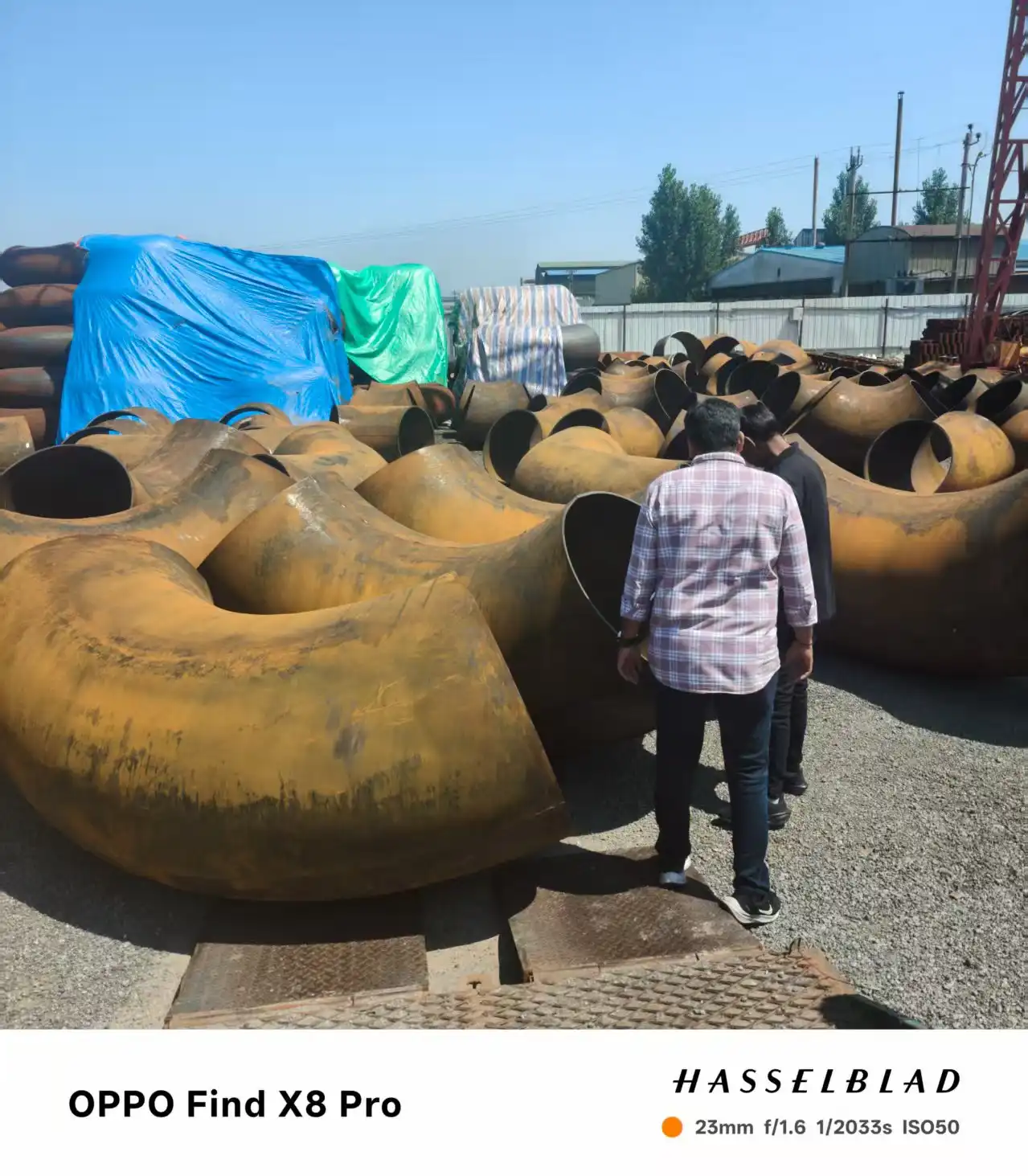

Butt weld elbows are small components in terms of physical size, but they can have a significant effect on the reliability of an industrial piping system. An elbow is a component of the pressure boundary where there is a change of direction of pipe flow and must be consistent with the pipe, fluid, temperature, pressure, and welding technique in service. So if you merely choose an elbow because the size matches the pipe, you might run into issues later if the material is not suited for the real working environment.

Carbon steel continues to be used extensively since it provides a workable compromise of strength, availability, weldability, and affordability. Stainless steels are more desirable if corrosion resistance is of prime importance. Alloy steels are often selected for high-temperature and high-pressure use. But the appropriate decision relies on more than the material’s name. All these factors must be evaluated simultaneously, including the chemical exposure, temperature variations, wall thickness, pressure, manufacturing requirements, and compatibility with the surrounding pipe.

Material selection for engineers, contractors, and procurement teams is best seen as a choice of compatibility rather than a basic product specification. This article discusses the primary material possibilities for butt weld elbows, how service circumstances affect the selection, welding considerations, and documentation to review before releasing an order.

Understanding the Main Material Options for Butt Weld Elbows

Carbon Steel for Cost-Conscious Industrial Piping

Carbon steel continues to be one of the most popular choices for butt weld elbows for ordinary industrial pipelines. It is popular because it is mechanically strong, relatively inexpensive, can be easily machined, and can be readily welded. ASTM A234 WPB is a standard material for wrought carbon steel and alloy steel pipe fittings, where the design and service criteria are complied with.

Carbon steel may be a suitable option in normal water, utility, process, steam, and many oil and gas systems if corrosion is controlled and the operating temperature is within the limitations of the chosen material and design code. Its relative ease of manufacture also makes it desirable for projects in which a large number of fittings must be mounted and welded quickly.

The biggest disadvantage is its vulnerability to corrosion in corrosive exterior or interior environments. An elbow of carbon steel used in a wet application, or one that is high in chlorides, is acidic or otherwise corrosive and may need an appropriate method for controlling corrosion. Depending on the system coatings, corrosion allowances, inhibitors, insulating design, or a different material may be chosen.

Hence, cost should not be the primary argument for selecting carbon steel. A reduced purchase price might be negated if the chosen material needs too much care or has a service life that does not fulfill the project requirement.

Stainless Steel When Corrosion Resistance Matters

Stainless steel is commonly used when the pipe system has to perform better than standard carbon steel in the presence of moisture, chemicals, cleaning agents, or other corrosive conditions. Grades 304 and 316 are among the most common choices, although the right grade depends on the environment rather than on the general notion that all stainless steels are equally good.

Stainless steel contains chromium, which permits the formation of a passive oxide layer on the surface that gives a significant degree of corrosion resistance. Grade 316 additionally includes molybdenum, which gives superior resistance compared to 304 in many chloride-containing situations. This differential is especially significant in cases when the application is exposed to salt or chloride contamination.

Butt-weld elbows, however, only consider the base material in part of the compatibility evaluation. Welding may influence the local microstructure and corrosion behavior, especially if the technique, shielding, heat input, or filler metal is not suitable. Therefore, a stainless steel elbow should be examined together with the attached pipe and the welding technique rather than as a separate component.

Applications such as food processing, pharmaceutical manufacturing, chemical processing, and sanitary process pipes may need stainless steel Butt weld elbows because surface condition and corrosion resistance might be crucial in addition to mechanical performance.

Alloy Steel for Elevated-Temperature Service

When pipe is hot for long durations, alloy steel has benefits over conventional carbon steel. Chrome-moly grades such as P11 and P22 are extensively used for power generation, refining, petrochemical, and other high-temperature applications.

The inclusion of chromium and molybdenum may increase the high-temperature strength and resistance to deterioration processes such as creep. This makes alloy steel acceptable for systems that may have continuous thermal demands from the elbow rather than transient temperature rises.

The decision still has to be based on the actual design circumstances. A material that works well at one temperature and pressure may not be suitable at another. The ultimate material choice may be affected by long service times, heat cycling, wall thickness, welding requirements, and the governing design rules.

This is why alloy steel should not be seen as just a more costly version of carbon steel. It is often used when the service environment necessitates a different level of mechanical and thermal performance.

Matching Elbow Materials to Actual Piping Conditions

Start With the Process Medium and Corrosion Risk

One of the first things to evaluate when picking butt-weld elbows is the fluid inside a pipe system. Water, hydrocarbons, acids, chlorides, cleaning chemicals, and process gases may all be responsible for highly variable corrosion conditions, even when the system is operating at equal pressures.

A notable illustration of the importance of chemical composition is hydrogen sulphide. In oil and gas service, H₂S may contribute to material deterioration processes such as sulphide stress cracking in vulnerable materials. Thus, material selection should be based on the particular service environment and any necessary low-service criteria, not a generic carbon steel or stainless steel classification.

Chlorides must also be given due consideration. Stainless steel may be a beneficial material for giving some corrosion protection; however, increased exposure to chlorides and temperature might affect the risk profile. In a grade that is doing adequately, one application may not pay the same margin as another.

The most advantageous method is to find out the composition of the process medium, its concentration, temperature, estimated time of exposure, and the presence of contaminations before approval of the elbow material. In an unpredictable service environment it is better to have precise process data than to make a decision based on assumptions.

Temperature and Pressure Should Be Evaluated Together

Pressure ratings are significant; however, pressure should not be assessed out of the context of temperature. As the temperature rises, the mechanical characteristics of many metals alter, and the allowed stress utilised in design may be lowered. Thermal expansion and repetitive temperature cycling may also cause extra strains in the piping system.

This is especially true for butt weld elbows, as elbows occur at changes in direction of pipes where the geometry of the system might affect the load distribution. Thus, an elbow working under pressure at normal temperature may represent a different design issue than one exposed to high-temperature steam or process fluids.

Carbon steel may be suitable for many typical industrial applications, while alloy steel may be used if extended high-temperature usage requires better strength and creep resistance. In areas where corrosion resistance is more crucial, stainless steel may be used, but its appropriateness still has to be verified for the particular temperature and pressure circumstances.

Instead of asking if a certain elbow material is “strong enough", engineers should examine whether the material is still appropriate for the whole spectrum of operating conditions, including regular operation, start-up, shutdown, pressure variations, and temperature excursions.

Consider Chemical Compatibility Beyond the Main Fluid

The compatibility evaluation should not be limited to the principal process media. Cleaning solutions, additives, condensate, pollutants, and chemical reactions may alter the service environment around an elbow.

For example, an elbow may have a very mild fluid during regular manufacturing but a much stronger cleaning chemical during maintenance. This transient exposure may be neglected if the material selection simply takes into account the typical manufacturing circumstances.

The exterior circumstances are the same. Localised corrosion problems may arise even when relatively innocuous internal process fluids, moisture trapped behind insulation, maritime atmospheres, moisture condensation, or incompatibility with other materials are present.

The sound material evaluation should thus evaluate both the internal and the exterior exposure. Supplier suggestions and experience from past projects may be helpful references but should be used to supplement rather than replace an evaluation of real service conditions.

Building a Reliable Welding Compatibility Strategy

Match the Welding Procedure to the Materials Being Joined

The quality of a welded connection depends heavily on whether the welding procedure is appropriate for the elbow and the pipe. SMAW, GMAW, and GTAW are all established welding processes, but their suitability depends on material grade, thickness, joint design, access, production requirements, and required weld quality.

GTAW is often used where close control of the weld is important, including many stainless steel applications. SMAW remains widely used for field fabrication because of its flexibility, while GMAW can provide productivity advantages in suitable shop environments.

The important point is that the welding process should be selected as part of a qualified procedure rather than chosen simply because it is familiar to the fabricator. Joint preparation, heat input, shielding, welding position, material thickness, and preheating requirements can all influence the final connection.

For critical piping, qualified welding procedures and appropriately qualified welders provide an additional level of confidence that the elbow and pipe will perform as an integrated assembly rather than as two individually acceptable components.

Select Filler Metal for the Complete Joint

Filler metal selection is particularly important when the elbow and adjoining pipe have different material grades. The objective is not simply to make the two components stick together; the finished weld must have mechanical and, where relevant, corrosion characteristics appropriate for the service.

Carbon steel joints may require low-hydrogen consumables to reduce the risk of hydrogen-assisted cracking under applicable conditions. Stainless steel joints require filler metals that are compatible with the selected stainless grades and the intended corrosion environment.

Dissimilar-metal joints require even more careful consideration. Joining a stainless steel elbow to carbon steel pipe introduces differences in chemical composition, thermal expansion, and metallurgical behaviour. The filler metal and welding procedure, therefore, need to be selected according to the specific combination of materials and applicable engineering requirements.

This is one area where procurement teams should avoid treating a filler metal specification as a minor fabrication detail. If the purchase specification identifies the elbow material but does not address welding requirements for butt weld elbows in a mixed-material piping system, important compatibility information may be left to interpretation later.

Determine Whether Post-Weld Heat Treatment Is Required

Post-weld heat treatment, or PWHT, is not automatically required for every elbow, but it can be an important part of fabrication for certain material grades, wall thicknesses, and service conditions. The purpose may include reducing residual stresses and achieving the required metallurgical or mechanical properties after welding.

PWHT requirements can be especially relevant for some alloy steel piping used in high-temperature power and petrochemical service. The applicable requirements depend on factors such as material grade, thickness, welding procedure, design code, and service conditions.

It is therefore better to determine PWHT requirements during engineering and procurement rather than after fabrication has already begun. The project specification and applicable code should establish whether heat treatment is necessary and how it must be performed and documented.

What Procurement Teams Should Verify Before Ordering？

Check Material Traceability and Test Documentation

Material documentation is one of the most practical ways for buyers to verify that the supplied butt weld elbows match the project requirements. A material test certificate can provide information about the material designation, chemical composition, mechanical properties, heat or batch identification, and applicable standard.

These records are particularly important when several similar-looking materials are being purchased for the same project. Visual appearance alone cannot reliably distinguish all carbon steel, stainless steel, or alloy steel grades.

The purchase specification should clearly identify the required material standard, grade, dimensions, wall thickness, applicable manufacturing requirements, and documentation package. Where the project has additional testing or inspection requirements, these should also be defined before the order is placed.

Confirm Dimensional and Manufacturing Requirements

Material compatibility does not guarantee dimensional compatibility. An elbow still needs to match the connected piping in terms of nominal size, wall thickness, end preparation, bend angle, and applicable dimensional standard.

This becomes particularly important during replacement work, where an existing piping system may use a specific fitting standard that differs from a newly proposed product. A dimensionally incorrect elbow can create installation difficulties even when its material grade is technically acceptable.

Buyers should therefore compare supplier drawings or product specifications with the project's piping requirements before shipment. Dimensional inspection records can provide useful confirmation for projects where installation tolerances are tight or where the fittings will be assembled in a prefabricated piping system.

Evaluate the Supplier's Technical Support

A capable supplier should be able to discuss more than price and delivery time. For projects involving demanding service conditions, the supplier's ability to provide material documentation, dimensional records, technical clarification, and manufacturing information can have a direct impact on procurement risk.

This is especially valuable when the project involves unusual materials, high-temperature service, corrosive media, or connections between dissimilar metals. A supplier that understands the relationship between elbow material, pipe material, welding requirements, and documentation can help identify potential mismatches before production begins.

For buyers, this makes supplier evaluation part of material compatibility management. A technically suitable product becomes much more useful when its material identity and manufacturing records can be traced and verified throughout the procurement process.

Conclusion

Choosing the proper material for butt weld elbows is key to safe, efficient, and long-lasting pipe systems. Carbon steels are a cost-effective choice for general use, stainless steels provide better corrosion resistance, and alloy steels are dependable in high-temperature and high-pressure environments.

In addition to the choice of material, the success of the installation relies on the welding processes, compatibility of filler metal, heat treatment requirements, and supplier quality control.

By considering pipeline media, operating circumstances, and project criteria before selection, engineers and buying teams may pick the right butt weld elbows and enjoy dependable performance over the entire service life of industrial piping systems.
