Understanding the Difference Between Equal Tee and Reducing Tee

In an industrial piping system, a tee is used when one pipeline needs to connect with another branch. The basic function sounds simple, but the choice of tee can affect pipe sizing, installation, flow behavior, and the way the system is maintained. Two common options are equal tees and reducing tees. At first sight they may appear the same, yet they are designed for various pipe layouts. Equal tees have three apertures of the same nominal pipe size. A reducing tee has one opening of a different size from the other two, enabling a branch connection to be formed straight from a bigger or smaller main line. This variation regarding geometry is the fundamental reason why the two fittings are chosen for distinct purposes. It’s not only a question of which tee is stronger or which tee has less pressure loss. The correct selection is determined by pipe size, fluid flow, operating pressure and temperature, available space, connection needs, and the overall piping system design. Understanding these characteristics offers engineers, contractors, and buying teams a better realistic foundation for picking the fit.

How Equal and Reducing Tees Differ？

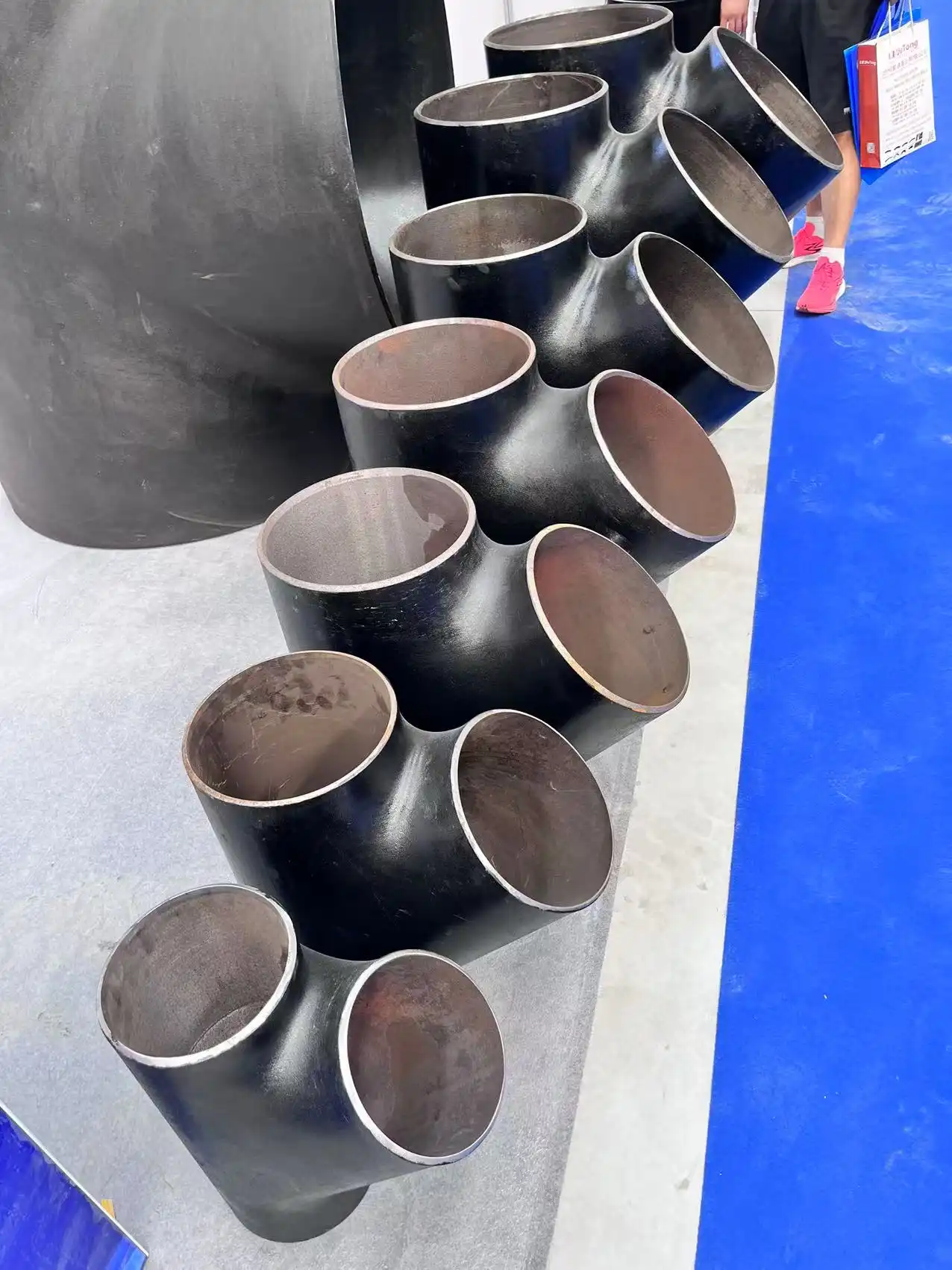

Equal Tee Geometry

An equal tee is defined by having three apertures of equal nominal size. The fitting features a straight run with a branch connector. The branch has the same nominal diameter as the run.

For example, a 4-inch equal tee joins three 4-inch pipes. This configuration is advantageous when the linked lines are constructed around the same nominal pipe size and there is no need to lower the branch width at the connection point.

An equal tee has a symmetrical look, which may make pipe design easier as all three connections are based on the same nominal diameter. It may also make repair or installation easy when the surrounding piping is of the same size.

But equal dimensions do not mean equal flow. The fitting has three holes of equal size, but the total quantity of fluid flowing via each pathway depends on the whole piping system. A tee is symmetric, but it does not mean that a branch with some other downstream resistance would carry the same flow as some other branch.

Reducing Tee Geometry

A reduction tee contains two openings of one nominal pipe size and a branch opening of another size, although different arrangements may be made for specialized piping designs. One popular example is a decreasing tee, 6 inches by 6 inches by 4 inches, where the main run is 6 inches but the branch is reduced to 4 inches.

This arrangement enables the size change in the pipe to occur at the tee rather than with a separate reducer in the vicinity of the branch. This may make the piping design more compact and minimize the number of individual fittings necessary for projects with several pipe diameters.

The smaller branch also influences the fluid velocity and the local pressure loss. If a fluid is forced through a smaller cross-sectional area, its velocity will rise. Its real performance is dependent on flow rate and the remainder of the system. The fitting should be assessed as part of the whole hydraulic design, not only by diameter.

What Equal Tees Mean for Piping Layouts？

When the Same Pipe Size Is Required？

Equal tees are best suited when the branch and the run are sized for the same nominal pipe size. It is a typical feature in pipe systems when a main line must branch into lines of the same size or where two lines must be linked into a single line without affecting the nominal diameter at the junction.

The simple shape also makes the arrangement easy to grasp after installation. If the designs include several branches of the same pipe size, providing equal tees may help simplify the fitting schedule to a degree.

This does not mean to say that we should always choose an equal tee when the three connecting lines are of the same size. The engineer still has to take into account pressure class, thickness, material compatibility, temperature, connection type, and the pipe standard in question.

Flow Distribution Depends on the Complete System

One of the most essential facts when comparing equal and decreasing tees is that the fitting geometry alone does not affect the flow distribution.

Consider an equal tee linked to two branches of similar nominal diameter. If one branch is longer, has more valves, or has higher resistance inside, the flow through that branch might be quite different from the flow through the other branch. Pump parameters and operational circumstances can affect the actual distribution.

This is why it is more correct to refer to equal tees as fittings that offer equal-sized connection channels rather than fittings that automatically provide equal flow.

This difference is especially relevant to industrial systems where flow balance impacts process performance. If balanced flow is desired, engineers should consider the whole hydraulic network.

Where Equal Tees Are Commonly Used？

Process and Utility Piping

Equal tees are good for usage in chemical plants, refineries, industrial facilities, and general process plants that need a branch connection without having to change the nominal pipe size. The exact substance depends on the fluid and the working conditions. Carbon steel could be OK for various utility and process services, but stainless steel, duplex stainless steel, or nickel alloys might be preferred for services needing other corrosion or temperature properties.

The tee must always be defined based on the surrounding pipe system. A material acceptable in isolation may not be suitable, as it does not match the pipe, welding requirements, pressure rating, and service circumstances.

Water and Cooling Systems

Equal tees are also utilized in water, cooling, and utility pipes when branches are kept the same nominal diameter. For example, an industrial cooling system may include a large number of branch connections to supply equipment or auxiliary lines.

Equal tees are connecting the same-size pipes. They do nothing to equalize the flow of water between the branches. Flow balancing may include pipe size, valves, control devices, and hydraulic calculations.

This difference gets more and more relevant as a system expands. With a modest piping configuration you may expect certain things. With a huge network of pipes with numerous branches, you can expect substantial variances in pressure and flow in different parts of the network.

Fire Protection and Other Distribution Networks

Distribution networks may also have equal tees if numerous pipe sections are of the same nominal size. Tee fittings may be part of a broader branch arrangement in fire protection, utility water, and other engineering systems.

The tee is just a small part of the hydraulic design of such systems. The final layout must be authorized after considering the required flow, the available pressure, the pipe length, the fittings, the valves, and the downstream equipment.

When a Reducing Tee Is the Better Choice？

Connecting Different Pipe Sizes

The clearest advantage of a reducing tee is its ability to connect different pipe sizes directly. If a large main line needs a smaller branch, a reducing tee can provide the transition within the fitting.

For example, a process header may use a larger diameter pipe to carry the primary flow while a smaller branch supplies an instrument line, equipment connection, or secondary process stream. Installing a reducing tee allows the branch to leave the header at the required smaller size.

An equal tee would not provide that size transition on its own. A separate reducer would normally be needed, adding another component to the piping arrangement.

Compact Piping Arrangements

Space can also influence the decision. In a congested plant, using a reducing tee may be more convenient than installing an equal tee followed by a separate reducer. Fewer individual components can sometimes simplify the physical arrangement and reduce the amount of space needed around the branch.

However, a compact layout should not be considered sufficient reason to select a reducing tee. Access for welding, inspection, maintenance, and replacement still needs to be considered. The most compact arrangement is not always the easiest arrangement to install or maintain.

Controlling Branch Size

Reducing tees can also be useful when the branch intentionally requires a smaller pipe size because its design flow is lower than that of the main line. Pipe diameter is normally selected according to the required flow, allowable velocity, pressure loss, process requirements, and other design considerations.

The reducing tee therefore supports a transition that has already been determined by the piping design, unlike equal tees, which are used when the branch and run connections have the same nominal diameter. It should not be viewed as a fitting that independently controls the flow rate.

Equal Tee vs. Reducing Tee: Pressure Loss and Flow Behavior

Why Tee Geometry Matters?

Whenever fluid passes through a tee, the change in direction and flow area creates local resistance. The magnitude of that resistance depends on the geometry of the fitting as well as the direction and rate of flow.

In an equal tee, the three openings have the same nominal size, so there is no built-in branch diameter reduction. In a reducing tee, the smaller opening changes the local flow area and can affect velocity and pressure loss.

Still, it would be misleading to assume that every equal tee produces less pressure loss than every reducing tee. Pressure-loss behavior depends on the specific flow path, flow rate, fluid properties, fitting geometry, and piping configuration.

For engineering calculations, the appropriate loss coefficient or other applicable design method should be used rather than relying on a general assumption based only on fitting type.

Flow Direction Changes the Result

The pressure behavior of a tee can vary depending on whether fluid is moving from the main run into the branch, from the branch into the run, or between different branches. These flow conditions can produce different local losses.

This is one reason why a piping engineer should consider the actual operating condition when assessing a tee. A fitting that appears identical on a general arrangement drawing can have a different hydraulic effect depending on how the system operates.

The same principle applies to reducing tees. A smaller branch may experience a different velocity and local loss than the larger run, but the significance of that difference depends on how much fluid is passing through the branch.

Pressure Drop Should Be Evaluated at System Level

Pressure loss through a tee is only one part of the total pressure drop in a piping system. Straight pipe friction, elbows, valves, reducers, filters, heat exchangers, equipment nozzles, and other fittings may contribute substantially to the overall resistance.

Therefore, selecting an equal tee simply because it is assumed to have a lower pressure loss may not produce the expected system result. Engineers should evaluate the entire flow path and verify whether the available pressure is sufficient for the required operating conditions.

This approach is especially important for long pipelines, high-flow utility systems, pump-driven circuits, and process systems where pressure margins are limited.

Material and Manufacturing Considerations

Matching the Tee to the Piping Service

The material of the tee should be compatible with the pipe and the service conditions. Carbon steel fittings are common in many industrial applications, while stainless steel and alloy materials may be selected for services involving different corrosion, temperature, or mechanical requirements.

The material selection should consider the fluid, design temperature, design pressure, corrosion conditions, welding procedure, and applicable material specification. It is not enough to select a tee based only on nominal diameter.

Dimensions, Wall Thickness, and Standards

Nominal size is another important consideration, but it should be reviewed together with the fitting's dimensions and wall thickness. The required specifications may depend on the piping code and fitting standard used for the project.

Purchasing teams should confirm whether equal tees are required, along with the fitting designation, material grade, nominal size, schedule or wall thickness, end connection, and required inspection or documentation before placing an order.

For welded piping, the compatibility between the tee and the adjoining pipe is particularly important. Proper preparation and welding practices are necessary to achieve a sound connection and maintain the integrity of the piping system.

How to Choose Between Equal Tees and Reducing Tees？

The selection process should begin with the pipe sizes shown on the approved piping design. If the branch and main connections are intended to use the same nominal diameter, an equal tee may be appropriate. If the branch requires a different nominal diameter, a reducing tee may provide a more direct solution.

The next step is to check the operating conditions. Pressure, temperature, fluid properties, design flow, and expected operating range can all influence the fitting specification. The tee also needs to match the applicable piping code and material requirements.

Installation conditions deserve attention as well. Available space, access for welding or inspection, maintenance requirements, and the location of nearby valves or equipment can affect which configuration works best.

For larger projects, the fitting selection should also be consistent across the piping specification and material take-off. A clearly defined fitting schedule helps reduce ordering errors and makes it easier for contractors and inspectors to verify that the installed components match the design.

Most importantly, the choice should be based on the function of the branch rather than on the assumption that one type of tee is universally better. Equal tees are designed for the same-size connections, while reducing tees provide a direct connection between different pipe sizes. Once this basic distinction is established, hydraulic and mechanical requirements can guide the final selection.

Conclusion

In conclusion, understanding the differences between equal tees and reducing tees is essential for selecting the right branch connection in an industrial piping system. Equal tees have three openings of the same nominal size and are well suited to piping layouts where the connected lines use the same diameter. Reducing tees incorporate a different-sized opening, making them useful when a smaller or larger branch needs to connect directly to the main line.

The difference between the two fittings extends beyond appearance. Pipe size, flow rate, pressure loss, material, temperature, installation space, and the overall piping configuration all influence the final selection. An equal tee does not automatically create equal flow between branches, and a reducing tee does not necessarily create an unacceptable pressure loss. These effects need to be evaluated according to the actual system conditions.

For engineers, contractors, and purchasing teams, the most reliable approach is to select the tee according to the required pipe dimensions and service conditions, then verify the applicable material and dimensional specifications. With the fitting matched correctly to the piping design, both equal and reducing tees can provide practical and reliable branch connections for industrial applications. For product specifications, technical consultation, or custom piping solutions, please contact us at oudi-04@oudiguandao.com.
