The Best Anti-Corrosion Coatings for CS Flanges

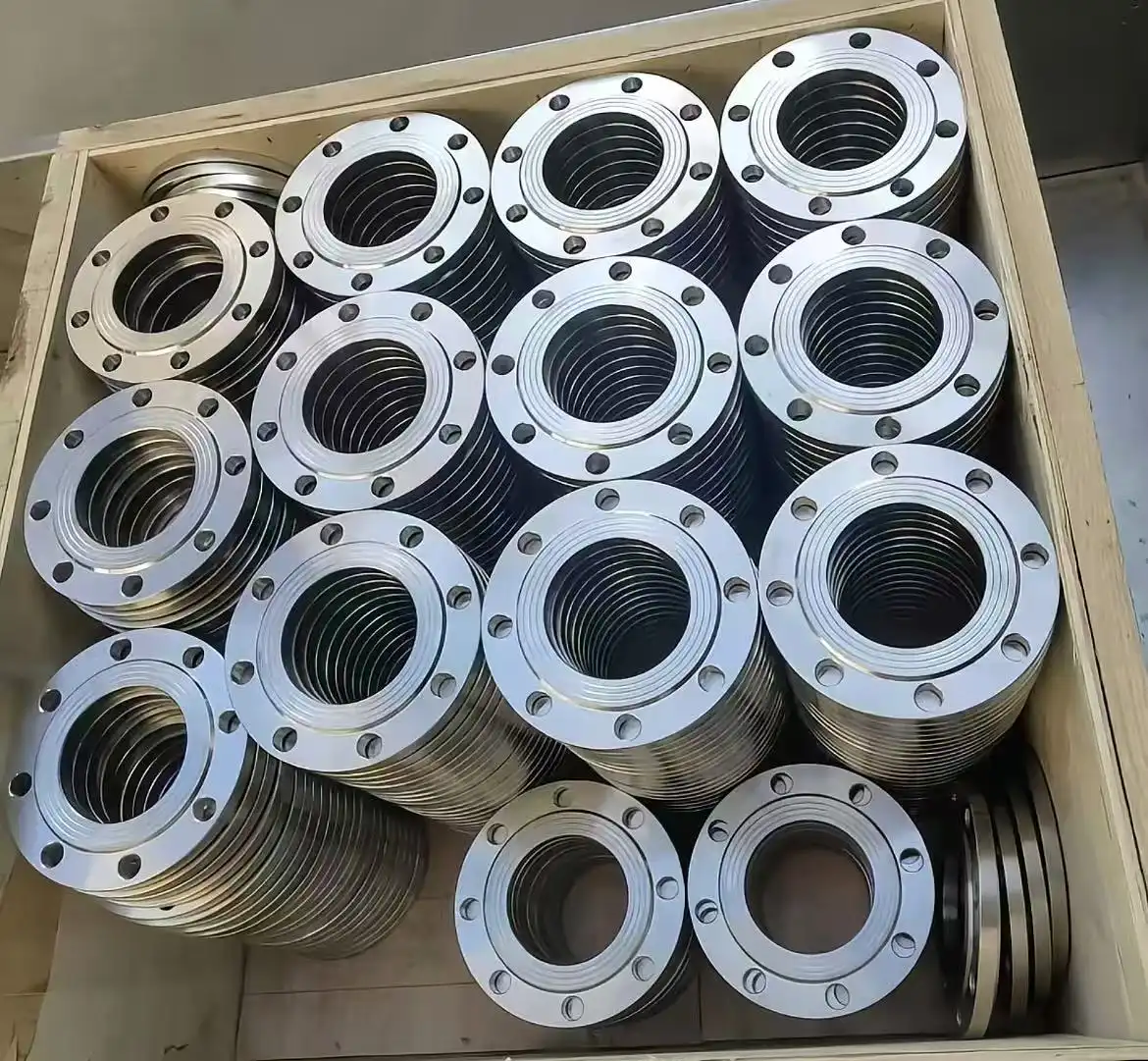

Carbon steel flanges are widely used in piping systems because they offer a practical combination of mechanical strength, availability, and cost. Their main limitation is that exposed carbon steel can corrode when moisture, oxygen, salts, chemicals, or other aggressive conditions reach the metal surface. Once corrosion begins, surface deterioration can affect maintenance requirements and, in some situations, the condition of the flange and its connection surfaces. Choosing a coating therefore involves more than selecting the thickest or most expensive finish. The right solution depends on the service environment, expected exposure, temperature, required durability, dimensional tolerances, installation method, and whether particular flange surfaces must remain free of coating. For engineers and purchasing teams sourcing CS flanges, these details should be established before the coating process is specified. Common alternatives include hot-dip galvanising, epoxy-based systems, polyurethane topcoats, powder painting, and black oxide treatment. Each technique protects carbon steel differently, and each has disadvantages that must be weighed against benefits. The following comparison looks at how various coating methods function, where they are most beneficial, and what to examine before ordering coated flanges.

Hot-Dip Galvanizing for Long-Term Atmospheric Exposure?

How Zinc Protects Carbon Steel?

Hot-dip galvanising protects steel by immersion of the prepared component into molten zinc. The technique results in metallurgically bound layers of zinc and zinc-iron alloy on the steel surface, which provide barrier protection and sacrificial protection. If the exposed steel is encapsulated in the zinc covering, the zinc may corrode preferentially and protect the steel underneath.

The ASTM A123/A123M-24 specification covers iron and steel goods, including forged and other manufactured steel products, with hot-dip zinc coatings. This makes the standard a valuable reference when a project specification asks for hot-dip galvanising on steel components.

It is not the same as just painting with a zinc-containing paint. The coating is applied by dipping into molten zinc; therefore may provide a good metallic covering to most of the exterior surface. However, the final coating state varies with the steel chemistry, product shape, drainage, handling, and the galvanising process itself.

Where Galvanized CS Flanges Make Sense?

Hot-dip galvanising is especially important where flanges are exposed to outside weather conditions and when design asks for a lasting form of protection with very minimum regular coating maintenance. Examples where galvanised steel may be considered include outside pipes, utility installations, structural connections and equipment exposed to humid conditions.

The projected service life should not be given as a universal number. Zinc consumption is influenced by the surrounding environment, and coating thickness is just one aspect of the entire corrosion prevention approach. Therefore, the galvanising standard and coating criteria should be included in the procurement papers rather than merely specifying “thick galvanizing.”

Galvanising may be advantageous in cases when a metallic protective coating is required instead of a traditional paint finish. But before manufacturing starts, designers should evaluate the impact of galvanising on threaded regions, tight precision features, drainage pathways, and machined surfaces.

Important Considerations Before Galvanizing

When hot-dip galvanising a flange, the geometry is important since a flange is not just a flat steel ring. Air entrapment, zinc drainage, access to interior sections, and handling might alter the completed coating. ASTM also has practices that cover the quality of the hot-dip zinc coatings and such concerns as distortion in galvanising, emphasising that galvanising should be treated as a manufactured engineering process, not just a generic finishing step.

Special attention should be given to the flange sealing face. Depending on the connection design, gasket type, pressure class, and project requirements, the sealing surface may need to be masked, machined after coating, or managed in other ways. The same goes for bolt holes and other places where extra coating might get in the way of assembly.

Therefore, the buying specification for coated CS flanges should include the galvanising standard, surfaces that may be coated, coating condition, inspection requirements, and dimensional constraints.

Epoxy and Polyurethane Systems for Engineered Paint Protection

Why Epoxy Is Commonly Used on Carbon Steel?

Epoxy coatings are commonly employed in industrial corrosion-control systems because of their ability to offer good adhesion and a good barrier between carbon steel and the environment. In many industrial systems, instead of applying one thick coating, a primer, an intermediate coat, and a final coat are chosen for the desired environment.

Where the specification requires a coating system that provides both barrier protection and galvanic or cathodic protection, a zinc-rich primer may also be used. However, it should not be confused with hot-dip galvanising. The two systems are distinct in application process, coating structure, inspection requirements and maintenance procedures.

The selection of a paint system for industrial applications should be based on the environmental exposure and not just on the name of the paint. ISO 12944 offers a framework for the selection of protective paint systems according to corrosivity categories, surface preparation, and predicted longevity. ISO 12944-5:2019 describes how to pick kinds of protective paint systems for diverse conditions.

Adding Polyurethane for Outdoor Service

Epoxy is a common option for the base protective layers; however, certain epoxy finishes might be affected by long-term UV exposure. A polyurethane topcoat may be utilised when enhanced weathering, colour retention and appearance are desired.

This leads to a coating system in which various layers have diverse functionalities. The epoxy layers provide the principal barrier and adhesive qualities. The polyurethane finish may give greater resistance to outside weathering. It’s a more relevant way of putting it than just calling polyurethane a “stronger” coating, since the performance is the result of the whole coating system and the appropriateness of each layer for its function.

For outdoor CS flanges, the coating specification should include the whole system and not just the topcoat. The end outcome may be affected by primer type, intermediate coat, finish coat, dry film thickness, surface preparation, curing circumstances, and inspection criteria.

Surface Preparation and Inspection Matter

Even the best performance coating will not work if the steel surface, including that of CS flanges, is not properly prepared. Oil, grease, mill scale, rust, dampness, dust and other impurities might interfere with the application of the coating. Thus, prior to application of the coating system, abrasive blasting or another specific preparatory process may be necessary.

ISO 12944-4 provides surface types and preparation procedures for carbon and low-alloy steel. ISO 12944-7 covers execution and supervision of protective paint work.

That implies a flange producer or purchaser should not determine the quality of coating only on appearance. The quality control method must take into account surface preparation, ambient conditions at application, dry film thickness, curing, adhesion if needed, and visual inspection.

The same may be said for repairs. If a coated flange is damaged during transit or installation, the repair technique must be compatible with the original coating system. Applying an unrelated paint to a damaged region might simply lead to an uneven system and overall reduced performance over the long run.

Powder Coating When Finish and Durability Both Matter

How Powder Coating Differs from Liquid Paint?

Powder coating uses dry powder that is electrostatically applied to a prepared metal surface and then heated so that the particles melt and cure into a continuous film. The result can provide a clean and uniform finish, with a wide range of colors and surface textures.

For CS flanges, powder coating may be suitable when the component can be processed at the required curing temperature and when the application does not conflict with dimensional or metallurgical requirements. The coating can provide good resistance to abrasion, moisture, and many common environmental exposures when the substrate preparation and coating system are properly controlled.

However, powder coating should not automatically be described as suitable for every industrial environment. Chemical exposure, operating temperature, impact, UV exposure, coating thickness, and substrate preparation all affect performance. A coating that works well for an outdoor equipment enclosure may not be appropriate for a flange exposed to a particular process chemical or elevated temperature.

Controlling Dimensions and Sealing Surfaces

Dimensional control becomes especially important when applying any substantial coating to precision-machined flange surfaces. Bolt holes, raised faces, RTJ grooves, bores, and other machined features may have specific functional requirements. The coating specification should therefore identify areas that must remain uncoated or receive controlled treatment.

This consideration is particularly important for powder coating because the finished layer is intentionally built to a measurable thickness. If coating is allowed to accumulate on a sealing or close-tolerance surface, the resulting dimensions may differ from the original machined condition.

Before ordering powder-coated CS flanges, purchasers should provide drawings or coating instructions that clearly identify masking requirements. Doing so is more reliable than expecting the coating supplier to determine which surfaces should remain untreated.

Black Oxide for Thin Surface Conversion

Where Black Oxide Fits?

Black oxide is fundamentally different from galvanizing, epoxy paint, and powder coating. Instead of creating a relatively thick external film, the process chemically converts the steel surface to form a dark oxide layer, commonly associated with magnetite.

Its main attraction is the very small dimensional change compared with thicker coating systems. That characteristic can be useful for components where maintaining close dimensional relationships is important. The black finish can also provide a consistent appearance and may be desirable for mechanical components where a dark surface is preferred.

The important limitation is that black oxide should not be presented as equivalent to a heavy-duty standalone corrosion barrier. Its corrosion performance depends strongly on the process and any supplementary treatment, such as oil or another protective finish. For demanding outdoor, marine, or aggressive chemical environments, a more substantial corrosion-control system may be required.

Choosing Black Oxide for Flange Applications

Black oxide is more appropriate when the component needs a thin converted surface, and the service environment is relatively controlled. It may also be considered where appearance and dimensional stability matter more than maximum atmospheric corrosion resistance.

For industrial CS flanges, the specification should identify whether the black oxide finish is intended primarily for appearance, mild corrosion control, dimensional preservation, or another defined purpose. The purchaser should also confirm whether an additional post-treatment is required.

This makes black oxide a specialized option rather than a universal replacement for galvanized or painted surfaces. Its value comes from matching the coating characteristics to the actual requirements of the component.

Combining Coating Technologies for Specific Service Conditions

Duplex Systems for Additional Protection

In some environments, combining two compatible protection methods can provide a more comprehensive system than relying on a single coating. One example is a duplex system that combines hot-dip galvanizing with a compatible organic topcoat. The zinc layer provides sacrificial protection, while the paint or powder layer adds a barrier and can provide a different appearance.

However, a combined system should be treated as an engineered coating specification. The second coating must be compatible with the galvanized surface, and surface preparation is important. ASTM D6386 provides practices for preparing hot-dip galvanized steel surfaces for painting, illustrating why simply painting directly over newly galvanized steel is not sufficient.

Combining black oxide and powder coating, as suggested in the original article, should be approached more cautiously. These processes are not automatically interchangeable, and their compatibility depends on the specific manufacturing sequence and coating products. A manufacturer should validate the complete system before using such a combination on production parts.

Match the Coating to the Actual Environment

The most important factor in selecting an anti-corrosion coating is the environment in which the flange will operate. Indoor dry service, outdoor industrial exposure, coastal atmosphere, chemical processing, wastewater facilities, and marine exposure can impose very different corrosion demands.

ISO 12944 treats environmental corrosivity as an important factor in selecting protective paint systems, while ISO 12944-9 provides specific requirements and laboratory performance methods for protective paint systems used on offshore and related structures.

Temperature should also be considered. A coating system that performs well at ambient conditions may have different limitations at elevated temperatures. Chemical compatibility is equally important because resistance to one chemical does not establish resistance to every process medium.

Mechanical handling is another practical consideration. Flanges are frequently transported, stacked, bolted, unbolted, and handled with tools during installation. A coating that performs well in static exposure can still be damaged by impact or abrasion. The specification should therefore address both corrosion exposure and the conditions the coated component will experience during its service life.

Conclusion

There is no single anti-corrosion coating that is automatically the best choice for every carbon steel flange. Hot-dip galvanizing can provide durable zinc-based protection for many atmospheric applications, while epoxy and polyurethane systems allow engineers to build coating systems around specific environmental and durability requirements. Powder coating can be useful where a durable finish and appearance are important, while black oxide is better suited to applications that benefit from a thin converted surface and controlled dimensional change.

For CS flanges, the coating should ultimately be selected according to the service environment, temperature, chemical exposure, mechanical conditions, dimensional requirements, and maintenance strategy. Standards such as ASTM A123/A123M and ISO 12944 can provide a more reliable basis for specifying and evaluating corrosion-protection systems than generic claims about coating performance.

A well-written purchasing specification should therefore describe both the flange and its protective treatment, including material, dimensions, applicable standards, coating system, surface preparation, masking requirements, inspection, and documentation. This approach helps ensure that the selected coating is not simply attractive on paper but is compatible with how the CS flanges will actually be manufactured, installed, and used. For more information on CS flanges and anti-corrosion coatings, please contact us at oudi-04@oudiguandao.com.

FAQ

1. What is the most durable anti-corrosion coating for CS flanges?

Hot-dip galvanizing is generally considered the most durable, providing protection for up to 50 years or more in many environments.

2. Can powder coating be applied over galvanized CS flanges?

Yes, powder coating can be applied over galvanized CS flanges for enhanced protection and aesthetics, but proper surface preparation is crucial.

3. How often should epoxy-coated CS flanges be inspected?

Epoxy-coated CS flanges should be inspected annually or more frequently in harsh environments to check for any signs of coating degradation.

4. Is black oxide treatment suitable for CS flanges in marine environments?

Black oxide treatment alone is not typically recommended for marine environments. More robust coatings like hot-dip galvanizing or epoxy systems are preferable.
