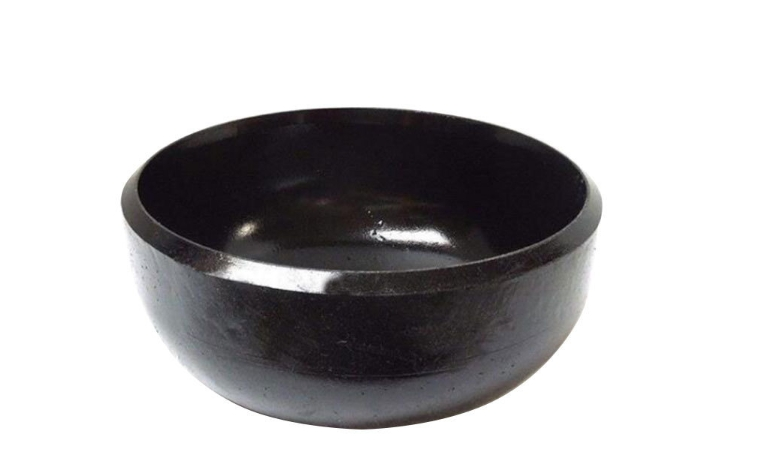

Understanding ASME B16.9 Standards for Carbon Steel Pipe Caps

Which Dimensions Matter When Checking Carbon Steel Pipe Caps?

Matching Size and Wall Thickness

Dimensional control is one of the most obvious parts of ASME B16.9 compliance. A pipe cap must have the same nominal pipe size and relevant wall thickness or schedule specification as the piping system.

Practically, inspectors may check the outer diameter, wall thickness, overall length, and other pertinent parameters against the appropriate B16.9 criteria and purchase specification. The specific measuring spots rely on the fitting geometry and the corresponding dimensions table. A measurement at just one position on the cap is not sufficient for a full conformance.

Special care should be taken with the wall thickness of carbon steel pipe caps, since the thickness distribution of a fitting may be changed by forming. A part may seem OK overall, but deeper examination may be needed if the wall thickness is out of the allowable range.

For installation crews dimensional accuracy is more than a paperwork problem. Inconsistent geometry of a cap might cause problems in fit-up, especially if the adjoining pipe has been prefabricated. Even a little discrepancy might cause extra alignment work, welding modifications, or expensive fabrication delays.

Why End Preparation and Geometry Matter?

The weld end of a pipe cap must also be acceptable for the proposed butt-welding connection. The form of the end impacts fit-up and preparation prior to welding, and the general shape affects how the component fits into the pipe.

This is especially true for prefabricated systems. The need for dimensional consistency is amplified when manufacturing a number of pipe sections far from the installation location, as the final assembly relies on the individual components fitting together as intended.

So a good producer requires more than just shaping equipment. The manufacturing process should involve enough dimensional inspection to ensure that discrepancies are found prior to the fittings being packaged and transported. Routine inspections may be made using calibrated measuring instruments, but if project constraints or component size so dictate, more sophisticated measurement equipment may be employed.

How Are Carbon Steel Pipe Caps Manufactured and Controlled?

From Material Preparation to Final Forming

Manufacturing quality begins before the cap is formed. The incoming material should be identifiable and traceable to the relevant material documentation so that the finished fitting can be linked to its original heat or batch information.

The forming method depends on the product design, material, size, and manufacturing route. During forming, temperature and deformation need to be controlled carefully because poor process control can contribute to cracking, excessive thinning, distortion, or other imperfections.

Heat treatment may also be required depending on the material specification and manufacturing process. It should not be presented as a universal requirement imposed solely by ASME B16.9; instead, the applicable material standard and project requirements need to be checked.

After forming and any required heat treatment, the fitting can proceed through dimensional inspection, surface examination, marking, and documentation review. The purpose of these controls is not simply to create a visually uniform product. They establish a traceable connection between the raw material, manufacturing process, finished dimensions, and inspection records.

Why Traceability Matters?

Traceability becomes especially important when fittings are purchased for large industrial projects. If a question arises about a delivered batch, the manufacturer should be able to identify the material used, the relevant heat number, production records, and applicable inspection results.

A material test certificate for carbon steel pipe caps can provide important evidence about the material designation and test results, but buyers should compare the certificate with the physical marking on the fitting rather than reviewing the document in isolation.

For example, the material identification, nominal size, wall thickness or schedule information, and manufacturer marking of carbon steel pipe caps should make sense when compared with the purchase order and supporting documentation. ASME B16.9 includes marking requirements for standard fittings, making product identification an important part of the overall compliance process.

What Inspection Should Buyers Expect?

Visual and Dimensional Inspection

Visual inspection is often the first practical check after delivery. The purpose is to identify obvious surface damage, cracks, deformation, corrosion, handling marks, or other conditions that could affect further fabrication.

Markings should also be reviewed during this stage. The current B16.9 framework includes permanent identification covering information such as manufacturer identification, material identification, size, and wall-thickness or schedule information, along with compliance marking.

Dimensional inspection then provides a more objective check. The fitting should be measured using calibrated equipment and compared with the applicable standard and purchase specification. The inspection should focus on the dimensions that matter for the actual connection rather than relying on a general visual impression.

Keeping inspection records is also valuable for project control. If several batches are delivered over time, consistent records make it easier to compare suppliers, investigate dimensional variation, and resolve questions before installation.

When Is Non-Destructive Testing Necessary?

NDT should be treated as a project- and specification-dependent requirement rather than something that every carbon steel pipe cap automatically needs under ASME B16.9.

Depending on the application, additional examination may include radiographic testing, ultrasonic testing, or magnetic particle inspection. RT can be used to evaluate certain internal discontinuities, while UT can provide information about internal conditions and material continuity. MPI is applicable to ferromagnetic materials and is commonly used to identify surface and near-surface discontinuities.

The appropriate method depends on factors such as the material, manufacturing route, service conditions, applicable material specification, piping code, purchaser requirements, and quality level required for the project. ASTM A234/A234M, for example, contains its own requirements for material and mechanical testing, while supplementary examination requirements can also be specified where a greater degree of examination is required.

This distinction is important for procurement because asking for “ASME B16.9 testing” without defining the actual inspection requirement can create confusion. A better purchasing specification identifies the applicable standard, material grade, inspection scope, and any additional NDT requirements separately.

What Should Buyers Verify Before Ordering?

Review the Complete Specification, Not Just the Standard Number

A supplier stating that a pipe cap is “ASME B16.9” compliant does not, by itself, tell the buyer everything necessary to determine whether the product is suitable for a project.

The purchase specification should establish the required nominal size, wall thickness or schedule, material grade, quantity, applicable standards, testing requirements, marking requirements, and documentation. Service conditions should also be considered where they affect material selection or additional inspection.

This approach prevents a common procurement mistake: selecting a fitting because its dimensions appear correct while overlooking whether its material specification matches the piping system.

For projects involving ASTM A234 material, the buyer should also verify that the supplied documentation corresponds to the applicable edition and purchasing requirements. ASTM currently lists A234/A234M-26 as the active edition, while previous editions remain available for reference.

Check Markings Against the Documents

The physical fitting and the paperwork should tell the same story. If the MTC identifies one material grade while the product marking shows another designation, the discrepancy should be resolved before the fitting is released for installation.

The same principle applies to size and wall-thickness information. The purchase order, dimensional inspection report, MTC, and product marking should be consistent with one another.

This simple comparison can catch documentation mistakes before they become installation or traceability problems. It also provides a practical way for buyers to evaluate whether a manufacturer has a disciplined quality-control process rather than simply relying on a certificate of conformity.

Evaluate the Manufacturer's Production Capability

Supplier evaluation should go beyond asking whether the manufacturer has produced pipe fittings before. The more useful question is whether the manufacturer can repeatedly produce the required fittings while maintaining dimensional consistency and traceability.

For carbon steel pipe caps, this includes reviewing the manufacturer's forming capabilities, dimensional inspection process, material identification system, heat-treatment controls where applicable, and documentation practices. Experience with export projects can also be valuable because international orders often involve detailed specifications, third-party inspection, and strict document requirements.

A manufacturer with a structured production and inspection system can provide more useful technical evidence than a supplier that simply offers a standard product catalog. For OEMs, contractors, and distributors, this difference can have a direct effect on procurement risk.

Conclusion

Understanding ASME B16.9 is important when specifying and purchasing carbon steel pipe caps, but the standard should be viewed as one part of a broader engineering and procurement framework. B16.9 provides a recognized basis for the dimensions, tolerances, ratings, testing, and markings of factory-made wrought buttwelding fittings, helping manufacturers and buyers work from a consistent reference.

Material selection must then be considered separately through the applicable material specification, such as ASTM A234/A234M where appropriate. Inspection requirements should likewise be determined from the combined requirements of the material standard, piping code, project specification, service conditions, and purchaser requirements rather than assuming that every inspection method applies to every fitting.

For buyers, the most reliable approach is to compare the product marking, dimensions, material documentation, inspection records, and purchase specification as one connected set of information. Doing so provides a clearer picture of whether the supplied fitting is appropriate for the intended piping system and helps reduce avoidable problems during fabrication and installation.

Choose Cangzhou Oudi for reliable carbon steel pipe fittings

Cangzhou Oudi Pipe Manufacture Co., Ltd. focuses on the production of carbon steel pipe fittings, valves, and flanges for industrial applications. Its location in Mengcun Hui Autonomous County places the company within a well-known Chinese pipe-fitting manufacturing area, providing access to established industrial supply chains and export logistics.

For buyers sourcing carbon steel pipe caps, supplier capability should be evaluated through practical factors such as production experience, dimensional control, material traceability, inspection procedures, and the ability to prepare documentation according to project requirements. These factors are more meaningful than simply relying on a standard designation printed on a quotation.

Oudi can support customers who need carbon steel fittings for different engineering applications, including projects where dimensional requirements, material specifications, inspection documentation, and customized purchasing conditions need to be coordinated. For projects involving ASME B16.9 requirements, the most effective approach is to provide the manufacturer with the required size, wall thickness or schedule, material grade, applicable standards, inspection scope, and documentation requirements at the quotation stage.

By reviewing these details before production begins, both the supplier and buyer can establish a clearer technical basis for the order and reduce the possibility of discrepancies during delivery or installation. For carbon steel pipe caps and other butt-welding fittings, that level of communication can make the difference between a straightforward procurement process and costly corrective work later.

Our commitment to quality is evident in our ISO9001:2000 certification and strict quality control measures. For inquiries or more information about our carbon steel pipe caps and other products, please contact us at oudi-04@oudiguandao.com.
