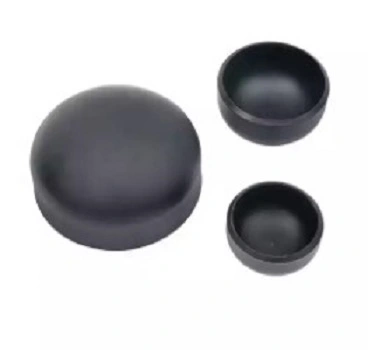

Why Use a Schedule 40 Pipe Cap in Piping Systems

A pipe cap is a simple component, but its role becomes important whenever a piping system needs a reliable closure at the end of a line. In water distribution, process piping, HVAC installations, and industrial systems, the cap prevents the open end of a pipe from allowing fluid to escape or contaminants to enter. Schedule 40 pipe caps are commonly specified when the connected piping uses Schedule 40 dimensions, but the term should be understood correctly: Schedule 40 describes a pipe wall-thickness series rather than a universal pressure rating. An actual cap's performance relies on the material, size, manufacturing standard, type of connection, temperature, pressure, and the needs of the whole pipe system's design. So picking a cap is more than just locating a component with the correct nominal size for engineers and buying teams. The cap should be compatible with the pipe geometry and connecting technique, and the material and manufacturing standard shall be adequate for the intended service. For steel pipe, standards such as ASME B16.9 and ASME B16.11 may be applicable, depending on the kind of fitting and the terminal connection. For example, wrought carbon steel and alloy steel fittings for pressure pipe and pressure-vessel applications at moderate and increased temperatures are covered by ASTM A234/A234M. These features are the reasons why a correctly chosen Schedule 40 cap may be an effective means of sealing unused, temporary, or permanent pipe ends without adding unwarranted complication to the piping arrangement.

What Makes Schedule 40 Pipe Caps Useful in Piping Systems?

Reliable Closure for Open Pipe Ends

A pipe cap is used to cap the end of a pipe. This function is especially beneficial when a branch, a pipeline segment, an equipment connection, or a future expansion need not be kept open. If correctly attached, the cap gives a clear end point and helps to avoid fluid loss from the unused end.

This is not the function of a valve. A cap does not actively regulate flow and should not be called a flow-control device. But it gives a definite close. After the cap is placed using the stated connection technique, the pipe end is closed until the fitting is purposefully removed or cut off.

This basic feature may also allow for a simpler plumbing configuration for maintenance crews. A disused line may be physically separated at its termination rather than being left exposed, resulting in less potential for accidental discharge or dirt and debris entrance. In systems where cleanliness is important, sealing an open pipe end may also assist in protecting the internal piping during storage, installation, or periods of inactivity.

Compatibility With Common Schedule 40 Piping

One of the reasons why Schedule 40 pipe caps are so popular for use in pipeline projects is that they may be used with pipe systems that are made to the same nominal size and dimensional criteria. But the crucial thing is the cap must be chosen based on real pipe specifications, not only matching the phrase “Schedule 40.”

For example, a nominal pipe size defines the pipe within the applicable dimensional system, whereas Schedule 40 designates a specific wall-thickness series for several typical pipe sizes. Therefore, while choosing a fitting to mate, the outer diameter and wall thickness must be verified with the appropriate standard.

This difference becomes especially relevant in procurement of components from several providers. A cap may be nominally sized correctly but still has to be checked for dimensions, end preparation, material grade, or manufacture standard. Make sure you verify these facts before installation. You wouldn’t want to have mismatched parts.

A Practical Solution for Industrial and Building Services

Schedule 40 pipe is used in a number of different applications, including building water systems, compressed-air lines, HVAC installations, utility piping, and some industrial services. A proper pipe cap may consequently be utilized in a number of applications, such as sealing an unneeded line or terminating a pipe segment during system change.

The right application will depend on the material of the cap and the kind of connection. It should not be assumed that a steel cap meant for industrial pipework is a ready substitute for a PVC cap used in domestic plumbing. The proper option is dependent on the working environment, the fluid, the temperature, the pressure, the connecting technique, and the code that applies.

So, the significance of a Schedule 40 cap is not only that it is “versatile.” The major benefit is that it may be described as part of a fully defined pipe system where the dimensions, material, and connecting technique are known and regulated.

How Do Schedule 40 Pipe Caps Support Piping System Reliability?

Proper End Closure Helps Reduce Leakage Risks

A pipe end is a potential leakage point if it is not properly closed. Using a fitting designed for the relevant pipe size and connection method provides a controlled termination rather than relying on improvised closures.

The effectiveness of the closure depends heavily on installation quality. For welded caps, the weld must meet the applicable project and piping requirements. For threaded or socket-weld fittings, the connection must be prepared and installed according to the relevant specification and manufacturer's requirements. A cap with suitable material and dimensions can still perform poorly if the connection is incorrectly prepared.

This is why procurement and installation should be considered together. Selecting a cap only by nominal diameter does not guarantee a reliable joint. Engineers should also confirm the end type, wall thickness or fitting class, material specification, and service conditions before the component is released for installation.

Material Selection Affects Service Life

The material of Schedule 40 pipe caps plays a major role in how they perform in service. Carbon steel may be appropriate for many general industrial applications, while stainless steel can be selected when greater resistance to specific corrosive environments is required. Other materials may be appropriate for water, chemical, or specialized applications depending on the operating conditions.

For steel fittings used in pressure piping, material standards provide a more meaningful basis for specification than a general statement that the product is “strong.” ASTM A234/A234M covers wrought carbon steel and alloy steel fittings for moderate and high-temperature service, while ASTM A960/A960M establishes common requirements for several categories of wrought steel piping fittings and includes requirements related to chemical analysis and mechanical testing.

The correct material therefore needs to be evaluated against the fluid, operating temperature, pressure, corrosion environment, and applicable project specification. A cap that performs well in a clean-water application may not be appropriate for a chemical process simply because the dimensions are identical.

The Cap Should Be Considered as Part of the Complete Piping Assembly

A pipe cap does not operate independently of the pipe around it. Its performance depends on the connected pipe, the joint, and the design conditions of the system. This is particularly important in pressurized applications, where loads can be transferred through the piping and connection.

For that reason, a Schedule 40 designation should never be treated as a guarantee that a particular cap is suitable for every Schedule 40 service. The design pressure and temperature limits must be established from the applicable material and fitting standard, product specification, and piping code.

This approach also avoids a common purchasing mistake: assuming that two fittings with the same nominal size and schedule designation are automatically interchangeable. They may differ in material, end preparation, dimensions, manufacturing standard, or pressure classification.

What Should Engineers Check Before Selecting Schedule 40 Pipe Caps?

Confirm the Nominal Pipe Size and Actual Dimensions

The first step is to identify the nominal pipe size and confirm the dimensional requirements of the pipe and cap. Nominal size is not simply the measured outside diameter, so relying only on a tape measure reading can result in an incorrect selection.

The cap should correspond to the pipe's applicable dimensional standard and connection method. For projects involving welded steel fittings, ASME B16.9 is an important reference for factory-made wrought buttwelding fittings. ASME B16.9 covers dimensions, tolerances, and related requirements for this category of fittings.

Where the project uses threaded or socket-weld forged fittings, ASME B16.11 is the more relevant standard. Its scope includes forged socket-welding and threaded fittings, including caps, and addresses areas such as pressure ratings, size, type, material, marking, and dimensions.

Checking the applicable standard before ordering makes the specification much clearer and reduces the risk of receiving a component that looks correct but does not meet the project requirements.

Match the Material to the Service Environment

Material selection should be based on actual operating conditions rather than general assumptions about durability. For a carbon steel piping system, a carbon steel cap with the appropriate material specification may be a logical choice. In environments where corrosion resistance is a major concern, stainless steel or another suitable alloy may be considered.

The fluid itself is also important. Water, steam, compressed air, hydrocarbons, and chemical solutions can impose very different requirements on the piping material. Temperature can further affect mechanical performance and corrosion behavior.

For this reason, procurement documents should identify the required material grade wherever possible instead of specifying only “steel pipe cap,” including Schedule 40 pipe caps where applicable. For regulated or critical applications, the purchaser may also require material certificates, heat numbers, inspection records, or test documentation. ASTM specifications for steel fittings can include chemical, mechanical, and hydrostatic testing requirements depending on the applicable product specification.

Select the Appropriate Connection Type

Not every pipe cap connects to a pipe in the same way. Butt-weld caps are used with welding-end piping and are common in industrial process systems. Threaded caps are suitable for systems designed around threaded connections, while socket-weld caps are used with compatible socket-weld piping arrangements.

The connection method affects installation, maintenance, inspection, and the overall design of the joint. A welded cap may provide a permanent closure, while a threaded cap can be removed more easily when future access is required. The choice should therefore reflect not only the pipe material but also whether the line is intended to be permanently closed or may need modification later.

ASME B16.11 specifically distinguishes between threaded and socket-weld forged fittings and provides separate requirements for these connection types.

Verify Pressure and Temperature Requirements Separately From Schedule

One of the most important corrections to the original understanding of Schedule 40 is that Schedule 40 itself should not be treated as the complete pressure specification. The fitting's allowable service conditions depend on the relevant standard, material, dimensions, connection type, temperature, and design basis.

For example, increasing temperature can affect the allowable pressure of a material or fitting. Similarly, the pressure capability of a threaded fitting is not necessarily determined in the same way as that of a buttwelding fitting. ASME B16.11, for instance, uses pressure classes for forged threaded and socket-weld fittings.

Therefore, engineers should compare the cap's documented pressure and temperature requirements with the maximum design conditions of the piping system instead of assuming that “Schedule 40” alone establishes suitability.

How Does Proper Selection Improve Project Efficiency?

Fewer Mismatched Components During Installation

Good specification work can prevent problems before the fittings reach the job site. When the purchase order clearly identifies size, material, connection type, standard, and other required documentation, installers have a much better basis for checking incoming components.

This matters on industrial projects where a large number of fittings may be purchased for the same piping package. A mismatch discovered during installation can cause additional inspection, replacement, welding, or schedule delays. Confirming the cap specification during procurement is usually easier than correcting an unsuitable fitting after fabrication has started.

For OEMs, contractors, and distributors, standardized specifications also make inventory management easier because the purpose and compatibility of each fitting are clearly defined.

Easier Maintenance and Future Modification

The best closure method depends partly on what will happen to the pipe in the future. A permanently welded cap may be appropriate when the line is intended to remain closed, while a removable connection can be more practical when future access or extension is expected.

This consideration is particularly useful in process plants and building services, where piping layouts can change as equipment is added or removed. Selecting the appropriate cap from the beginning can make later modification less disruptive.

The cap should therefore be viewed not merely as an inexpensive end fitting but as part of the project's maintenance and modification strategy.

Better Control of Procurement Quality

For B2B buyers, product quality is not determined only by appearance. Dimensional conformity, material traceability, manufacturing standards, surface condition, marking, and inspection documentation can all matter depending on the application.

For steel fittings used in pressure service, applicable ASTM and ASME requirements provide a stronger framework for quality control than generic claims such as “high strength” or “long service life.” ASTM A960/A960M, for example, includes common requirements covering areas such as chemical analysis and mechanical testing for relevant wrought steel fitting specifications.

A supplier that can clearly provide the required technical documents, material information, inspection records, and dimensional data gives the purchaser a much stronger basis for evaluating whether the fitting is appropriate for the project.

Conclusion

Schedule 40 pipe caps are used primarily to provide a controlled closure at the end of compatible piping, making them useful in water systems, building services, industrial piping, and other applications where an open pipe end needs to be sealed. Their value comes from providing a properly specified termination rather than from acting as a flow-control, insulation, or independent corrosion-protection device.

The most important point is that Schedule 40 should be treated as a dimensional wall-thickness designation, not as a standalone pressure rating. Engineers and buyers should evaluate the nominal pipe size, material, connection type, applicable manufacturing standard, operating pressure, operating temperature, and service environment together. For steel fittings, standards such as ASME B16.9, ASME B16.11, and applicable ASTM material specifications provide a more reliable basis for product selection.

When these factors are confirmed before purchasing, Schedule 40 pipe caps can provide a dependable and practical solution for closing piping ends while supporting consistent installation, inspection, maintenance, and long-term project performance.
