A234 WPB vs WPC: Understanding Strength and Ductility

When it comes to selecting pipe fittings for industrial purposes, it is essential to have a thorough awareness of the distinctions between ASTM A234 WPB fittings and WPC grades in order to ensure the success of the project. WPB fittings manufactured according to ASTM A234 have a moderate strength and outstanding weldability, making them a suitable choice for general industrial applications. The WPC grade has greater strength than the WPB grade, however it has a lower ductility profile. In the petroleum, chemical, and power generation industries, both grades are used for different purposes. The selection of the material is determined by the unique pressure requirements and operating circumstances of the industry.

Chemical Composition Analysis: Foundation of Performance Differences

These two grades of WPB and WPC are fundamentally different from one another due to the fact that their chemical compositions are different. Engineers are able to make more educated judgments for their individual applications when they have a better understanding of these variables.

Three core compositional differences:

1. Carbon content variation: WPB contains 0.30% maximum carbon, while WPC allows up to 0.35%
2. Manganese levels: WPC typically requires higher manganese content for enhanced strength
3. Silicon and phosphorus limits: Both maintain similar trace element restrictions for quality assurance

The reduced carbon content that is maintained by the WPB grade results in improved ductility and makes manufacture with less difficulty. Because of its lower carbon percentage, it possesses superior cold-forming characteristics, which makes it the material of choice for the production of complex ASTM A234 WPB fittings such as elbows and tees.

For the purpose of achieving improved tensile strength, WPC grade adds higher carbon content where possible. Because of its composition, it is appropriate for use in high-pressure applications, which place a higher emphasis on strength relative to formability.

It is recommended that you use WPB grade fittings for standard pressure applications that involve complex geometries because they provide the best possible balance.

In the event that you require the highest possible strength for high-pressure systems, then the WPC grade offers exceptionally high performance.

Mechanical Properties Comparison: Strength vs Ductility Trade-offs

Mechanical properties reveal the practical differences between these carbon steel grades. Test data from certified laboratories shows distinct performance characteristics for each grade.

Property	WPB Grade	WPC Grade	Test Method
Tensile Strength	415-585 MPa	485-655 MPa	ASTM A370
Yield Strength	240 MPa min	275 MPa min	ASTM A370
Elongation	22% min	20% min	ASTM A370
Hardness	187 HB max	197 HB max	ASTM E18

At a minimum of 22%, WPB exhibits outstanding elongation qualities, which indicates that it is superior in terms of ductility for purposes of forming operations. When it comes to applications that require narrow radius bending, ASTM A234 WPB elbows are particularly well-suited because of this property.

The tensile strength of WPC is higher, ranging from 485 to 655 MPa, which results in an increased load-bearing capacity offered by the material. With a minimum yield strength of 275 MPa, the enhanced yield strength guarantees dependable performance even in the most difficult conditions.

The results of impact resistance testing indicate that WPB maintains higher toughness at low temperatures, which is why it is favored for use in outdoor installations in temperature-sensitive environments.

Fittings made of WPB grade offer great impact resistance, making them an excellent choice for use in areas with low temperatures.

In the event that you want the highest possible load-bearing capacity, the WPC grade will provide you with enhanced strength qualities.

Manufacturing and Welding Considerations

Production methods and welding requirements differ significantly between WPB and WPC grades. These factors directly impact project costs and installation timelines.

Manufacturing process variations include:

1. Heat treatment requirements: WPC often needs additional stress relief operations
2. Forming limitations: WPB allows more aggressive forming operations
3. Machining characteristics: Different cutting speeds and tool requirements
4. Quality control standards: Both require identical inspection procedures

The ASTM A234 WPB fittings grade provides great weldability while minimising the amount of preheat that is required. Welding processes that are considered standard are successful and do not require sophisticated heat treatments, which results in significant cost savings during installation.

It is possible that thick parts of WPC grade will require preheating in order to prevent cracking. Because of the increased carbon content, welding parameter management needs to be more rigorous. This is especially true for ASTM A234 WPB carbon steel fittings that are used in applications that are considered critical.

When it comes to WPC installations, stress relief concerns become very crucial, particularly in operating conditions that involve high temperatures. The post-weld heat treatment that is normally required for WPB is typically less, which simplifies the field installation operations.

The WPB grade simplifies construction timelines and is ideal for situations in which rapid installation with minimal welding complexity is required at the same time.

WPC grade offers consistent performance, which is particularly useful if you require fittings that keep their strength after being welded.
In the event that you want the highest possible load-bearing capacity, the WPC grade will provide you with enhanced strength qualities.

Industry Applications and Performance Standards

Different industries favor specific grades based on operational requirements and safety standards. Understanding these preferences helps optimize material selection for specific projects.

Oil and gas industry applications:

• Upstream operations: WPB preferred for gathering systems and processing facilities
• Downstream refineries: WPC selected for high-pressure hydrogen service
• Pipeline systems: Grade selection based on operating pressure and temperature

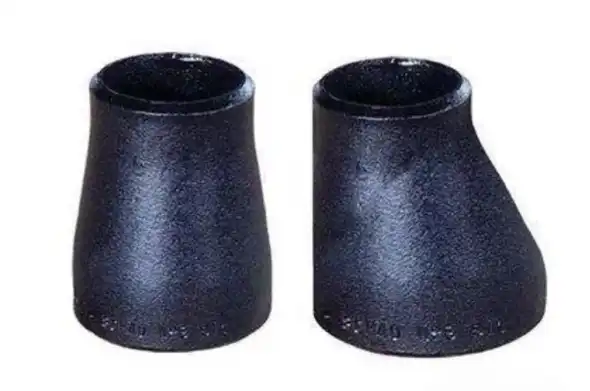

Chemical processing requirements often favor WPB for corrosive environments where ductility prevents stress corrosion cracking. The enhanced formability allows for complex ASTM A234 WPB tees and reducers in tight spaces.

Power generation facilities frequently specify WPC for high-pressure steam systems. The increased strength handles thermal cycling and pressure fluctuations effectively.

Water treatment plants utilize WPB grade for its corrosion resistance and ease of maintenance. The superior weldability simplifies field repairs and modifications.

If you need fittings for corrosive chemical environments, then WPB grade provides better stress corrosion resistance.

If you need components for high-pressure steam systems, then WPC grade ensures reliable long-term performance.

Cost Analysis and Economic Factors

Economic considerations play a crucial role in grade selection, affecting both initial investment and long-term operational costs.

Cost comparison factors:

1. Raw material pricing: WPC typically costs 8-12% more than WPB
2. Manufacturing complexity: WPB requires less processing time
3. Installation expenses: WPB reduces field labor costs
4. Maintenance requirements: Both grades offer similar service life

WPB grade provides cost advantages through simplified processing and installation. The excellent formability reduces manufacturing time for complex ASTM A234 WPB fittings, lowering production costs.

WPC grade justifies higher initial costs through enhanced performance in demanding applications. The increased strength may allow thinner wall sections, potentially offsetting material cost premiums.

Life cycle analysis shows both grades offer similar service life under appropriate conditions. Proper grade selection based on actual requirements prevents over-specification costs.

Quality certification requirements remain identical for both grades, ensuring compliance with international standards like ISO 9001 and pressure vessel codes.

If you need cost-effective solutions for standard applications, then WPB grade optimizes project economics.

If you need maximum performance justifying premium costs, then WPC grade delivers superior value.

Oudi's ASTM A234 WPB Fittings Advantages

As a leading manufacturer with over 25 years of experience, Oudi delivers exceptional carbon steel pipe fittings that meet the demanding requirements of global industries. Our comprehensive quality management system and advanced production capabilities ensure reliable performance across diverse applications.

Manufacturing Excellence:

• ISO 9001:2000 certified quality management system ensuring consistent product quality
• Special equipment manufacturing license from the People's Republic of China
• Annual production capacity of 16,000 tons supporting large-scale projects
• Advanced production equipment enabling precise dimensional control

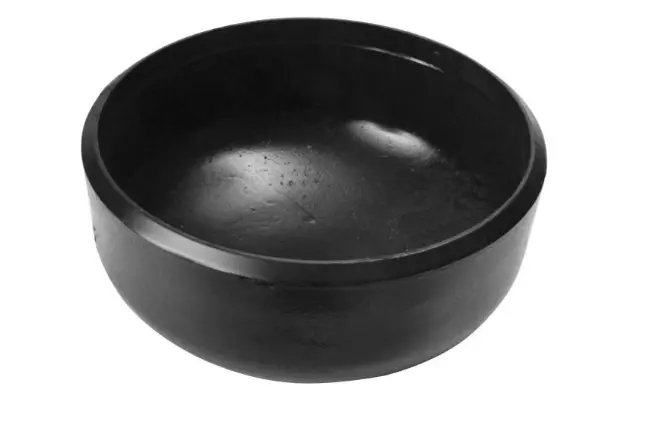

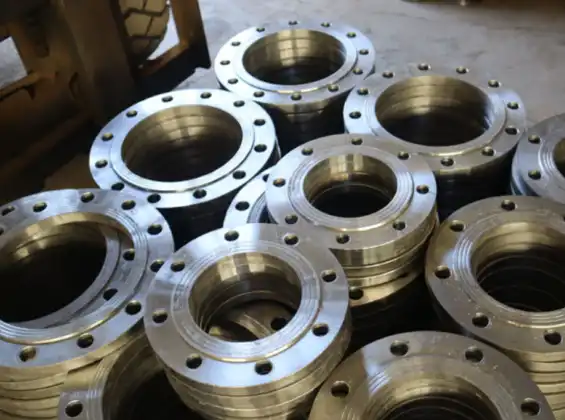

• Comprehensive range including bends, flanges, tees, reducers, and caps

Quality Assurance:

• Full inspection system from raw material receipt to finished product delivery
• Nondestructive testing capabilities including ultrasonic and radiographic examination
• Advanced detection equipment meeting international testing requirements
• Strict adherence to ANSI, JIS, DIN, and BS standards
• Complete material traceability for all carbon steel, stainless steel, and alloy steel products

Technical Capabilities:

• Expertise in American, Japanese, German, and British standard specifications
• Advanced forming technology for complex geometries and tight tolerances
• Heat treatment facilities for optimized mechanical properties
• Custom engineering support for specialized applications
• Comprehensive testing laboratory for material verification

Global Service Network:

• Export experience serving over 300 customers across 40+ countries
• Established presence in Europe, Americas, Africa, Southeast Asia, and Middle East
• Self-managed import/export operations ensuring efficient logistics
• Technical support in multiple languages and time zones
• Local distribution partnerships in key markets

Cost Effectiveness:

• Competitive pricing through efficient manufacturing processes
• Reduced total cost of ownership through superior quality and reliability
• Flexible order quantities accommodating both large projects and maintenance requirements
• Streamlined supply chain reducing lead times and inventory costs
• Value engineering support optimizing material selection and specifications

Conclusion

When deciding between A234 WPB and WPC grades, it is important to strike a balance between the requirements for strength and the requirements for ductility. WPC provides greater strength for high-pressure systems, whilst WPB offers superior formability and weldability for general industrial applications. Both materials are used in the manufacturing industry. By gaining an understanding of the similarities and differences in chemical composition, mechanical qualities, and application-specific needs, one can select the most appropriate material. The reliability of performance across the petroleum, chemical, and power generation industries is ensured by the fact that both grades are able to meet stringent industry standards when they are properly specified and supplied by certified suppliers such as Oudi.

Contact Oudi for Premium ASTM A234 WPB Fittings Solutions

Oudi stands as your trusted ASTM A234 WPB fittings manufacturer, combining decades of manufacturing expertise with cutting-edge production technology. Our comprehensive product range and global service network ensure reliable solutions for your most demanding industrial applications. Whether you need standard pipe fittings or custom-engineered components, our team provides expert technical support and competitive pricing. Contact our specialists at oudi-04@oudiguandao.com to discuss your specific requirements and discover how our quality-certified products can enhance your project success.

References

1. American Society for Testing and Materials. "Standard Specification for Piping Fittings of Wrought Carbon Steel and Alloy Steel for Moderate and High Temperature Service." ASTM A234/A234M-21.

2. Harvey, J.F. "Theory and Design of Pressure Vessels." Second Edition, Van Nostrand Reinhold Company, 1991.

3. Becht Engineering Company. "Piping and Pipeline Engineering: Design, Construction, Maintenance, Integrity, and Repair." ASME Press, 2004.

4. Mohitpour, M., Golshan, H., and Murray, A. "Pipeline Design and Construction: A Practical Approach." Third Edition, ASME Press, 2007.

5. Singh, K.P. and Soler, A.I. "Mechanical Design of Heat Exchangers and Pressure Vessel Components." Arcturus Publishers, 1984.

6. Escoe, A.K. "Piping and Pipelines: Assessment Guide." Gulf Professional Publishing, 2006.
