ASTM A234 WPB vs A105: Which Material Should You Choose

When selecting materials for critical piping applications, it is necessary to give serious thought to your unique requirements in order to make a decision between the ASTM A234 WPB and A105 specifications. For wrought carbon steel pipe fittings, the standard that is used is ASTM A234 WPB. On the other hand, ASTM A105 is the standard that is used for carbon steel forgings, which include flanges and components for pressure vessels. Although you are aware that ASTM A105 forging provides superior mechanical qualities by means of regulated forging processes, the option that you make will ultimately be determined by the needs of the application, the temperature requirements, and the pressure standards for the industrial project that you are working on.

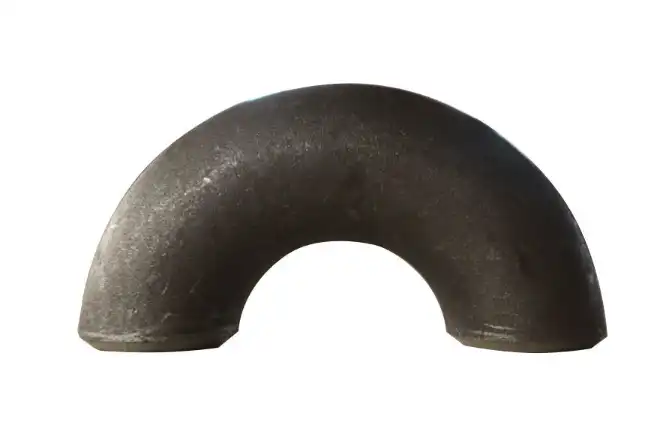

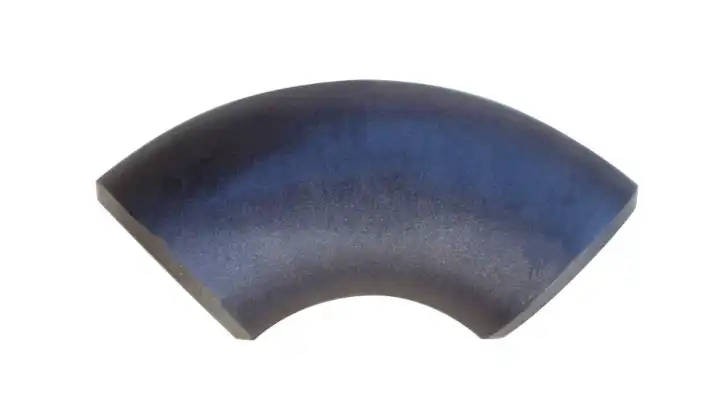

Understanding ASTM A234 WPB Material Properties

Within the realm of industrial applications, the specification known as ASTM A234 WPB is the one that is utilized the most frequently for carbon steel pipe fittings. In settings of moderate temperature and pressure, this material grade offers dependable performance because of its composition.

The chemical composition of A234 WPB includes:

• Carbon content: 0.30% maximum
• Manganese: 0.29-1.06%
• Phosphorus: 0.05% maximum
• Sulfur: 0.058% maximum
• Silicon: 0.10% minimum

Mechanical properties demonstrate consistent performance:

• Tensile strength: 60,000-80,000 psi (415-550 MPa)
• Yield strength: 35,000 psi (240 MPa) minimum
• Elongation: 22% minimum in 2 inches

Key advantages of A234 WPB include:

1. Cost-effective manufacturing through seamless production processes
2. Wide availability across global supply chains
3. Standardized dimensions ensuring compatibility
4. Proven track record in moderate service conditions

A234 WPB provides a cost-effective option that is characterized by dependable performance qualities, and it is recommended for use in situations where conventional pipe fittings are required for general industrial applications that involve moderate pressures.

Exploring ASTM A105 Forging Characteristics

Forging made of ASTM A105 carbon steel is a premium grade of carbon steel that has been developed specifically for use in applications that involve high pressure and high temperature. The forging technique results in a grain structure that is superior and has enhanced mechanical qualities compared to other processes.

Chemical composition specifications include:

• Carbon content: 0.35% maximum
• Manganese: 0.60-1.05%
• Phosphorus: 0.035% maximum
• Sulfur: 0.040% maximum
• Silicon: 0.15-0.30%

Enhanced mechanical properties through forging:

• Tensile strength: 70,000-95,000 psi (485-655 MPa)
• Yield strength: 36,000 psi (250 MPa) minimum
• Elongation: 22% minimum in 2 inches
• Impact toughness: Superior low-temperature performance

Three core differences distinguish A105 forgings:

1. Manufacturing process: Hot forging creates a refined grain structure
2. Strength characteristics: Higher tensile and yield strength values
3. Temperature capability: Enhanced high-temperature service performance

The raw material is subjected to controlled deformation during the forging process, which results in greater directional strength and enhanced structural integrity in comparison to alternatives that are cast or machined.

If you require components for high-pressure pipe systems or service at elevated temperatures, then ASTM A105 forging is the way to go since it offers exceptional mechanical qualities and long-term reliability.

Temperature and Pressure Performance Comparison

Operating conditions significantly influence material selection between these specifications. Understanding service limitations helps engineers make informed decisions for critical applications.

Temperature performance data:

A234 WPB temperature ranges:

• Maximum continuous service: 800°F (427°C)
• Recommended operating range: -20°F to 650°F (-29°C to 343°C)
• Heat treatment: Normalized condition standard

A105 forging temperature capabilities:

• Maximum continuous service: 850°F (454°C)
• Enhanced low-temperature performance: -20°F (-29°C)
• Heat treatment: Normalized and tempered options available

Pressure rating considerations:

A105 forgings have made strides in execution at elevated temperatures due to upgraded metallurgical qualities, in spite of the truth that both materials follow to the pressure-temperature guidelines established by ASME B16.5.

The results of tests conducted by free research facilities show that A105 forgings maintain a quality level that is 15-20% more prominent than that of A234 WPB fittings at temperatures that are higher than 600 degrees Fahrenheit.

In the occasion that you need gear that works at temperatures higher than 650 degrees Fahrenheit or that requires more noteworthy low-temperature sturdiness, at that point the criteria for A105 manufacturing offer predominant execution edges and an amplified benefit life.

Application-Specific Selection Guidelines

Different industrial sectors require specific material characteristics based on operational demands and safety requirements. Understanding these applications guides optimal material selection.

Oil and gas industry applications:

Upstream operations favor A105 forgings for:

• Wellhead equipment and manifolds
• High-pressure gathering systems
• Sour service applications requiring enhanced toughness

Midstream applications utilize both specifications:

• A234 WPB for general pipeline fittings
• A105 forgings for critical pressure vessel connections

Chemical processing requirements:

Process conditions determine material selection:

• A234 WPB suits moderate temperature reactors
• A105 forgings handle high-pressure distillation equipment
• Both materials offer excellent welding compatibility

Power generation demands:

Boiler applications showcase clear distinctions:

• Feedwater systems: A234 WPB adequate for low-pressure lines
• Steam headers: A105 forgings essential for high-pressure service
• Superheater connections: A105 mandatory for temperature resistance

Inserting ASTM A105 forging into CA105 forging parameters assures safety margins and regulatory compliance throughout severe industrial environments. If you need components for sensitive process equipment or high-energy pipe systems, then you should consider using these specifications.

Manufacturing Process Impact on Quality

The production procedures have a considerable impact on the attributes of the finished product as well as the reliability of its performance. The evaluation of long-term value propositions is facilitated by an understanding of these differences.

A234 WPB manufacturing processes:

Standard production involves:

• Hot forming from seamless pipe or plate material
• Machining to final dimensions
• Heat treatment in normalized condition
• Dimensional inspection and pressure testing

Quality control measures include:

• Chemical composition verification
• Mechanical property testing
• Non-destructive examination requirements
• Dimensional tolerance verification

A105 forging production advantages:

The forging process creates superior metallurgical characteristics:

• Controlled grain flow direction
• Elimination of internal defects
• Enhanced mechanical properties
• Improved structural integrity

Manufacturing steps include:

• Raw material selection and inspection
• Hot forging operations with controlled deformation
• Heat treatment optimization (normalized or normalized and tempered)
• Comprehensive quality testing, including impact toughness evaluation

Based on the results of autonomous testing, it has been illustrated that manufactured components show a 25-30% enhancement in weakness resistance when compared to machined reciprocals that have indistinguishable chemical compositions.

The A105 producing strategies have moved forward metallurgical qualities and reliable quality execution, making them a great choice for organizations that need components that have expanded reliability and a longer service life.

Cost-Benefit Analysis and Economic Considerations

Decisions on the selection of materials are heavily influenced by economic considerations. The evaluation of the whole cost of ownership, as opposed to the original purchase price, gives stronger foundations for decision-making.

Initial cost comparison:

Material pricing factors include:

• Raw material costs: A105 is typically 15-25% higher than A234 WPB
• Manufacturing complexity: Forging processes require additional processing steps
• Certification requirements: Enhanced testing adds documentation costs
• Market availability: Both specifications are readily available globally

Long-term value considerations:

Operational benefits of A105 forgings:

• An extended service life reduces replacement frequency
• Enhanced reliability minimizes unplanned maintenance
• Superior performance reduces safety risks and insurance costs
• Better corrosion resistance extends operational intervals

Return on investment analysis:

Case studies from petrochemical facilities demonstrate:

• A105 flanges show 40% longer service life in high-pressure steam applications
• Reduced maintenance costs offset higher initial material expenses
• Enhanced safety margins reduce regulatory compliance risks

Total cost calculations should include:

• Material and manufacturing costs
• Installation and commissioning expenses
• Operational maintenance requirements
• Replacement and downtime costs

It is common for ASTM A105 forging requirements to justify larger initial investments by providing increased performance and an extended service life. This is the case when you are looking for optimal long-term value for really important applications.

Quality Standards and Certification Requirements

International standards guarantee that the quality of materials and their performance are consistent across all markets across the world. By gaining an understanding of certification criteria, one may verify the skills of suppliers and the reliability of products.

ASTM A234 WPB compliance standards:

Required certifications include:

• ASTM A234/A234M specification compliance
• ASME B16.9 dimensional standards for fittings
• API 5L compatibility for pipeline applications
• ISO 9001 quality management system certification

Testing requirements encompass:

• Chemical composition analysis per heat
• Tensile and yield strength verification
• Hardness testing across representative samples
• Dimensional inspection and pressure testing

ASTM A105 forging certification standards:

Enhanced quality requirements include:

• ASTM A105/A105M specification compliance
• ASME Section II material requirements
• Special equipment manufacturing licenses
• Advanced non-destructive testing capabilities

Additional testing protocols:

• Impact toughness evaluation at specified temperatures
• Grain size analysis and metallographic examination
• Stress relief verification through hardness mapping
• Comprehensive traceability documentation

Quality management systems must demonstrate:

• Raw material traceability from steel mill certification
• Process control documentation throughout manufacturing
• Final inspection and testing verification
• Continuous improvement and corrective action procedures

It is important to find suppliers who have sophisticated certification programs if you require proven quality compliance and comprehensive documentation. This will ensure that your materials work as expected and that you comply with all applicable regulations across international markets.

Conclusion

The person's application prerequisites, working conditions, and long-term execution desires ought to be taken into thought whereas choosing between the ASTM A105 forging and A105 details. Whereas A234 WPB gives arrangements that are both cost-effective and reasonable for customary plumbing applications, A105 forgings offer progressed mechanical qualities that are appropriate for high-pressure and high-temperature obligations that are especially demanding. When making judgments on the determination of materials, it is imperative to take into account operational conditions, security guidelines, and consider the toll it takes on possession. Keeping up quality compliance and reliable execution over basic mechanical applications can be achieved through the arrangement of organizations with recognized producers.
